9. STARTING MOTOR
9.1.7 Assembly
The assembly procedure is the reverse of the disas-
sembly procedure, but pay attention to the following
points:
(1) Grease application points
• Gears in the gear case
• Shift lever operating portion
• Pinion sliding portion
• Magnetic switch plunger sliding portion
Use the specified grease as below table at all points.

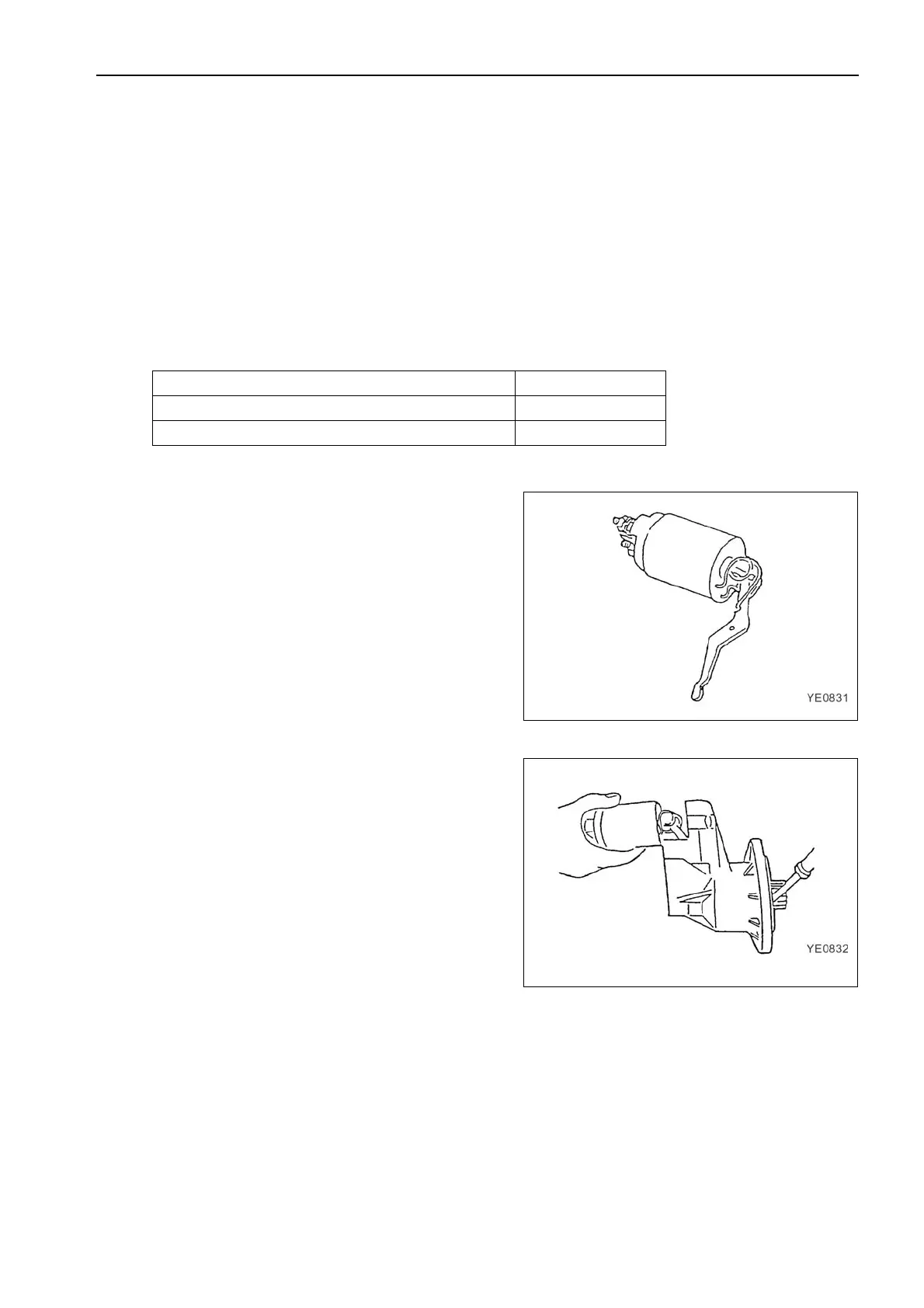

(2) Magnetic switch assembly
1) Install the shift lever on the magnetic switch
with the torsion spring in-between.
2) For installation on the gear case, install the
magnetic switch with the shift lever on the
gear case after pulling the pinion out. Fix
the magnetic switch by tightening a built-in
bolt M6. Do not forget to install the dust
cover (adjusting shim).
Pinion and magnetic switch plunger sliding portions NPCFG-6A
Gears MALTEMP SRL
Shift lever operating portion ALBANIA No.1
To Next Page
