82E-5 – 98E-5 SERIES 9-17
9. STARTING MOTOR
9.1.8 Characteristic test
Since the characteristics can be checked roughly by means of a simple no-load test as explained below.
Note: Complete the test quickly since the rating of the starting motor is 30 seconds.
(1) No-load test

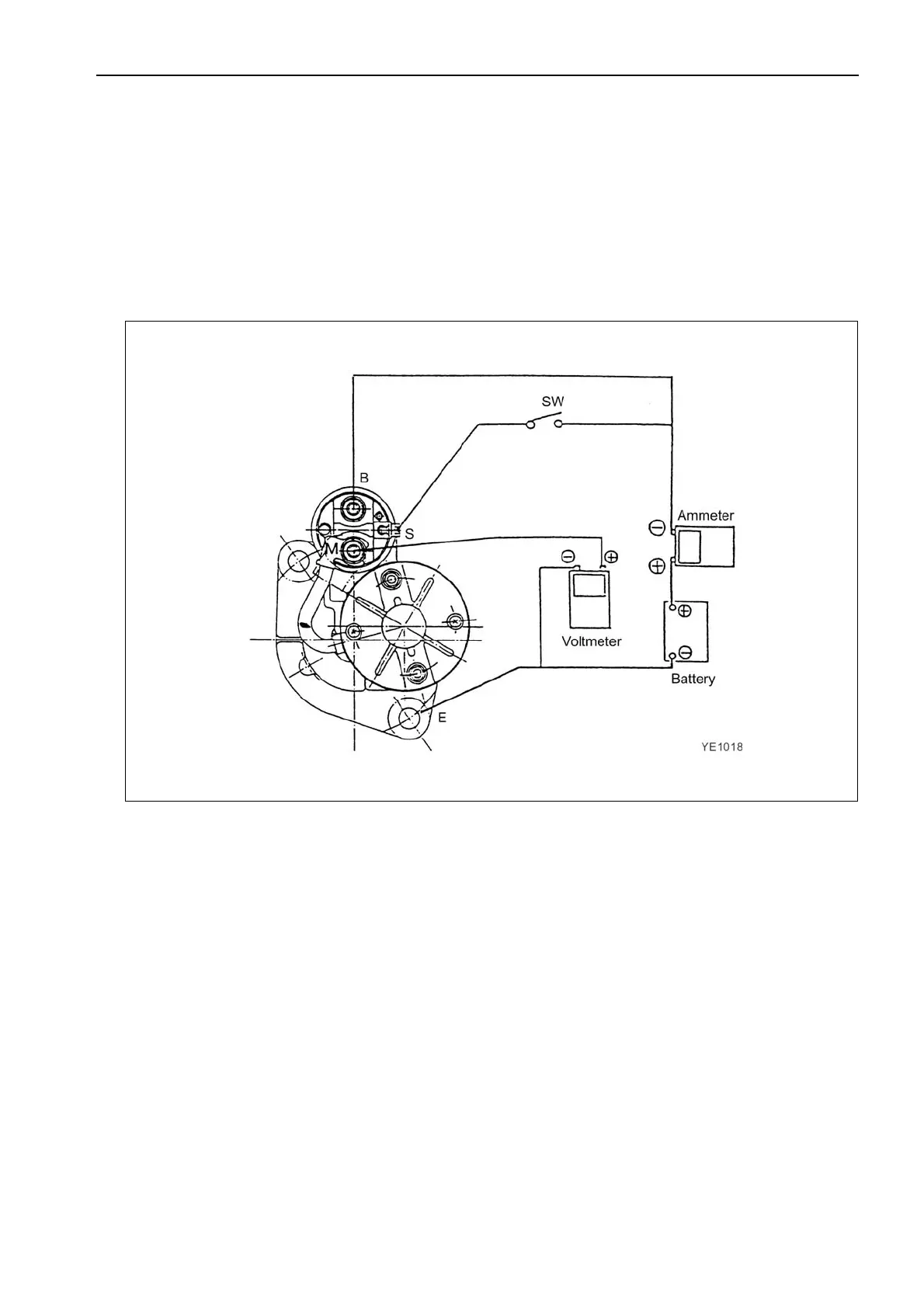

Fix the starting motor on a test bench and connect wiring as shown below. When the switch is closed, a cur-
rent flows in the starting motor, which is rotated at no-load. Measure the current, voltage and number of
revolutions then and check if they satisfy the specified characteristics.
