MAINTENANCE PLAN
167
4.7.9.e CHECKING THE OIL LEVEL IN THE SWING
REDUCTION GEAR
• As soon as the machine has been stopped the oil is very
hot; let it cool down until it reaches 40-45°C before carrying
out the check.

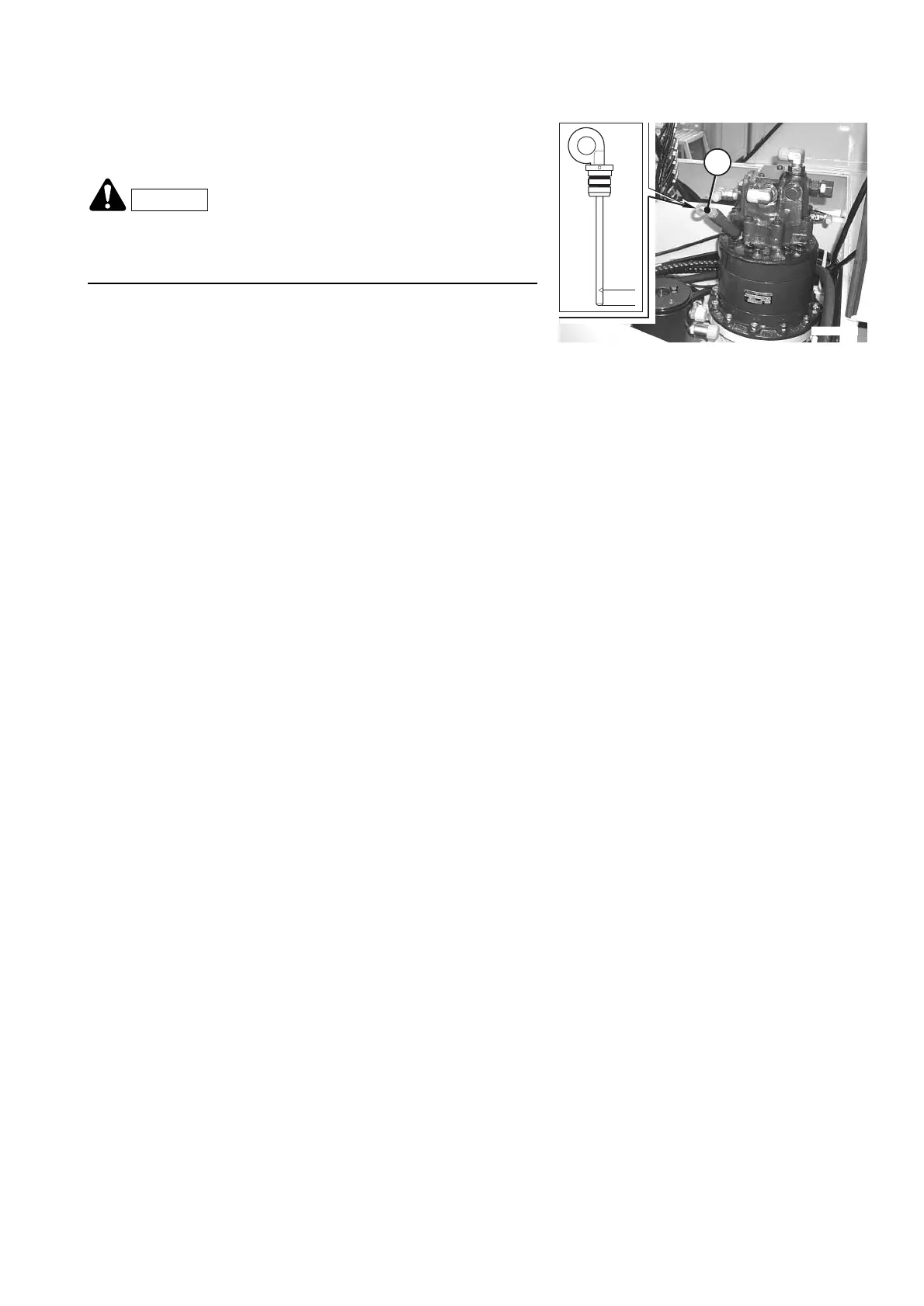

The oil level must be checked on the graduated dipstick (1) and
must be included between the MIN. and MAX. marks; if the level
is too near the MIN. mark, top up using the oil prescribed in the lu-
bricant chart. (See “4.3 FUEL, COOLANT AND LUBRICANTS”).
RWAA12210
1
MAX.
MIN.
