Komatsu PC110R-1 User Manual

PRECAUTIONS TO BE TAKEN WHEN WORKING
33

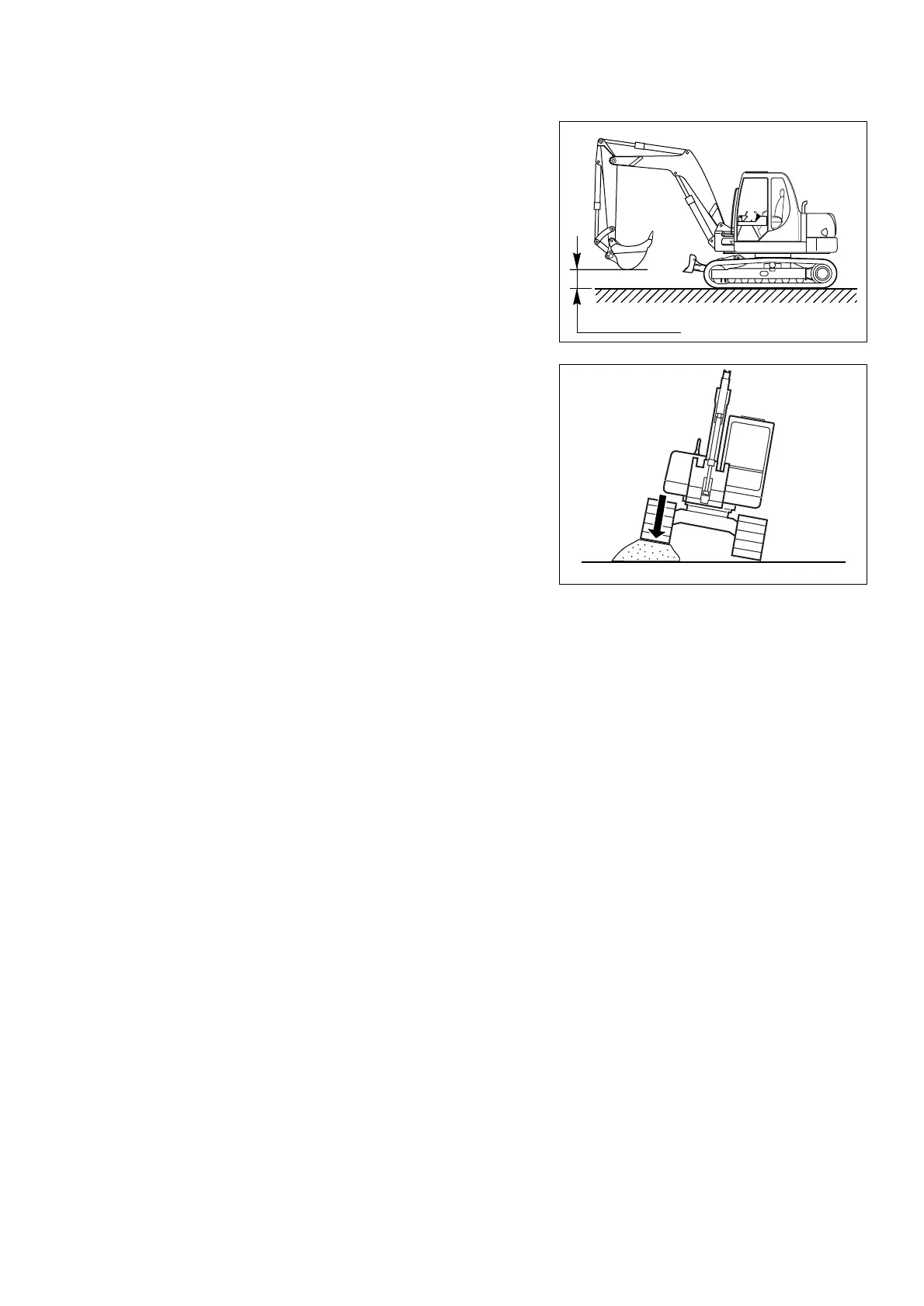

2.4.4 MOVING THE MACHINE
RYA14830
40÷50 cm
• When moving the machine, position the front bucket at about
40-50 cm from the ground; this position makes it possible to
evaluate the space required for the movements more precisely
and at the same time ensures the stability of the machine.
• Make sure that the cab on the upper structure is directed to-
wards the blade.
Otherwise, pay attention to the steering and advance manoeu-
vres, since they are inverted.
• If the equipment control levers must be used during travel, avoid
moving them abruptly; sudden manoeuvres change the attitude
of the machine and make driving difficult.
• When travelling on rough ground, keep the speed low and avoid
sudden movements of the bucket arm.
• If possible, avoid moving on obstacles.
If the machine has to travel over an obstacle, keep the equip-
ment as close to the ground as possible and travel at low speed.
Never move on obstacles that may incline the machine consid-
erably (over 10°).
• If one of the two tracks moves on an obstacle or gets into a hole
in the ground, the machine may overturn.
In these cases, reduce the speed to minimum and be very care-
ful to the balance of the machine.
