84
GUARDS AND DRIVER’S SEAT
3.5 GUARDS AND DRIVER’S SEAT
3.5.1 ENGINE HOOD
3.5.2 SIDE COVER
DANGER
• Do not open the engine hood when the engine is running.
• Do not use the machine without engine hood and do not
start the engine when the hood is open, unless this is ex-
pressly prescribed for certain maintenance operations.
• Non-compliance with these rules may cause serious acci-
dents.

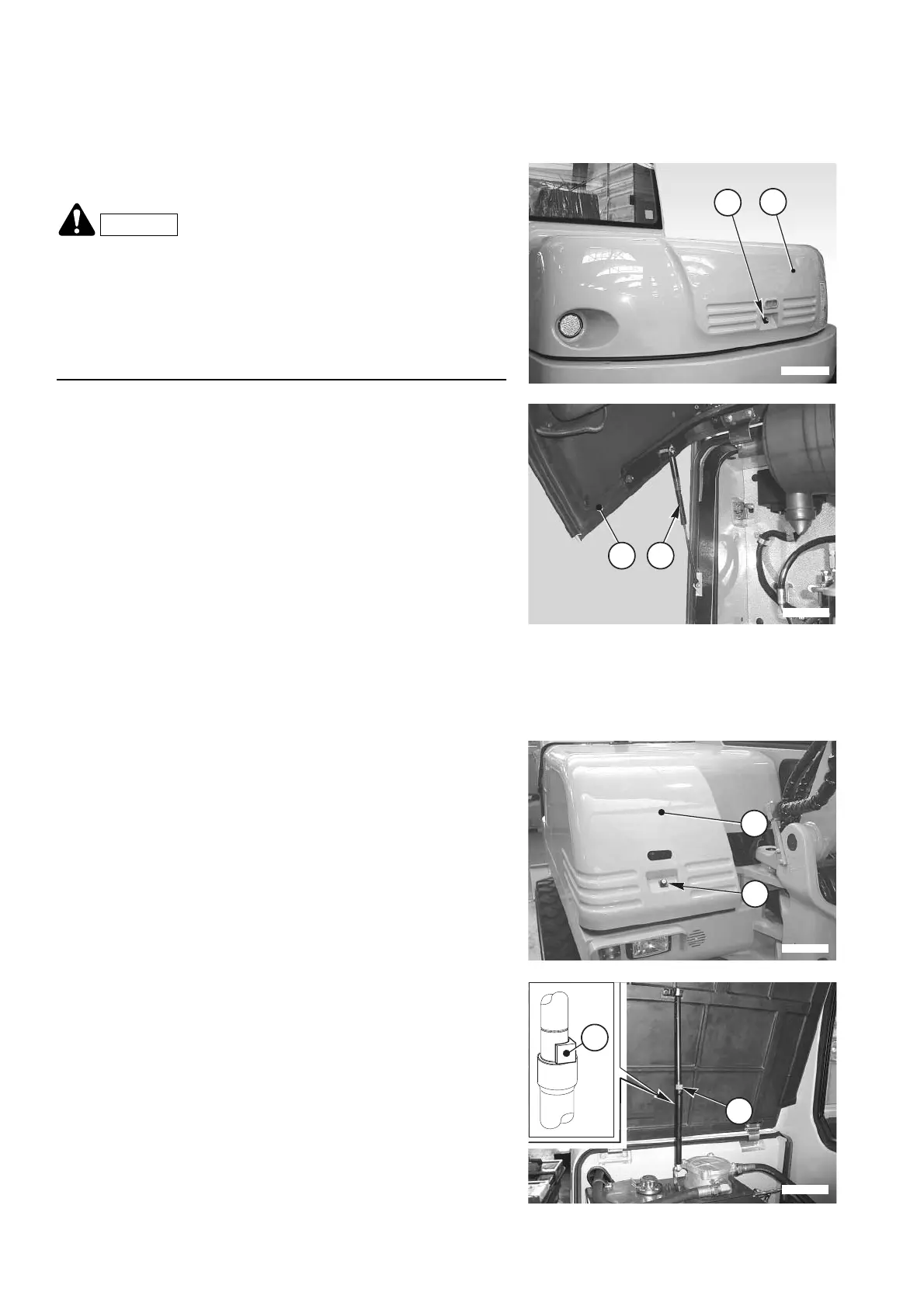

OPENING THE HOOD
After releasing the lock, press the push button (1) and raise the
engine hood (2).
The maximum opening is ensured by the side pins (3).
CLOSING THE HOOD
Lower the hood slowly and push it downwards until the loc
snaps.
Lock the hood.
RWAA12010
1
2
RWAA12020
2
3
OPENING THE COVER
After releasing the lock, press the push button (1) and raise the
cover (2).
The maximum opening is ensured by the pin (3) locked by the
safety device (4).
CLOSING THE COVER
Press the safety device (4) of the opening pin and lower the cove
at the same time.
Push the cover downwards until the lock snaps.
Lock the cover.
RWAA12030
1
2
3
RWAA12040
4
