FUSES AND RELAYS

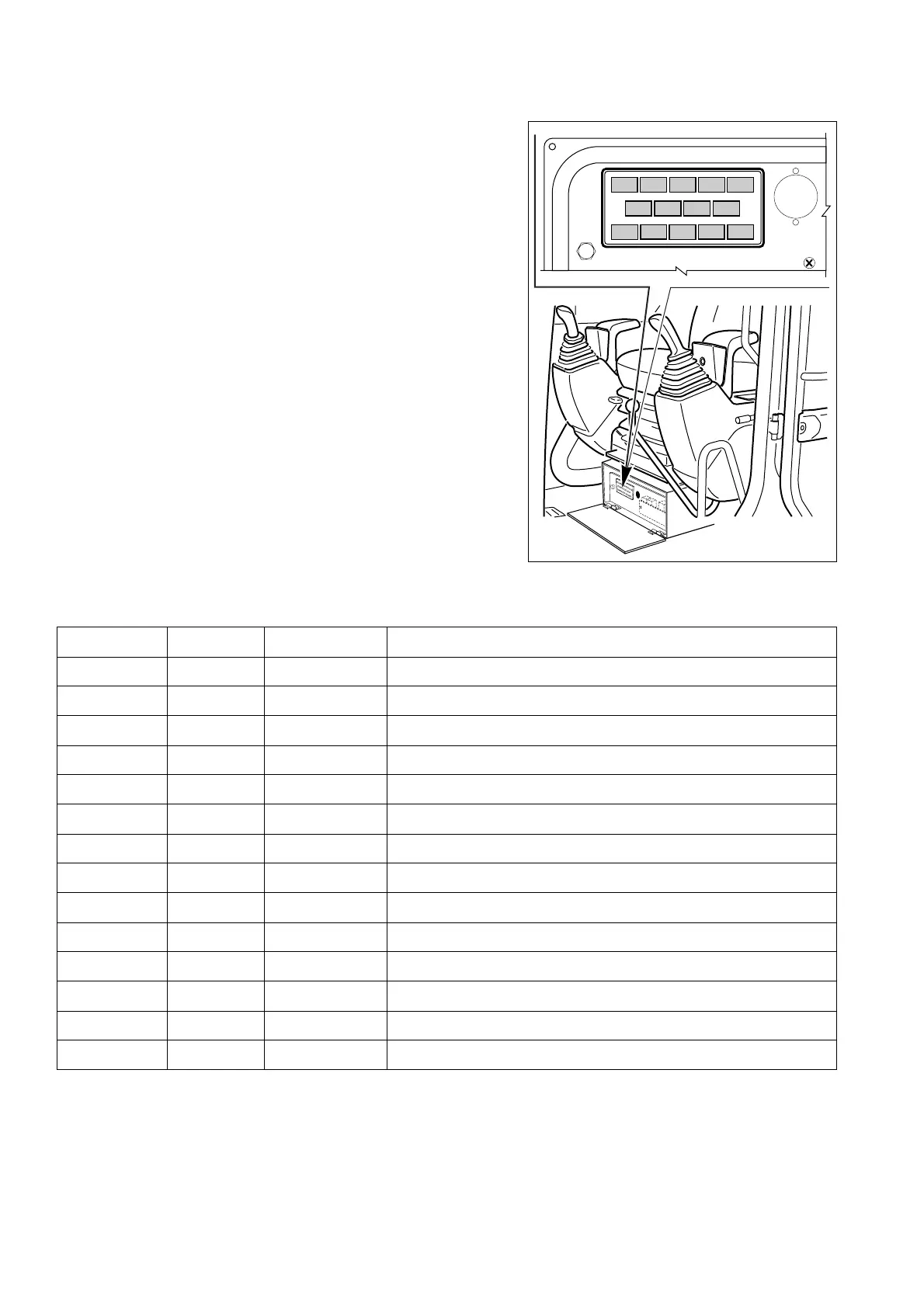

3.4.1.1 CENTRAL UNIT FUSES
POSITION COLOUR CAPACITY (A) INVOLVED CIRCUIT
1 Red 10 Low beam (56B)
2 Light blue 15 High beam (56A)
3 Brown 7,5 Outlet, radio, overhead lamp
4 Brown 7,5 Revolving light
5 Brown 7,5 Working light
6 Light blue 15 Heating
7 Brown 7,5 Alternator
8 Orange 5 Instrument board power supply
9 Brown 7,5 Horn
10 Red 10 Push-button panel relay power supply
11 Brown 7,5 Cab power supply (+15)
12 Light blue 15 Fuel pump
13 Brown 7,5 Engine stop
14 Red 10 Servo control solenoid valve
3
4
8
9
5
14
1311 12
1
2
6
7
10
RYA15680
