MAINTENANCE PLAN
182

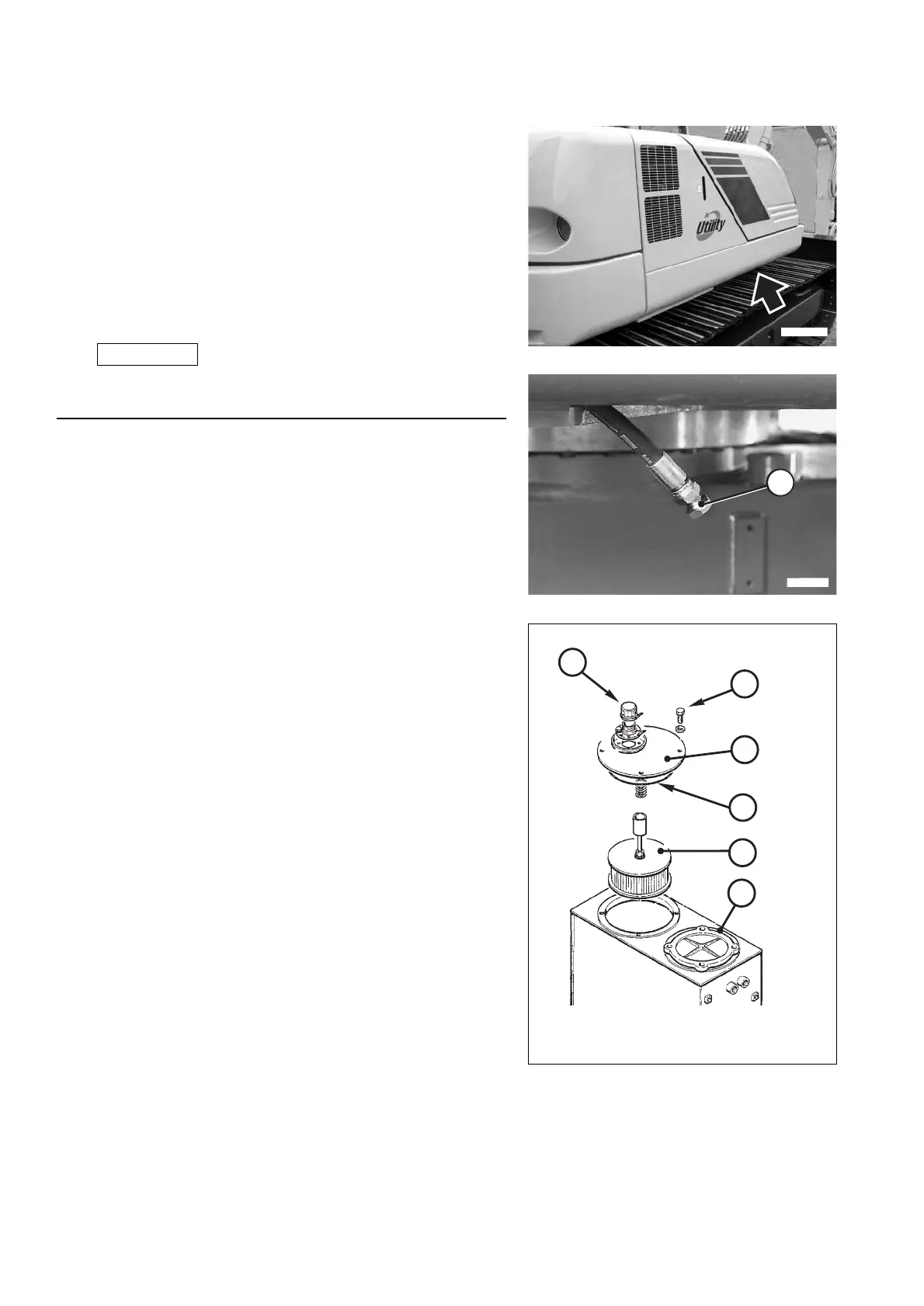

6 - Remove the lower cover, remove the drain plug (2) and let the
oil flow out, gathering it into a container with suitable capacity.
Use 17 and 27 mm spanners.
7 - Remove the upper flange (3) of the tank and change the filte
r
(see “4.7.11.a CHANGING THE HYDRAULIC SYSTEM OIL
FILTER”).
Use a 13 mm spanner.
8 - Remove the screws (4), remove the flange (5) and clean the
suction filter (7).
Use a 17 mm hexagon spanner.
IMPORTANT
☞
• Carefully check the grid of the filtering element and if it is
not in perfect conditions, change it.
9 - Put back the drain plug (2), the suction filter (7), the uppe
r
flange (5), making sure that the gasket (6) is in good condi-
tions.
RYAA0130
12
RWA19790
4
1
5
6
3
7
RYAA0140
