PC130/150LGP-6K ENG
13. TRANSPORTATION
13.3 PRECAUTIONS FOR TRANSPORTATION
• Determine the route for transporting the machine by taking
into account the width, height and weight of the machine.
• Always check that the door on the cab is closed and locked
before transporting the machine.
Obey all state and local laws governing the weight, width and length
of a load. Observe all regulations governing wide loads.
13.4 LIFTING THE MACHINE
How to lift a machine
Personnel who perform lifting using a crane must be qualified
Contact your distributor to get an instruction of lifting a ma-
chine. Some parts are required and availabl as optional parts.
• Do not lift a machine with personnel in it.
• The rope used for lifting must have sufficient strength to with-
stand the weight of this machine.
• The machine must not be in a position other than that shown
in the following procedure when lifting a vehicle. Otherwise,
the machine may be unbalanced.
Before lifting the machine, place the machine on a flat horizontal
surface and follow the procedure shown below

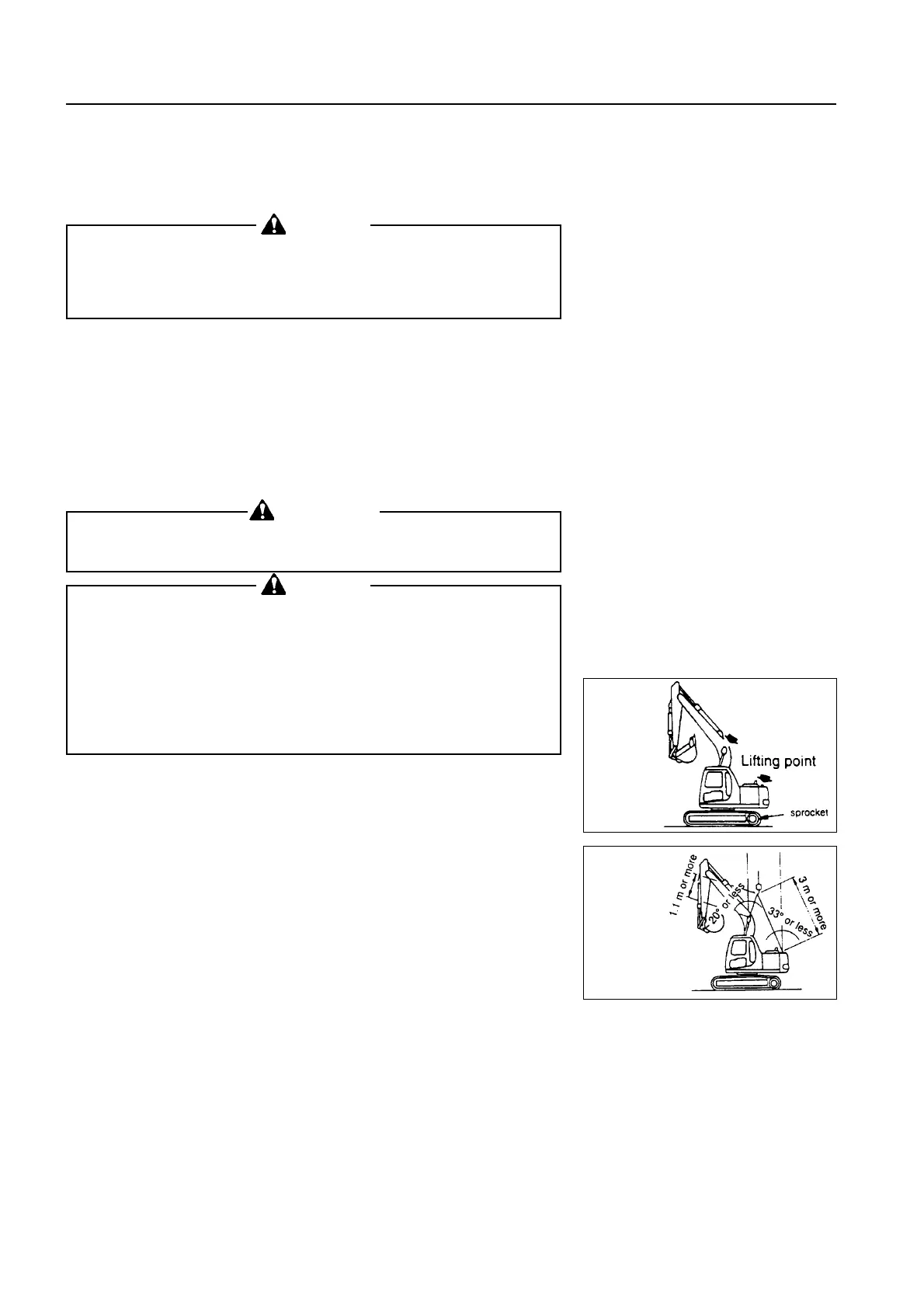

1) Set the machine to the position shown in the figure on the right by
fully extending all cylinders. (Boom at its highest point, arm and
bucket fully retracted).
2) Set the safety lock lever in the lock position.
3) Switch the engine off and confirm any loose objects are placed in the
storage compartment behind the operator's seat.
4) Make sure the front windshield is closed and securely locked.
5) Get out of the machine, close the cab door and lock it.
6) Close and lock left and right hand machine cab doors, battery com-
partment and engine hood.
7) Attach the correct strength lifting shackles to the lifting hooks on the
Boom and Counterweight.
8) Hang the wire rope.
NOTE: The wire rope length(s) and angles must be as shown in the
figure on the right.
