CHECK OIL LEVEL IN ENGINE OIL PAN, ADD OIL 0.
WARNING
The parts and oil are at high temperature immediately after the engine is stopped, and may cause serious
burns. Wait for the temperature to go down before starting the operation.

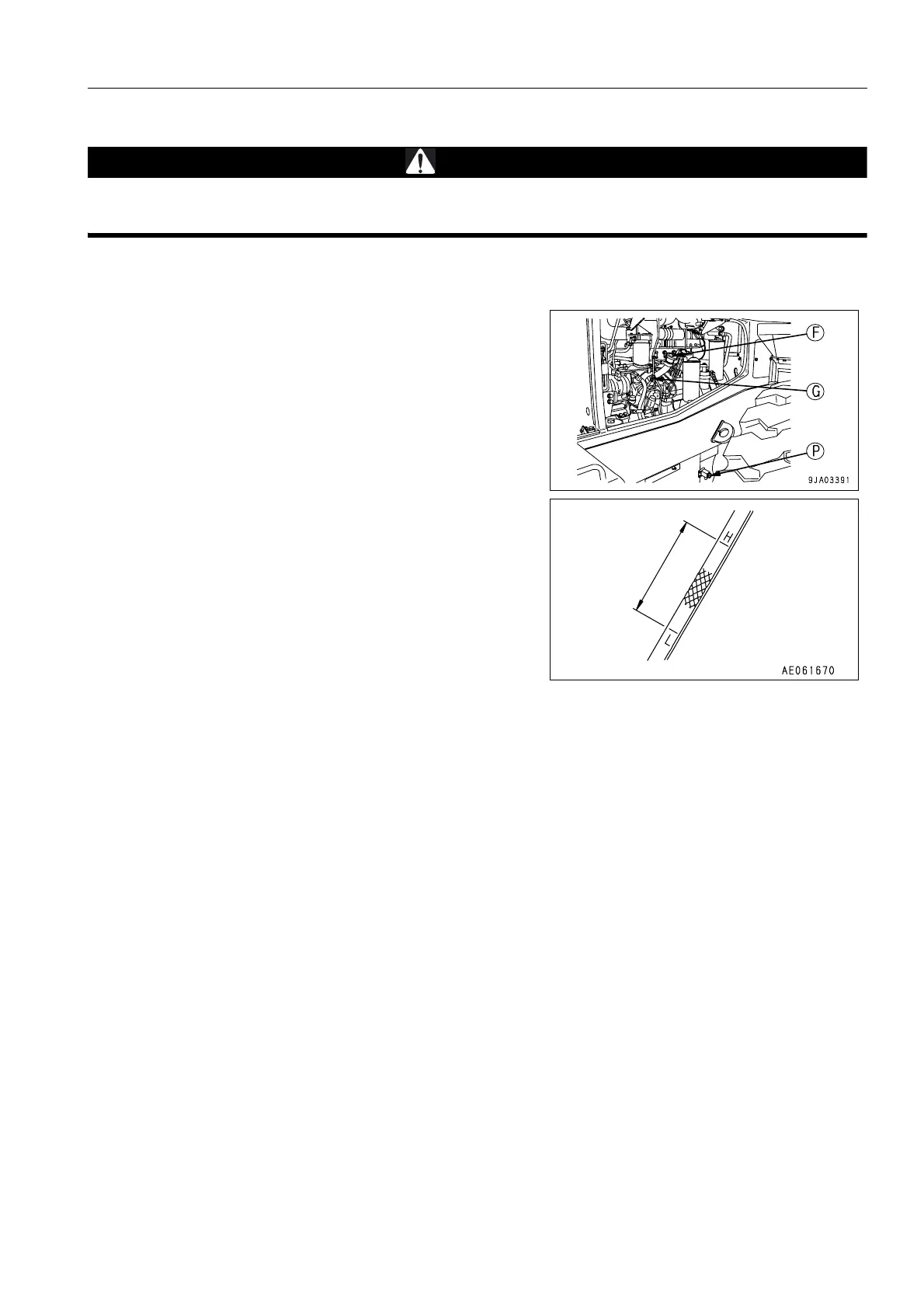

1. Open the inspection cover of the right side at the rear of the machine.
2. Take out the dipstick (G) and wipe off the oil with cloth.
3. Insert dipstick(G) fully in the oil filler pipe, then take it out
again.
4. The oil level should be between the H and L marks on dip-
stick (G).
If the oil level is below the L mark, add engine oil through oil
filler (F).
5. If the oil is above the H mark, drain the excess engine oil
from drain plug(P), and check the oil level again.
6. If the oil level is correct, tighten oil filler cap (F) securely and
close the inspection window.
REMARK
! When checking the oil level after the engine has been
operated, wait for at least 15 minutes after stopping the
engine before checking.
! If the machine is at an angle, make it horizontal before
checking.
