EXPLANATION OF COMPONENTS OPERATION
3-24

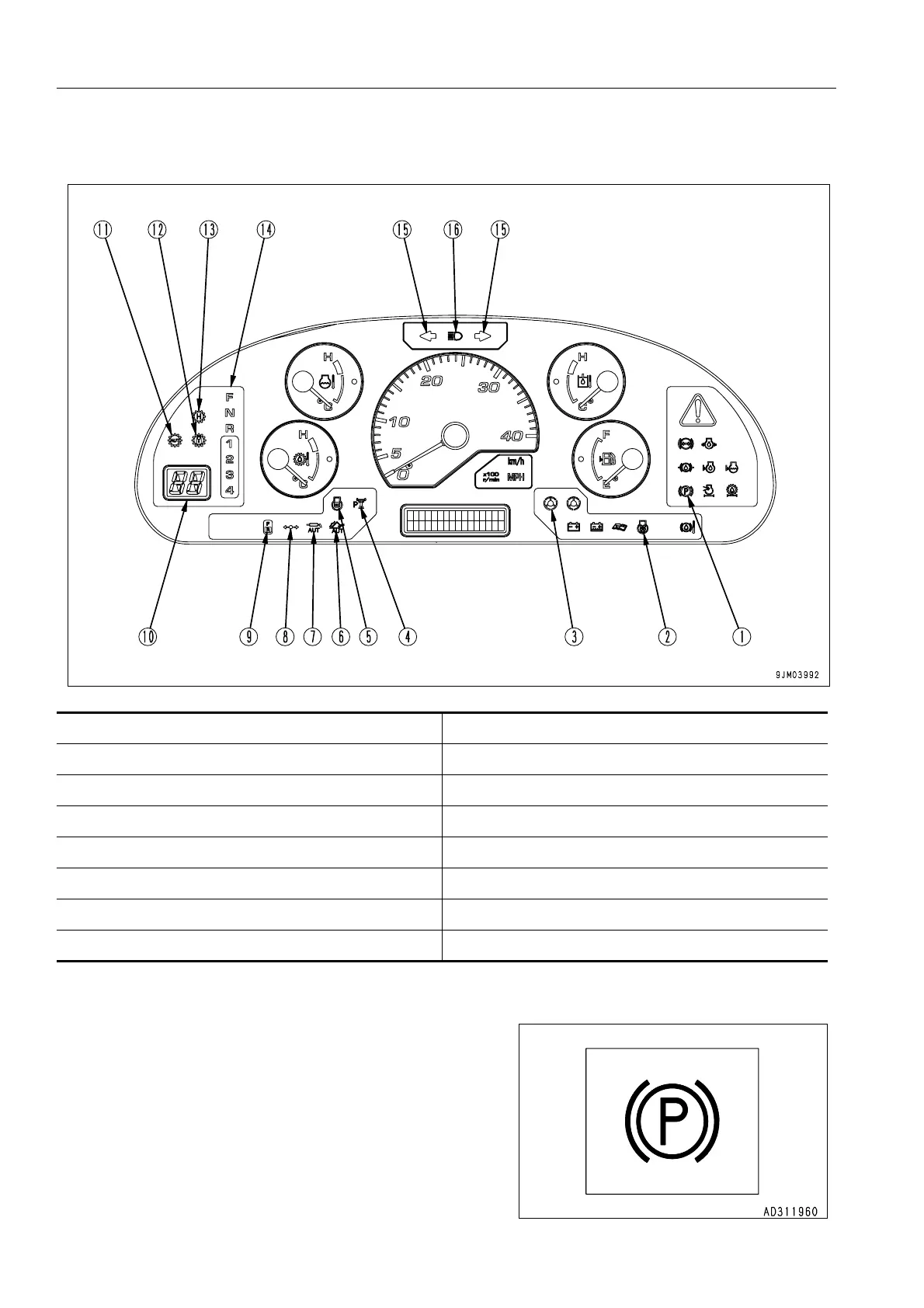

PILOT DISPLAY PORTION 0.
When the starting switch is ON, the pilot display lights up when the display items are functioning.
PARKING BRAKE PILOT LAMP 0.
This monitor (1) lights up when the parking brake is applied.
(1) Parking brake pilot lamp (9) Directional selector pilot lamp (option)
(2) Cooling fan reverse rotation pilot lamp (10) Shift indicator
(3) Emergency steering pilot lamp (11) Aut-shift pilot lamp
(4) Output mode pilot lamp (power mode) (12) Lockup pilot lamp (option)
(5) Preheating pilot lamp (13) Shift hold pilot lamp
(6) Semi auto digging pilot lamp (option) (14) Shift lever position pilot lamp
(7) Auto-greasing pilot lamp (15) Turn signal pilot lamp
(8) Joystick pilot lamp (16) Head lamp high beam pilot lamp
