OPERATION GENERAL VIEW
3-3

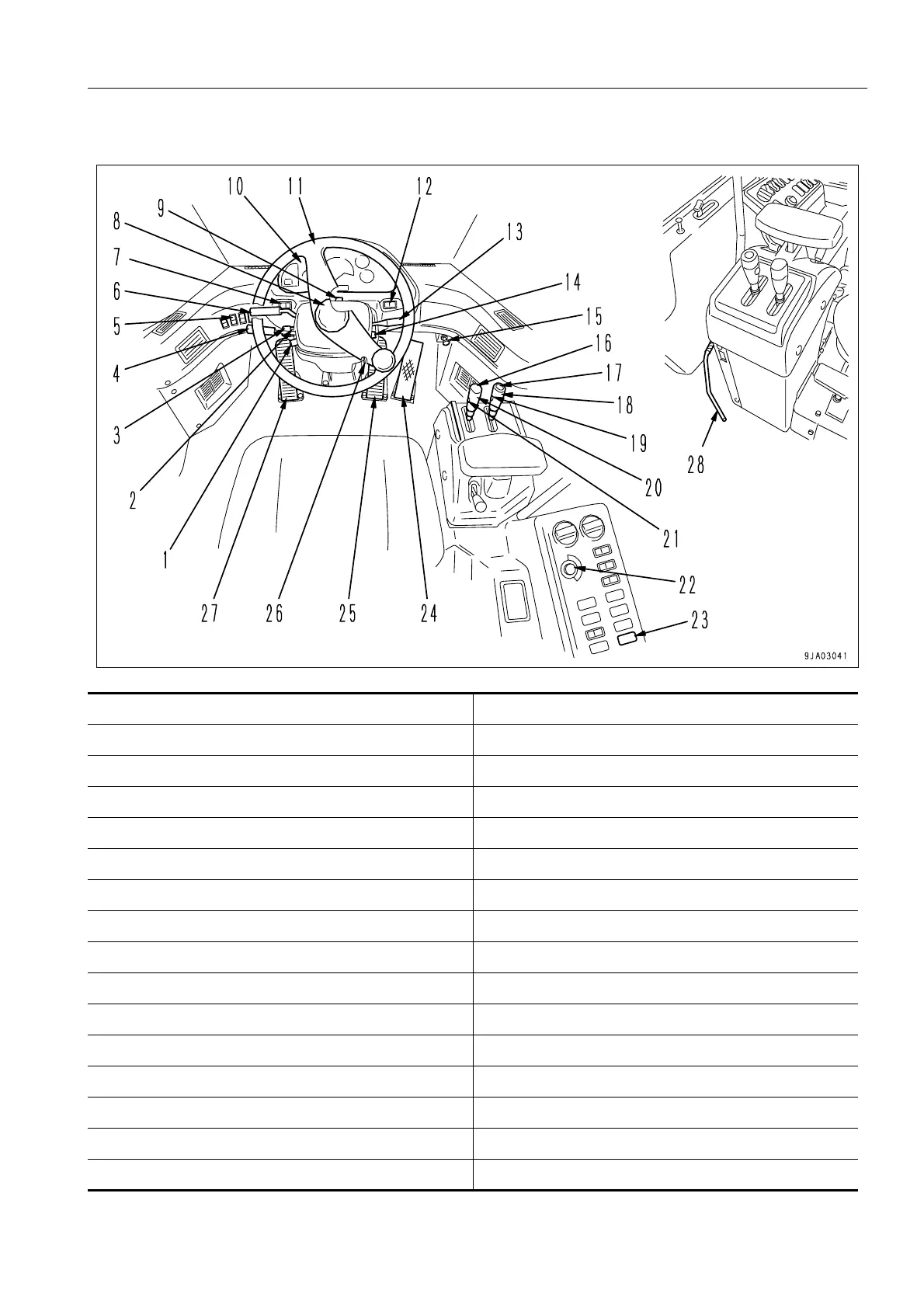

GENERAL VIEW OF CONTROLS AND GAUGES 0.
(1) Directinal lever stopper (14) Parking brake switch
(2) Rear wiper switch (15) Cigarette lighter
(3) Front wiper switch (16) Load meter cancel switch (option)
(4) Speed control lever (17) Kickdown switch
(5) Front switch panel (18) Lift arm control lever
(6) Directinal lever (19) Hold switch
(7) E.C.S.S. switch (20) Bucket control lever
(8) Horn switch (21) Load meter subtotal switch (option)
(9) Hazard lamp switch (22) Starting switch
(10) Machine monitor (23) Right switch panel
(11) Steering wheel (24) Accelelator pedal
(12) Transmission cut-off switch (25) Right brake pedal
(13) Lamp switch (25) Right brake pedal
(13) Turn signal lever (26) Steering tilt lock lever
(13) Dimmer switch (27) Left brake pedal
(28) Safety lock lever
