ATTACHMENTS, OPTIONS HANDLING LOAD METER
6-21

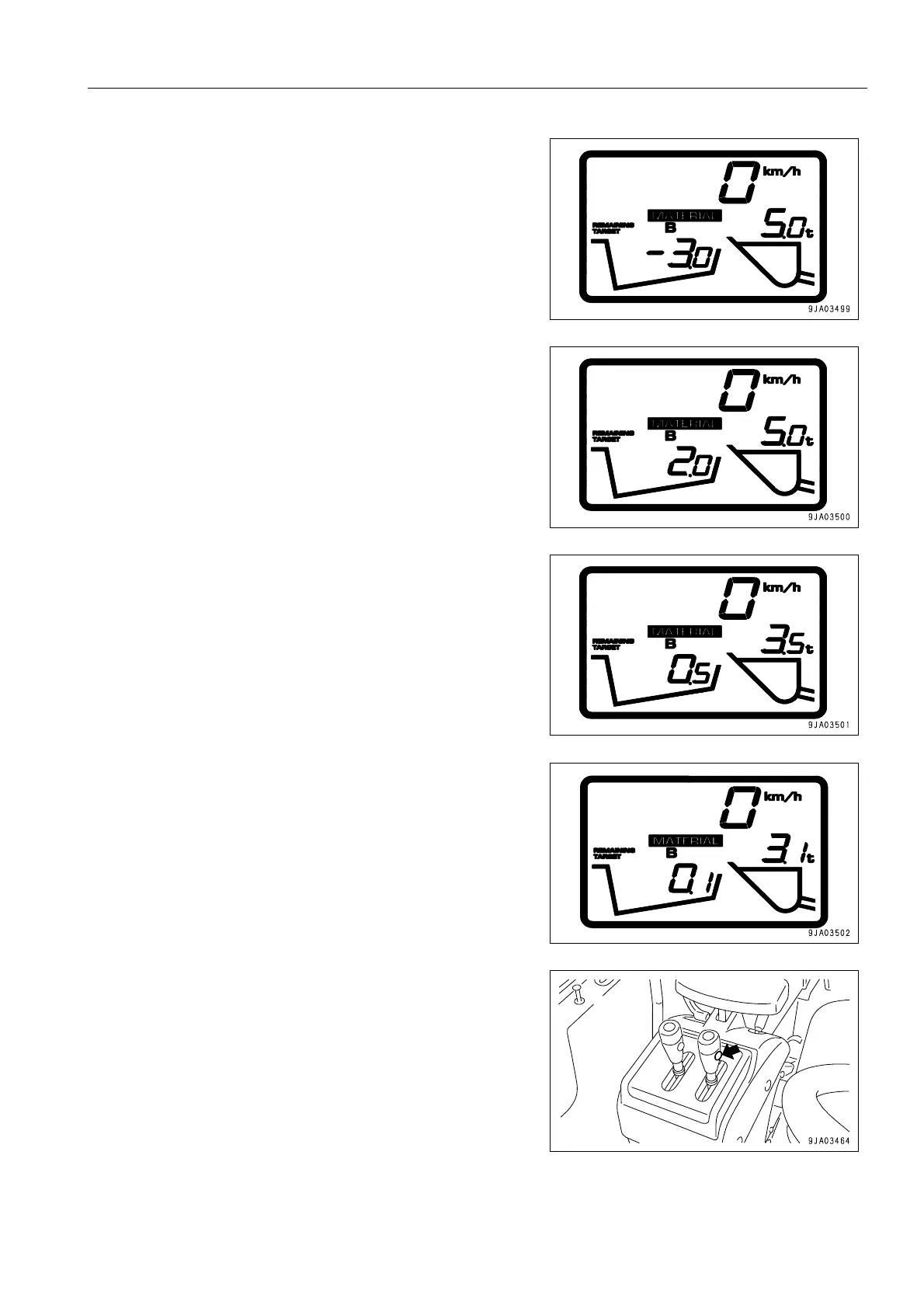

4. This is the third load.
The result of measuring the load in the bucket is 5.0 tons.
This is 3.0 tons over the target amount, so -3.0 tons is dis-
played.
5. The target load is displayed as -3.0 tons, and after 3 sec-
onds, the display changes to the display shown on the right.
The target value of 2.0 tons is the target load after complet-
ing the loading of the second bucket.
6. Load the target of 2.0 tons from the 5.0 tons loaded in the
bucket.
7. After loading, lower the lift arm and then raise it again in
order to weigh the amount remaining in the bucket. The
amount remaining in the bucket is weighed and displayed.
The amount remaining in the bucket is 3.5 tons.
The target load is 2.0 - (5.0 - 3.5) = 0.5 tons
The next target load of 0.5 tons is displayed.
8. Load the target of 0.5 tons from the 3.5 tons loaded in the
bucket.
9. After loading, lower the lift arm and then raise it again in
order to weigh the amount remaining in the bucket. The
amount remaining in the bucket is weighed and displayed.
10.The amount remaining in the bucket is 3.1 tons.
The target load is 0.5 - (3.5 - 3.1) = 0.1 tons
11.To start the next loading operation, press the load meter
subtotal switch and the first loading operation is completed.
