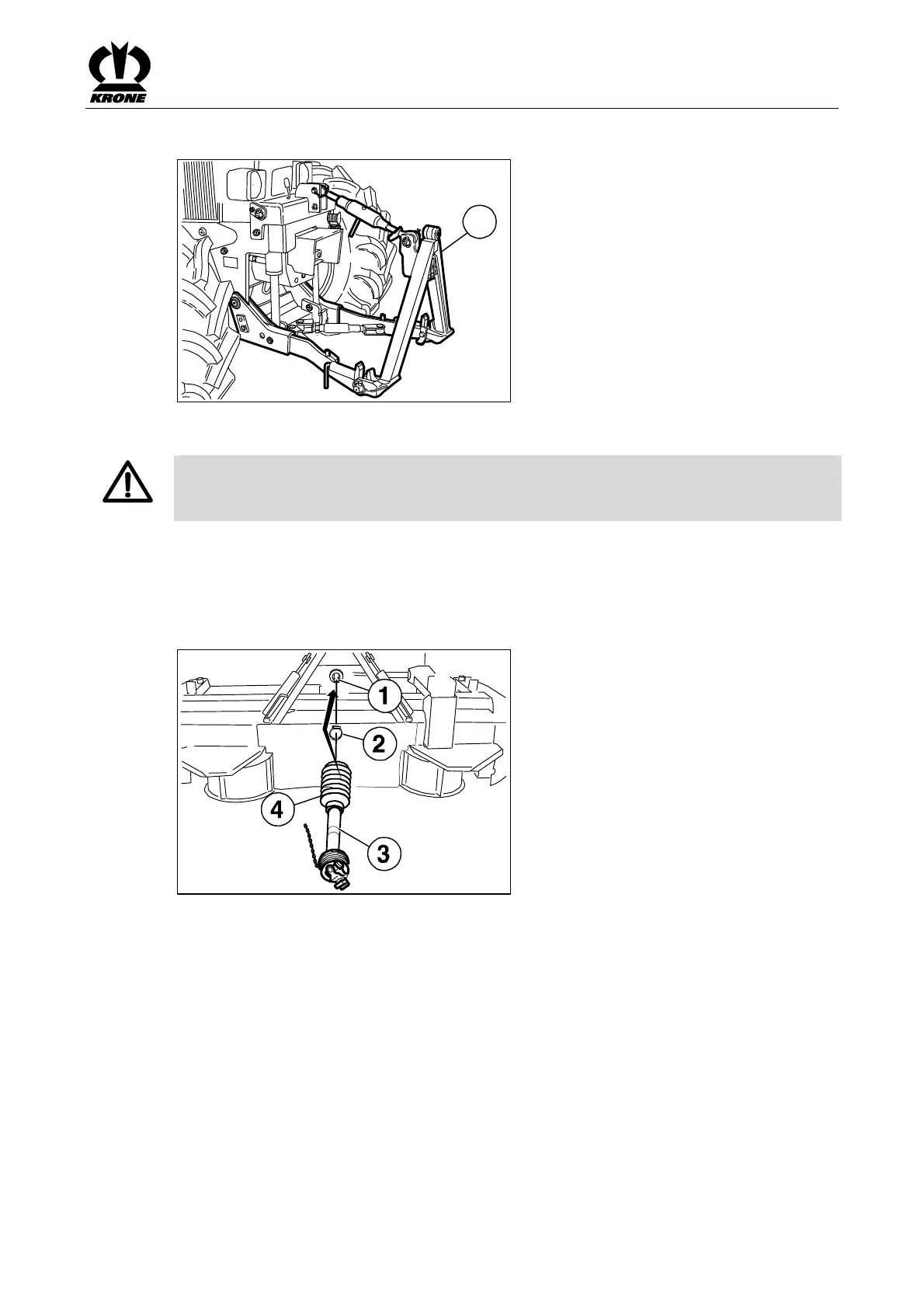

5.4 Installation of Weiste triangle
AFL 245-0-007
1
Fig. 6
Pos: 14.15 /BA/Sic herheit/Gefahre nhinweise/Mä hwerke/Warnu ng Anbau des K uppeldreiecks ( Weiste Dreiec k)@ 3\mod_12 04638378407_78. docx @ 71102 @ @ 1
Warning - Installation of the triangle linkage (Weiste triangle)
Effect: Danger to life or serious injuries. Considerable damage to the machine
Observe manufacturer's operating instructions for the triangle linkage!
Pos: 14.16 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/A nbau Weiste-Dr eieck Text @ 3\mod_12046386 31735_78.doc x @ 71179 @ @ 1
For the installation of the front-mounted disc mower, a Weiste triangle (1) is attached to the front
hydraulics. Adjust the top suspension arm in such a way that the triangle is inclined slightly
forward.
Pos: 14.17 /Übersc hriften/Überschrif ten 2/U-Z/V orbereitung a mFr ontscheiben mäher @ 35\mo d_125749724 6000_78.docx @ 329285 @ 2 @ 1
5.5 Preparation on the front-mounted disc mower
Pos: 14.18 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/V orbereitung am F rontscheibenm äher EC 28/32 28P/32P 28M @ 10\mod_122165 9810103_78.doc x @ 136162 @ @ 1
EC-1-005
Fig. 7:
• Push the PTO shaft (3) with full protection (4) onto the PTO shaft end of the machine.
• The safety mechanism must engage
• Secure the PTO shaft guard (2) against turning with pipe clamp (2).
