Start-up

Pos: 16.9.1 /Übersc hriften/Übersc hriften 3/U-Z/Un terlenkerad apter @ 79\mod _1314688743 340_78.docx @ 69 7532 @ 3 @ 1

6.1.1 Lower suspension arm

Pos: 16.9.2 /BA/ Inbetriebnah me/EasyCut/Unterle nkeradapter/U nterlenkerada pter fixieren Bil d@ 79\mod_131 4690338900_78.d ocx @ 6976 69 @ @ 1

EC-387-0

Fig. 10

Pos: 16.9.3 /BA/ Inbetriebnah me/EasyCut/Unterle nkeradapter/U nterlenkerada pter fixieren /Unt erlenkeradapt erfi xieren / pend elnd Einführt ext @ 136\mod_13 52380302114_ 78.docx @ 1 208499 @ @ 1

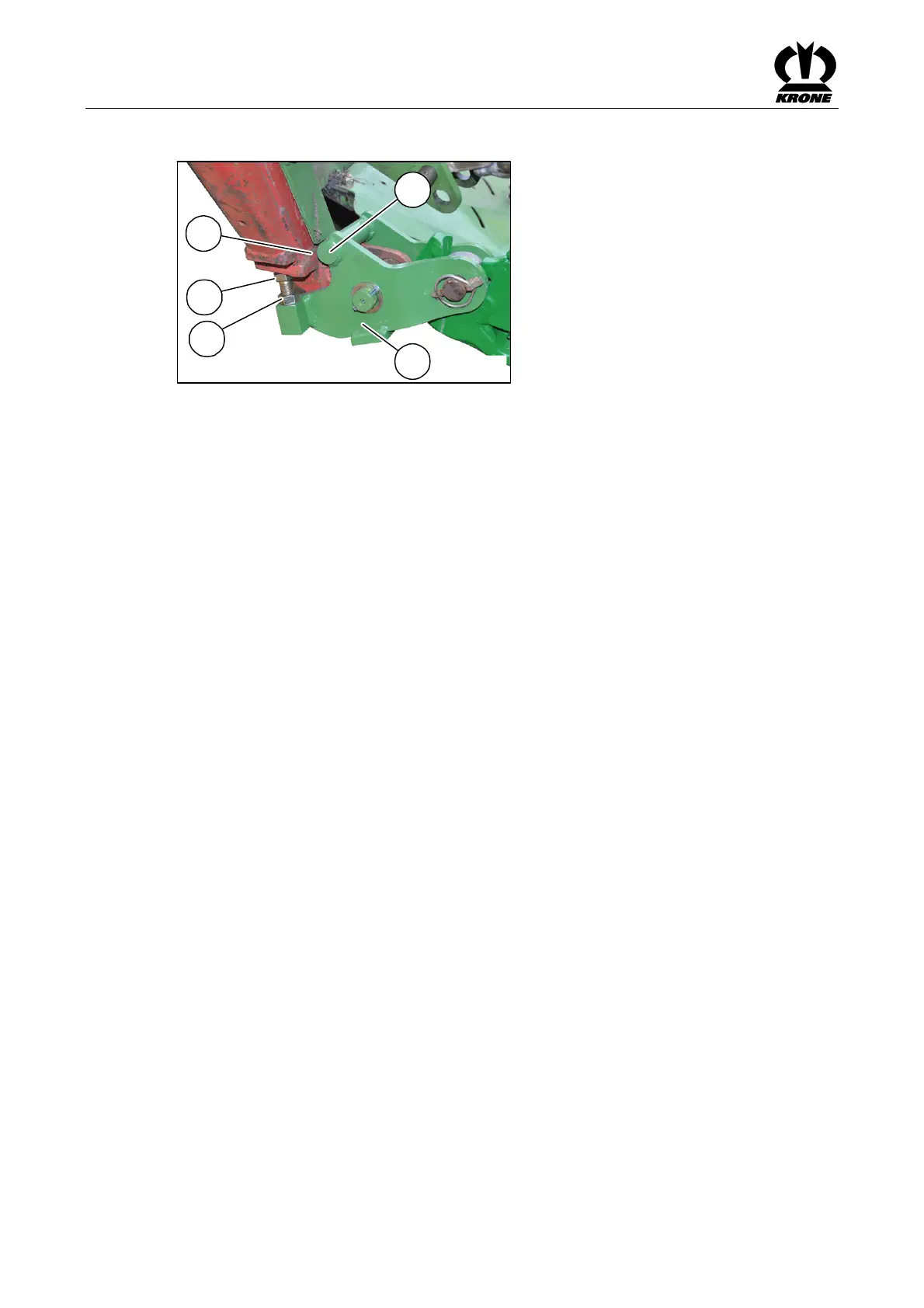

The lower suspension arm adapters (1) serve as extension to increase the distance of the

machine to the front wheels of the tractor.

On tractors with floating (height movable) lower links, the lower suspension arm adapters must

be fastened.

On tractors with rigid lower links, the lower suspension arm adapters must be set floating.

Pos: 16.9.4 /BA/ Inbetriebnah me/EasyCut/Unterle nkeradapter/U nterlenkerada pter fixieren @ 1 36\mod_135238 0102898_78. docx@ 1208413 @ 2 @ 1

Fastening the Lower Suspension Arm Adapters

To do this:

• Connect the machine to the Weiste triangle.

• Lower the machine into working position.

• Move the front power lift into float position.

• Turn off the engine, remove the ignition key and secure the tractor and the machine

against accidental start-up and against rolling.

• Turn out screw (2) until the bolt (A) of the lower suspension arm adapter (1) touches the

stop (B) of the Weiste triangle (right and left machine side).

• Lock the screw (2) with nut (3).

Pos: 16.9.5 /BA/ Inbetriebnah me/EasyCut/Unterle nkeradapter/U nterlenkerada pter pendelnd eins tellen @ 136\ mod_1352380 217006_78.docx @ 1208442 @ @ 1

Setting the Lower Suspension Arm Adapters Floating

To do this:

• Connect the machine to the Weiste triangle.

• Lower the machine into working position.

• Move the front power lift into float position.
