Maintenance

Pos: 24.42 /Übersc hriften/Überschrif ten 2/K-O/M äherantriebsg etriebe @ 9\ mod_1221045800 746_78.doc x@ 1 31475 @ 2 @ 1

10.9 Mower Drive Gearbox

Pos: 24.43 /Ab kürzungen /Abkürz ungen sprac hneutral/EasyC ut/EasyCut F 320 M / F 360 M @ 1 03\mod_1332237 563100_0.doc x @ 941095 @ @ 1

(EasyCut F 320 M / EasyCut F 360 M)

Pos: 24.44 /BA/ Wartung/Ölkontroll e_Wechsel/M ähwerke/Bild M äherantriebsgetri ebe EC F 3 20@ 89\mod_1322 735746488_78. docx @ 766 089 @ @ 1

EC-399-0

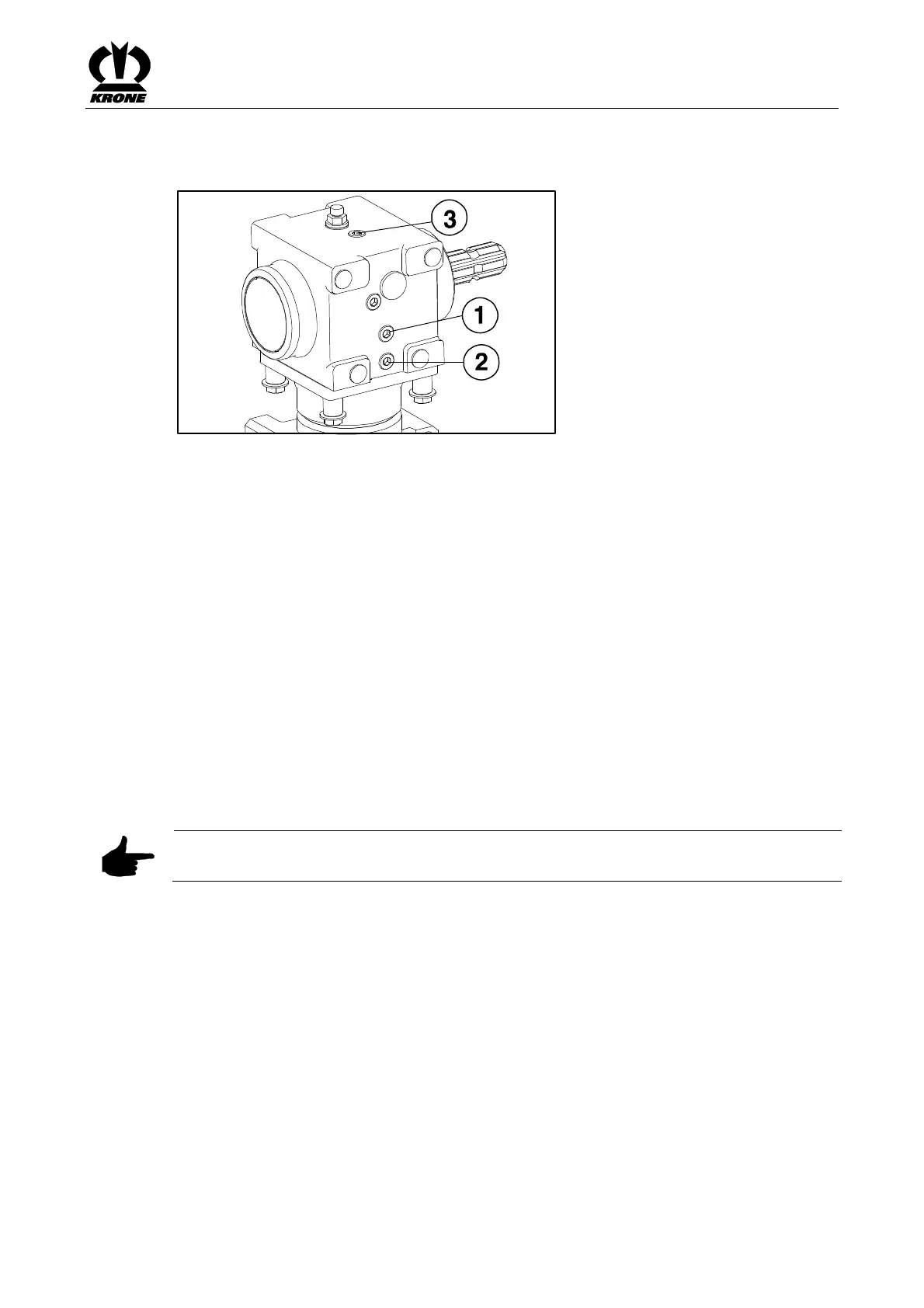

Fig. 26

Pos: 24.45 /BA/ Wartung/Ölkontroll e_Wechsel/Öl kontrolle_ALT Ölkontrolle SAE 90@ 0\mod_1197 008973815_7 8.docx @ 15649 @ @ 1

Oil level check:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Unscrew the inspection screw (1)

• Oil level up to bore hole (1)

• If necessary, top up the oil (SAE 90)

• Screw the check screw (1) back in.

Pos: 24.46 /BA/ Wartung/Ölkontroll e_Wechsel/Öl wechsel_ALTÖl wechsel Versio n3 @ 1\mod_1 20125590007 3_78.docx @ 5 2826@ @ 1

Oil change:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Screw out the oil drain plug (2)

• Collect the used oil in a suitable drip pan

• Screw in the oil drain plug (2)

• Top up the oil (3) (oil level up to hole (1))

• Screw the inspection screw (1) and locking screw (3) back in.

Pos: 24.47 /BA/ Wartung/Ölkontroll e_Wechsel/Ölq ualität /Öl menge: siehe Kapit el @ 0\mod_11 97007859486 _78.docx @ 15531 @ @ 1

Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for

Gearboxes"

Pos: 24.48 /BA/ Wartung/Ölkontroll e_Wechsel/Alt öl ordnungsge mäß entsorgen @ 0\mod_11970 08117002_78.d ocx @ 15550 @ 2 @ 1

Note

The used oil must be disposed of correctly
