Maintenance
63
Pos: 24.52.28 / BA/Wartung/Mä hwerke/Stoß kanten erneuern @ 0\mod_119727 1320468_78.doc x@ 16636 @ 2 @ 1

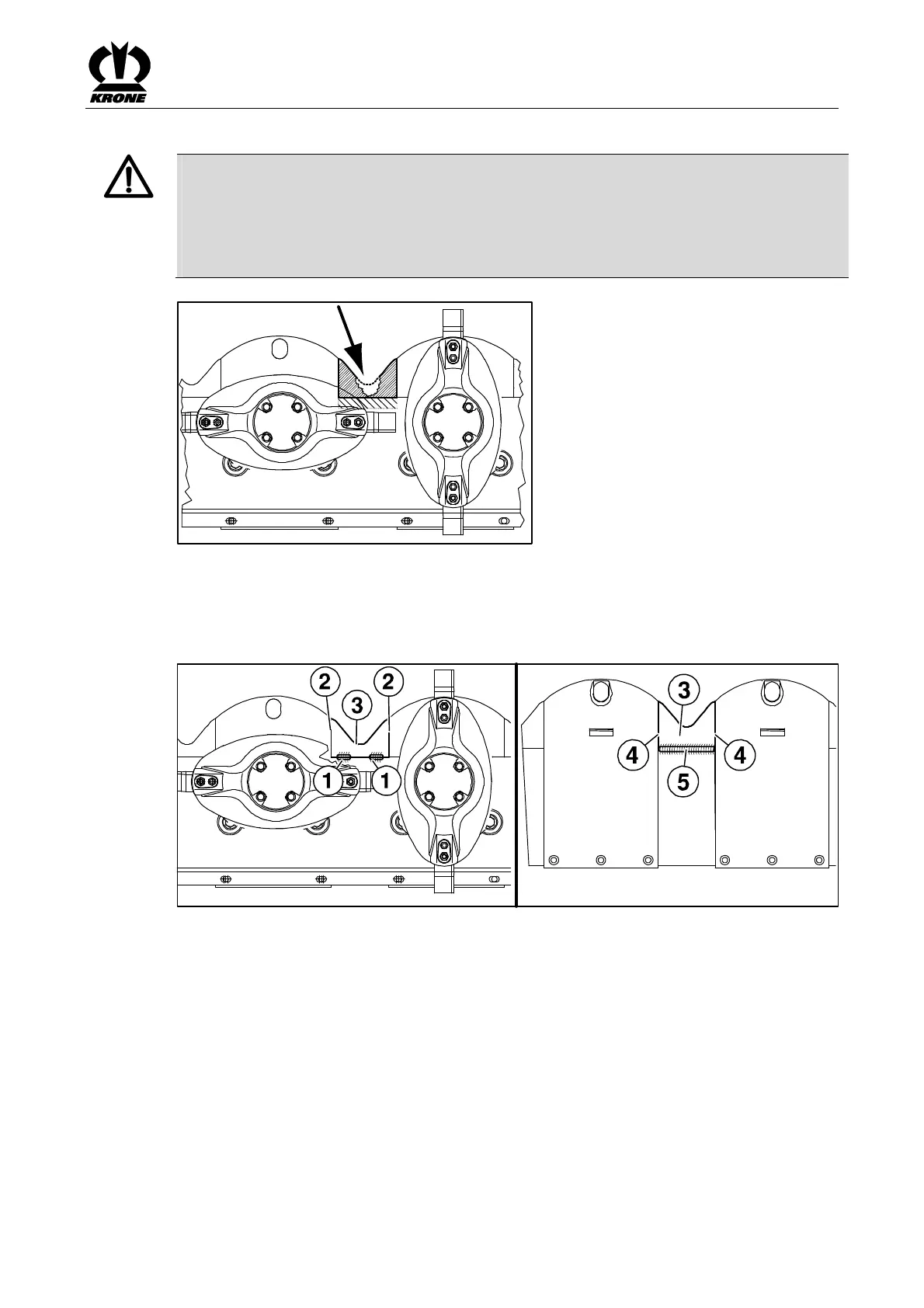

10.13 Replacing the linings
Caution! - If the linings are checked irregularly.
Effect: Damage to the machine
• Always check the mowing unit for damaged linings prior to start-up and replace linings, if
necessary!
• Adjust the welding current and the welding material to the cutter bar material and to the
lining or carry out a trial welding if necessary.•
EC-0-012
Fig. 37
• Open the welding seams of the old lining.
• Remove the lining
• Deburr the contact surface.
EC-252-0
Fig. 38
• Adapt the new lining (3).
• Weld short I seams on the upper surface of the cutter bar in the areas marked (1) (each
should be approx. 30 mm).
• Do not weld the edges (2).
• On the lower surface of the cutter bar, weld the lining (3) to the cutter bar along the
whole length in area (5).
• Do not weld the edges (4).
Pos: 24.53 /BA/--- ------ ------Seitenumbruch---- ------------ @ 0\m od_1196175311 226_0.docx @ 4 165 @ 2 @ 1
