10.8 Mower Drive Gearbox

Pos: 24.35 /Ab kürzungen /Abkürz ungen sprac hneutral/EasyC ut/EasyCut F 280 M @ 89\mod_132 2736130843_ 0.docx @ 76 6117@ @ 1

(EasyCut F 280 M)

Pos: 24.36 /BA/ Wartung/Ölkontroll e_Wechsel/M ähwerke/Bild M äherantriebsgetri ebe EC 28/32 @ 10\mod_1221 741509333_7 8.docx @ 1371 96@ @ 1

EC-227-0

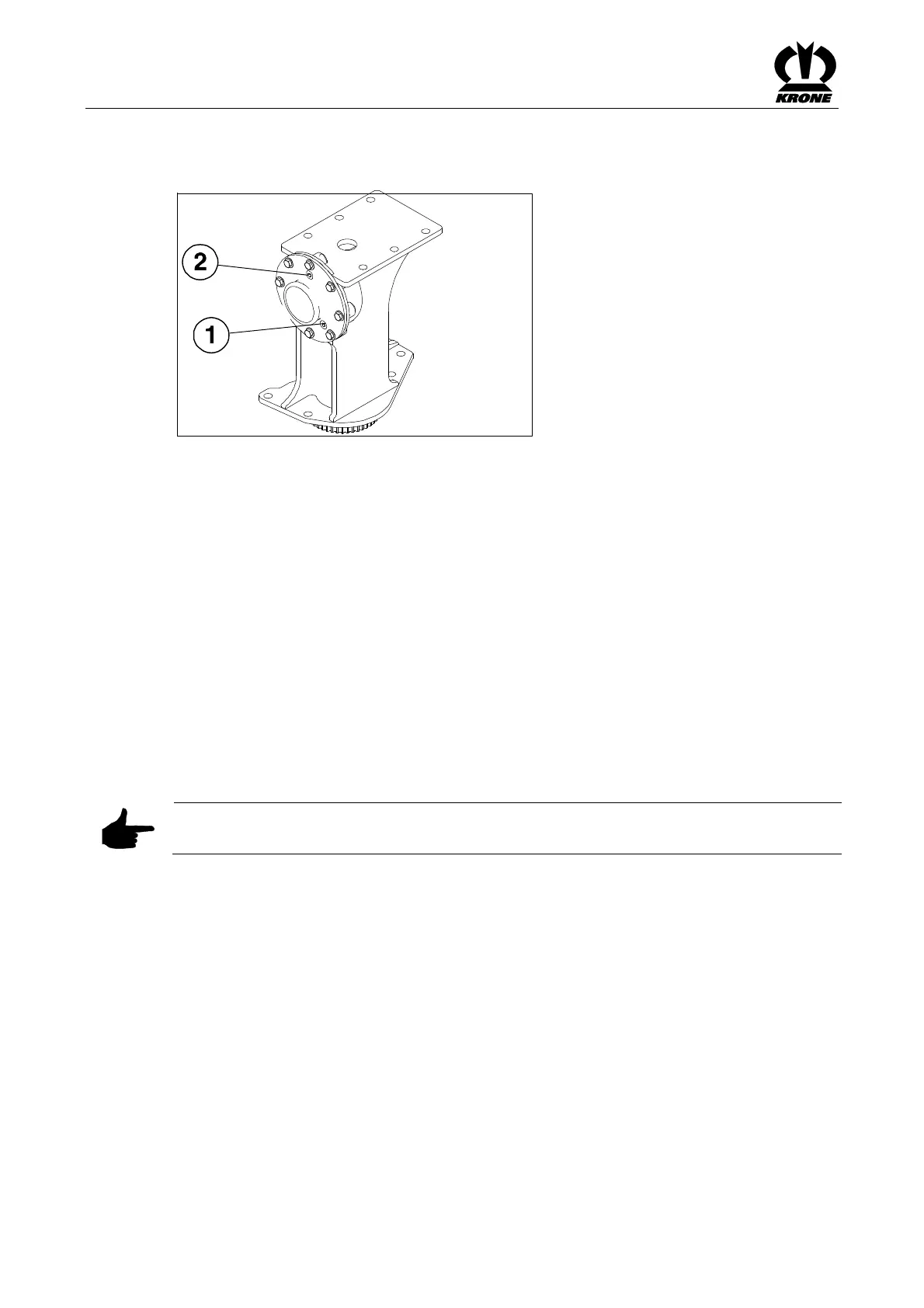

Fig. 25

Pos: 24.37 /BA/ Wartung/Ölkontroll e_Wechsel/Öl kontrolle_ALT Ölkontrolle SAE 90@ 0\mod_1197 008973815_7 8.docx @ 15649 @ @ 1

Oil level check:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Unscrew the inspection screw (1)

• Oil level up to bore hole (1)

• If necessary, top up the oil (SAE 90)

• Screw the check screw (1) back in.

Pos: 24.38 /BA/ Wartung/Ölkontroll e_Wechsel/Öl wechsel_ALTÖl wechsel Versio n5 @ 9\mod_1 22104705204 3_78.docx @ 1 31562 @ @ 1

Oil change:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Screw out the oil drain plug (1)

• Collect the used oil in a suitable drip pan

• Screw in the oil drain plug (1)

• Top up the oil (2) (oil level up to hole (1))

Pos: 24.39 /BA/ Wartung/Ölkontroll e_Wechsel/Ölq ualität /Öl menge: siehe Kapit el @ 0\mod_11 97007859486 _78.docx @ 15531 @ 2 @ 1

Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for

Gearboxes"

Pos: 24.40 /BA/ Wartung/Ölkontroll e_Wechsel/Alt öl ordnungsge mäß entsorgen @ 0\mod_11970 08117002_78.d ocx @ 15550 @ @ 1

Note

The used oil must be disposed of correctly
