Krone EasyCut F 360 Original Operation Instructions

Start-up
27
Pos: 16.1 /Übersc hriften/Übersc hriften 1/F-J/Inbetri ebnahme @ 0\mod_11963 27075811_78.doc x @ 6375 @ 1 @ 1
6 Start-up
Pos: 16.2 /Übersc hriften/Übersc hriften 2/A-E/An bau an den Trakt or @ 0\mod_ 119971784519 4_78.docx @ 3 4039 @ 2 @ 1
6.1 Mounting onto the Tractor
Pos: 16.3 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Gefahr - Un beabsichtigt es Abkuppeln Fro ntmähwer ke@ 3\mod_1204 641660735_78. docx @ 71218 @ @ 1
Danger! - Inadvertent uncoupling of the machine during road travel or work.
Effect: Danger to life, serious injuries or serious damage to the machine.
• Use extreme caution when attaching implements to or detaching them from the tractor!
The accident prevention regulations must be complied with absolutely.
• When attaching or detaching the machine, do not walk between the tractor and the
machine!
• The lower suspension arms of the front hydraulics on the tractor must be adjusted to
swing freely. (see operating instructions for the front hydraulics)
• If the lower suspension arms on the tractor cannot be adjusted to swing freely, free-
swinging lower suspension arm adapters must be installed.
• Lower suspension arm adapter order no. 140 190 (1x)
Pos: 16.4 /BA/In betriebnahme/E asyCut/Vorbereit ung am Tra ktor Bild EC 28/32 @ 10\mod_1221 731786130_7 8.docx @ 1365 70@ @ 1
AFA-0-003
1
3
2
6
1
5
7
4

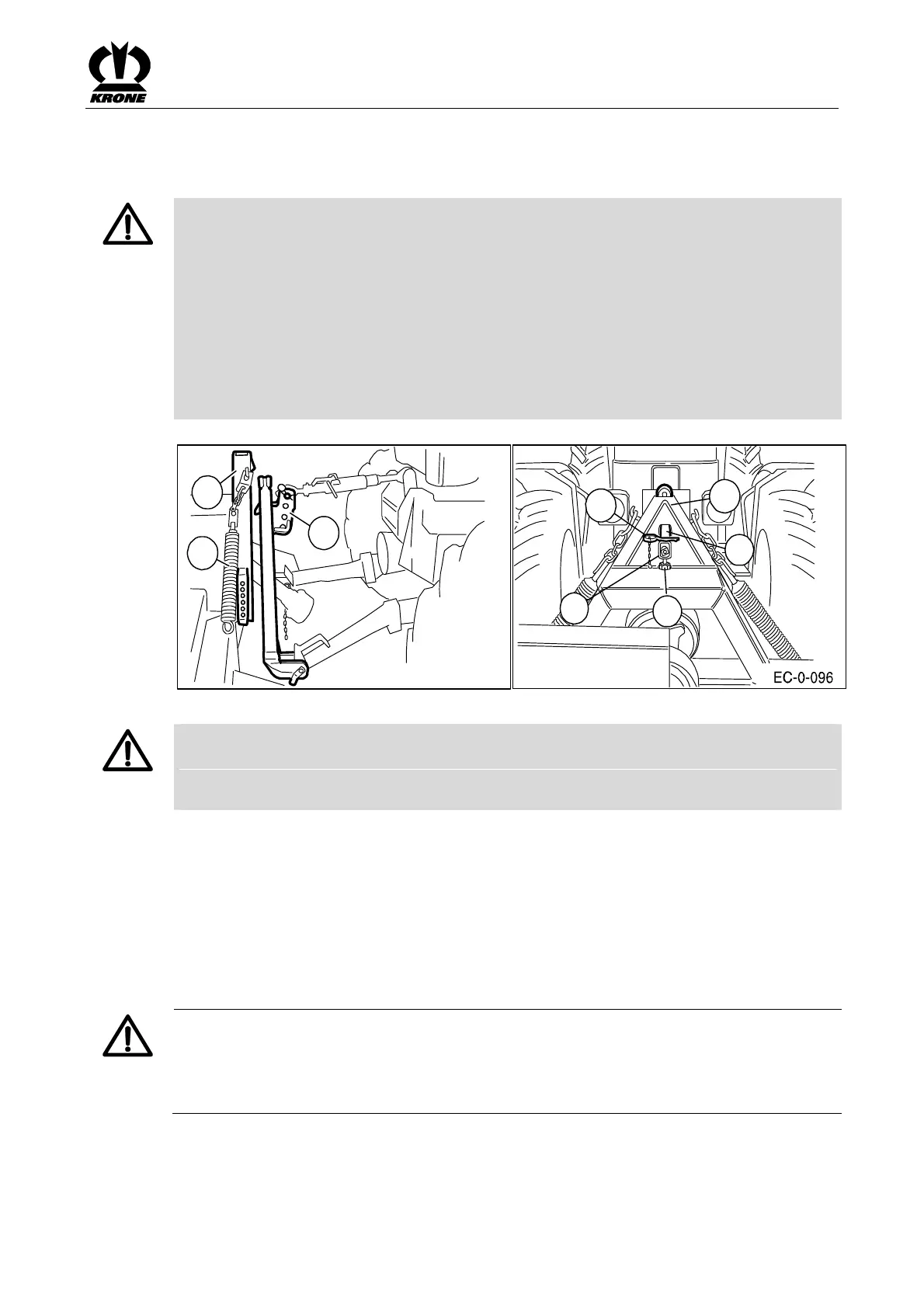

Fig. 9
Pos: 16.5 /BA/In betriebnahme/E asyCut/WARNUNG - ungeeign eten Federstec ker für das Kuppel dreieck (Weist e-Dreieck) verwendet @ 136\m od_1352385119 522_78.docx @ 1208527 @ @ 1
WARNING!
When using a spring clip which is not suitable, the triangle linkage (Weiste triangle) can
uncouple unintentionally. This can cause serious accidents.
Only use suitable spring clips for securing the triangle linkage.
Pos: 16.6 /BA/In betriebnahme/E asyCut/Vorbereit ung am Tra ktor EC 28/32CV 2 8/32 @ 10\mo d_122172865520 8_78.docx @ 1 36257 @ @ 1
• Carefully position the tractor with Weiste triangle (2) in front of the holder (1) of the front-
mounted disc mower.
• The tension spring (3) must not be inside the holder
• Connect the Weiste triangle (2) to the holder (1)
• Set the distance between the ratchet mechanism (4) and latch (5) by adjusting the ratchet
mechanism (4) to 1 mm (using the adjusting screw (7))
• Secure Weiste triangle (2) with spring cotter pin (6).
Pos: 16.7 /BA/In betriebnahme/E asyCut/Achtung Abstand der Masc hine zum Tra ktorz u gering @ 8 9\mod_132 1957875595_ 78.docx @ 756771 @ @ 1
Caution! - The distance between the machine and the tractor is too small
Effect: damage to the tractor or the machine
Check free space for the front wheels at all steering angles. If the guards or swath flaps come
into contact with the front wheels of the tractor, lower suspension arm adapters must be
installed between the lower suspension arm and the Weiste triangle.
