9.3 Adjusting the cutting height
Pos: 22.16 /BA/Ei nstellungen/M ähwerke/Schnit thöhe/Schnitthö he Bild EC 28/3 2@ 10\mod_122 1738803864_ 78.docx @ 1369 72 @ @ 1
AFA-0-012
1

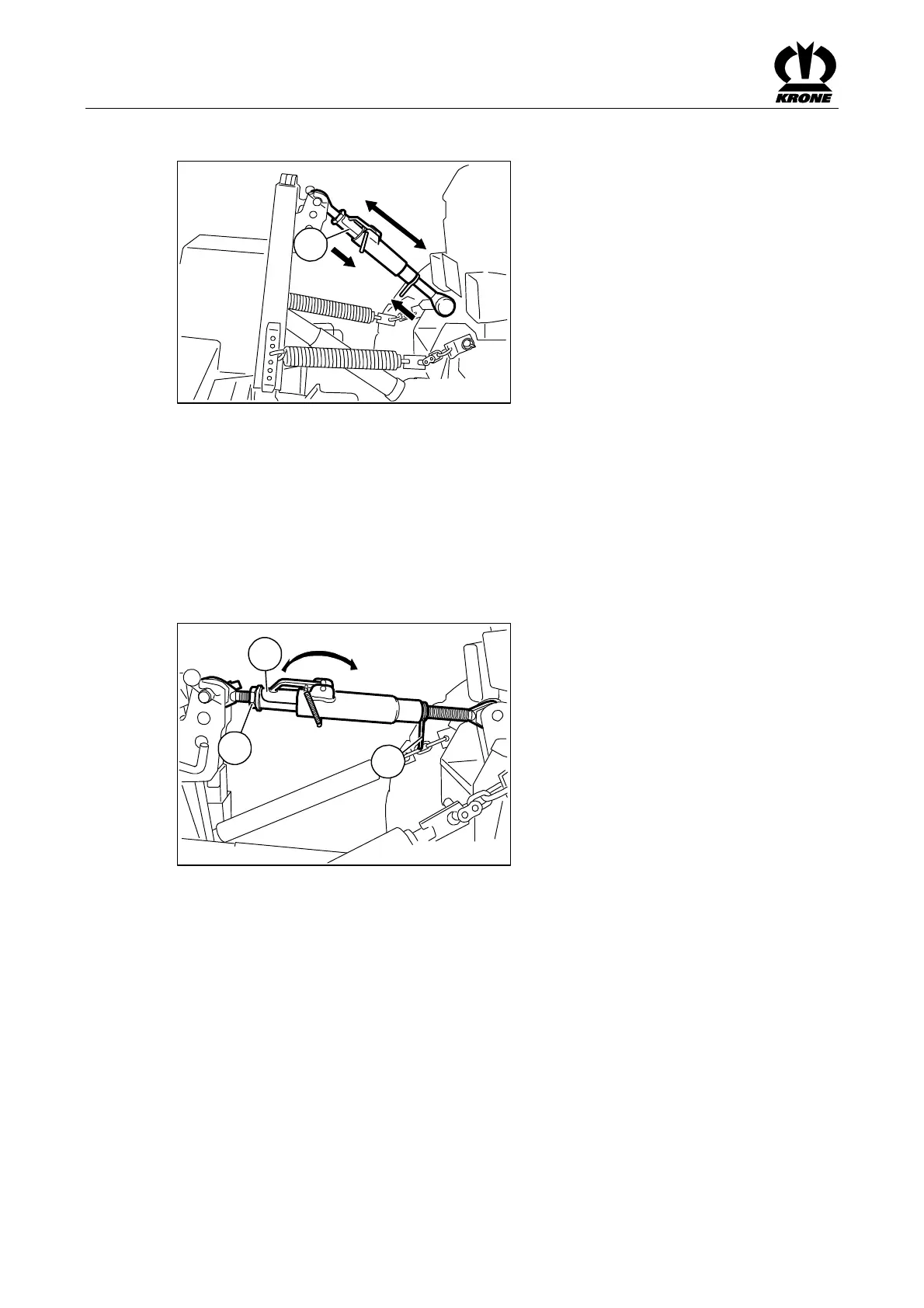

Fig. 20
Pos: 22.17 /BA/Ei nstellungen/M ähwerke/Schnit thöhe/Schnitthö he größer_gering er @ 0\mod_1 19666156247 8_78.docx @ 9 269 @ 2 @ 1
The cutting height is adjusted via the top link (1).
To do this:
• Lower the front mowing unit into working position
• Rotate the top suspension arm (1)
Top suspension arm longer = smaller cutting height
Top suspension arm shorter = bigger cutting height
Pos: 22.18 /BA/Ei nstellungen/M ähwerke/Telesko poberlenker @ 3\mod_120470 8776180_78.doc x @ 71835 @ 3 @ 1
9.3.1 Telescopic upper suspension arm
AFA-0-020
3
1
2
Fig. 21:
In order to allow the front-mounted disc mower to adapt to the ground in the direction of travel, a
telescopic upper suspension arm can be purchased as optional additional equipment. Via the
telescopic upper suspension arm, the cutting height is set by loosening the counter nut (2) and
(3). By moving the lockclip (1), the compression spring of the telescopic upper suspension arm
is released. This guarantees optimum adaptation of the front mowing unit in the direction of
travel.
