6.2 PTO shaft
Pos: 16.12 /BA/Sic herheit/Gele nkwelle/Gefahr - Sic h drehend eG elenkwelle_ 2@ 0\mod_1199 781692950_78. docx @ 34523 @ @ 1
Danger! - Rotating PTO shaft
Effect: Danger to life or serious injuries
• Install or detach the PTO shaft only with the engine switched off and the ignition key
removed.
• Secure the tractor against rolling.
• Make sure that the PTO shaft is coupled properly (the lock of the PTO shaft must have
snapped in).
• Make sure that the protective devices are attached properly.
• Never use a PTO shaft, the protective devices of which have not been attached.
• Replace damaged protective devices immediately
• Attach the safety chain of the PTO shaft so that the guard tube does not rotate
simultaneously with the PTO shaft.
Pos: 16.13 /BA/Sic herheit/Gele nkwelle/Gefahr - A ntriebsdrehza hl 1000 beachte n @ 3\mod_12 04700292070 _78.docx @ 7142 4 @ @ 1
Danger! - Observe drive speed
Effect: Danger to life or serious injuries
• This machine is driven at a maximum PTO speed of 1000 rpm.
Pos: 16.14 /Übersc hriften/Überschrif ten 3/K-O/L ängenanpass ung @ 1\mod_12 01687632810 _78.docx @ 5358 9 @ 32 @ 1
6.2.1 Length adjustment
Pos: 16.15 /BA/Ers tinbetriebna hme/EasyCut/L ängenanpassung /A nbau Gelen kwelle/Längenanp assung Gelenkwell e EC 32CVF @3 \mod_12 04701667336_78. docx @ 71443 @ @ 1
AFA-0-006
2
1

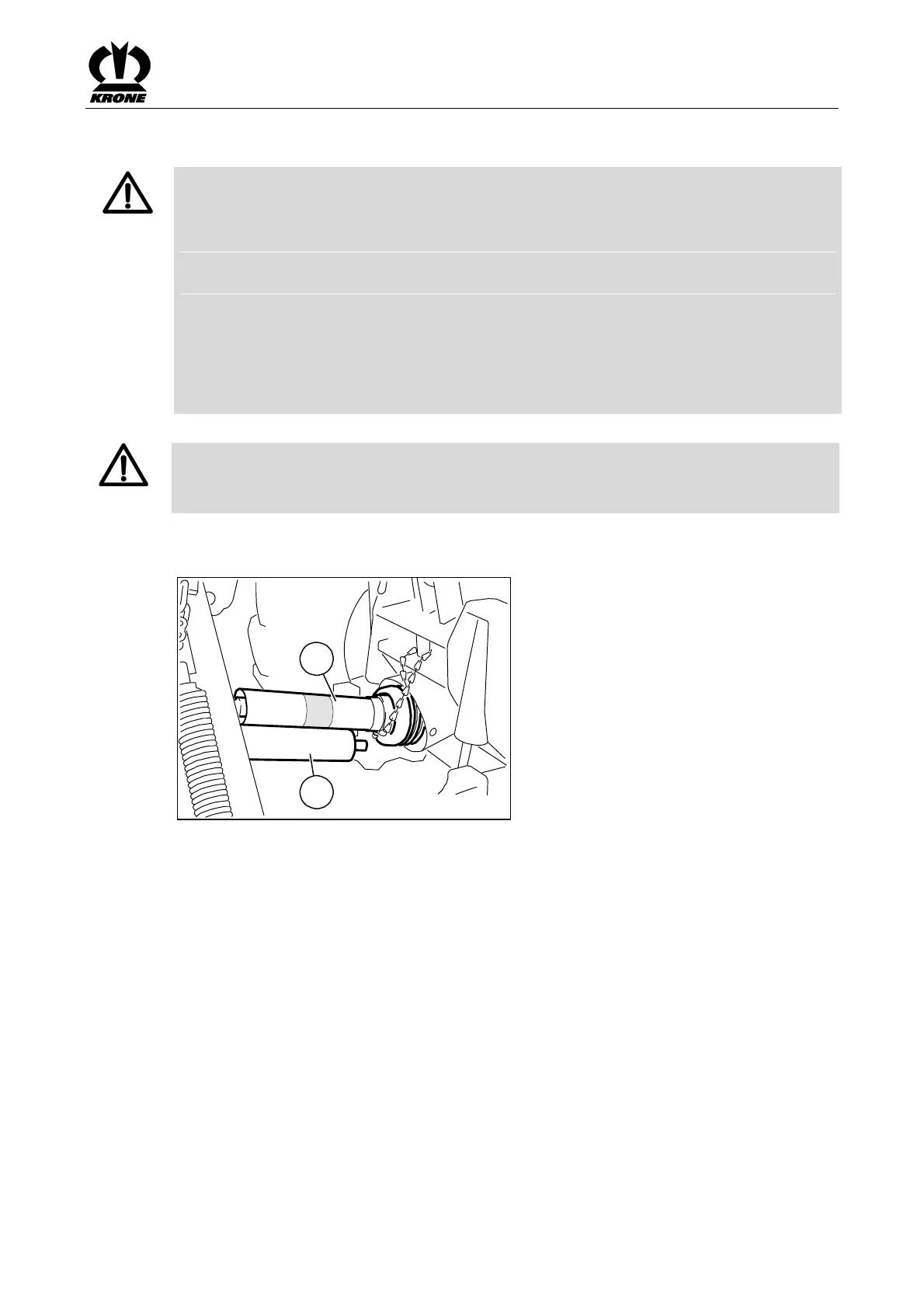

Fig. 11
• Hold the two PTO shaft halves (1) and (2) next to each other
• Check the cover of the special section tubes and guard tubes
• Shorten special section tubes and guard tubes until they can move freely in any operating
position
• For detailed information on adjusting the length, please refer to the operating instructions
of the PTO shaft manufacturer
