MAINTENANCE WORK ON CHASSIS AND ENGINE 106
700253-01

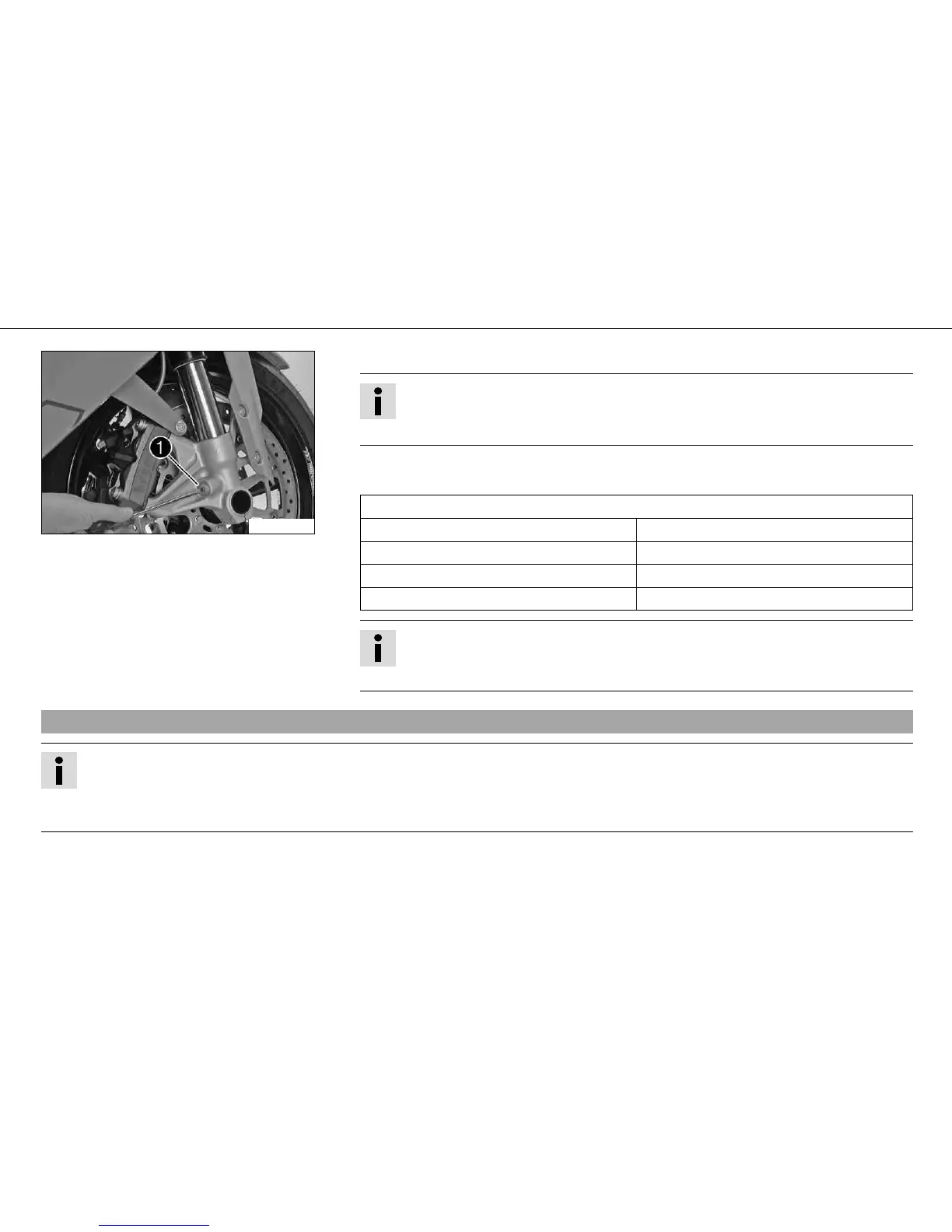

– Turn adjusting screws clockwise until they stop.
Info
The adjusting screws are located at the bottom end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise the number of clicks corresponding to the fork type.
Guideline
Compression damping
Comfort 15 clicks
Standard 10 clicks
Sport 5 clicks
Full payload 5 clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
9.7Adjusting rebound damping of fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
An optimally adjusted rebound damping brakes the springing energy and enables a fast, vibration-free resetting of the fork to the
zero position.
