MAINTENANCE WORK ON CHASSIS AND ENGINE 111
9.12Adjusting high-speed compression damping of the shock absorber
Danger
Danger of accidents The shock absorber is under high pressure.
– The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any mainte-
nance on it yourself.
Info
The high-speed setting can be seen during the fast compression of the shock absorber.

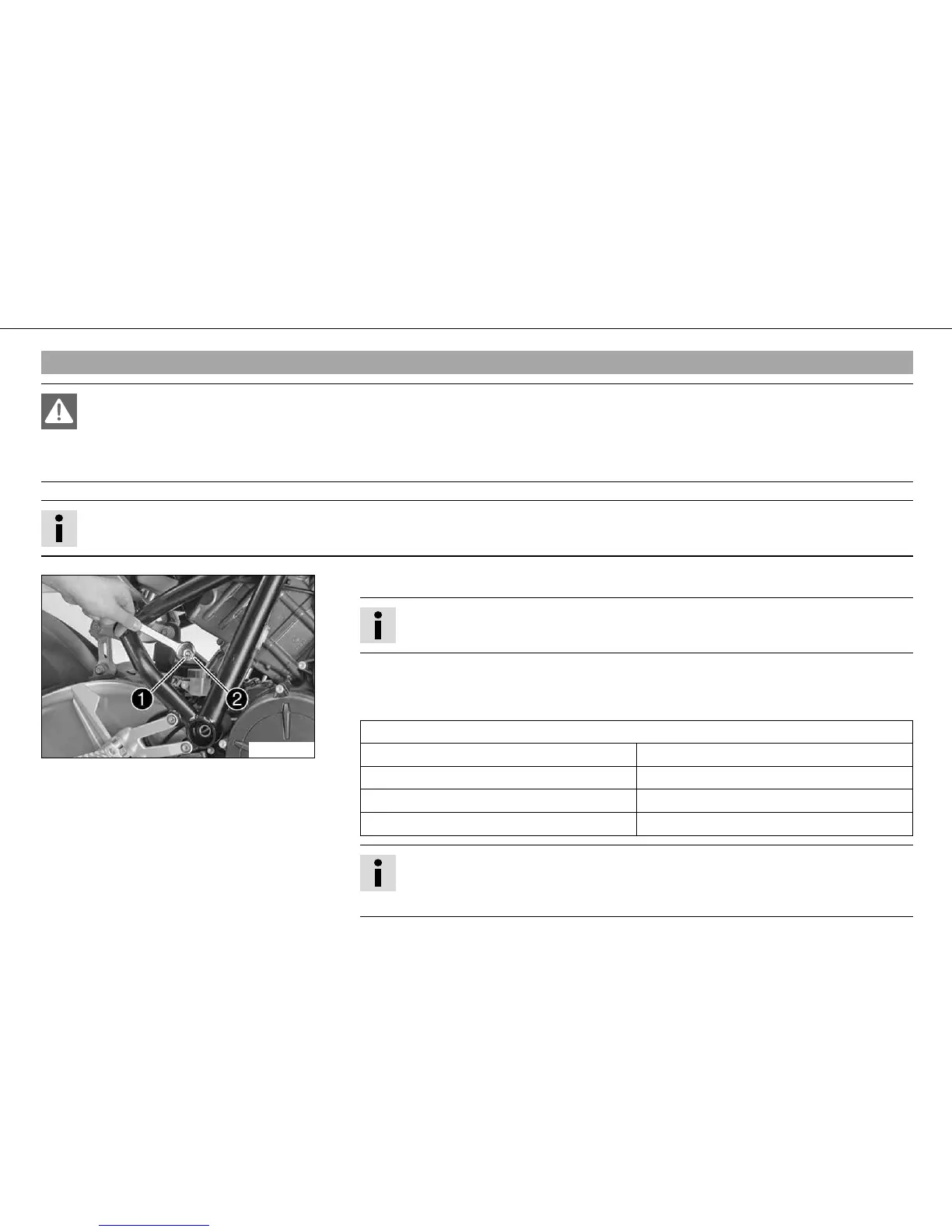

700256-01
– Turn the adjusting screw clockwise with an open-ended spanner until it stops.
Info
Do not loosen nut !
– Turn back counterclockwise the number of turns corresponding to the shock absorber
type.
Guideline
Compression damping, high-speed
Comfort 2 turns
Standard 1.5 turns
Sport 1 turn
full payload 1 turn
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
