MAINTENANCE WORK ON CHASSIS AND ENGINE 186
9.74Adjusting the handlebar height
Info
The handlebar stub position must be identical on the left and right of the vehicle.
700318-01

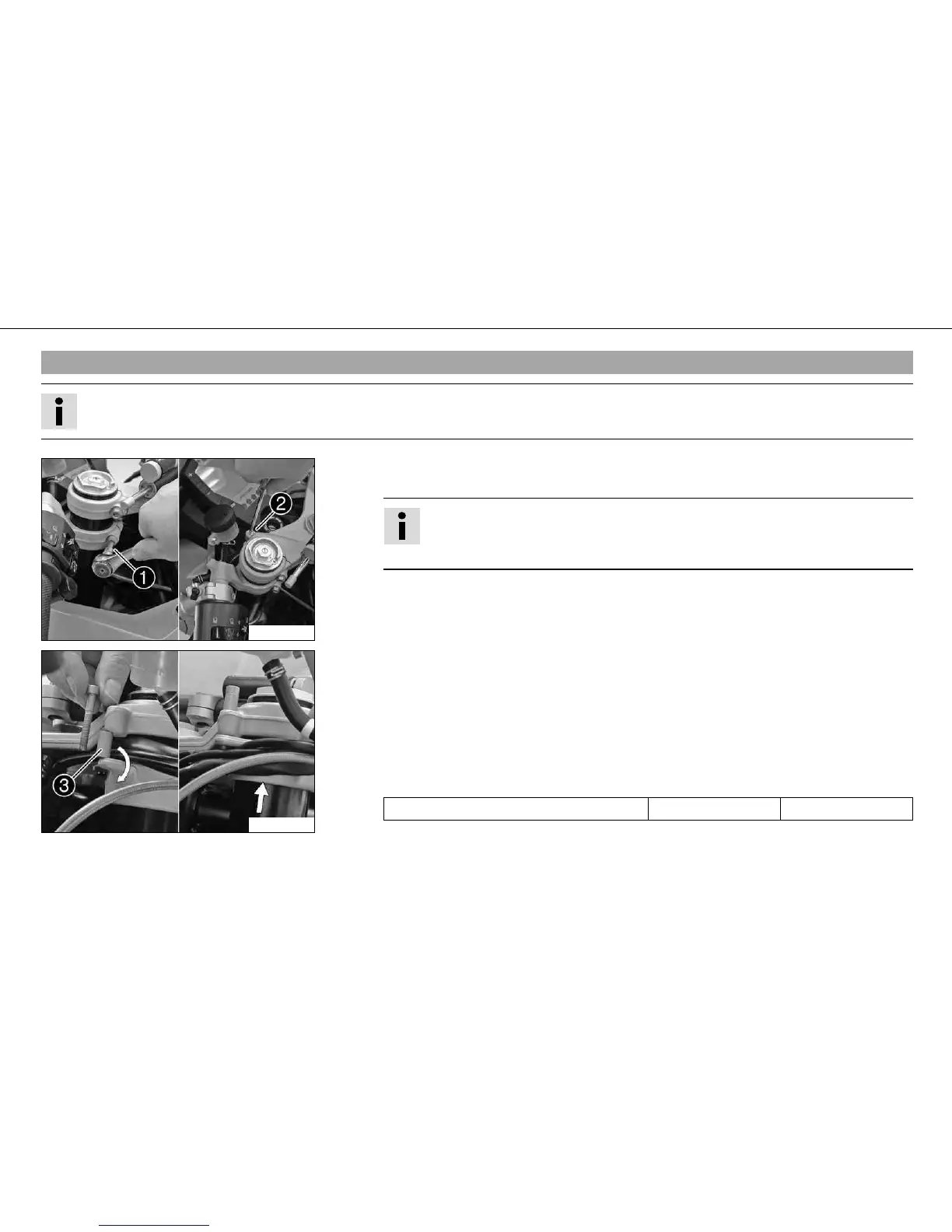

Adjusting the high position of the handlebar stubs:
– Loosen screw .
Info
Loosen the screw several turns to prevent damage to the fork lacquer when
moving the handlebar stub.
– Remove screw .
700319-01
– Remove distance sleeve .
– All cables routed under the upper triple clamp must now be routed under the han-
dlebar stub.
– Push the handlebar stub carefully up to the upper triple clamp.
– Position the distance sleeve above the triple clamp.
– Mount and tighten the screw.
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)
