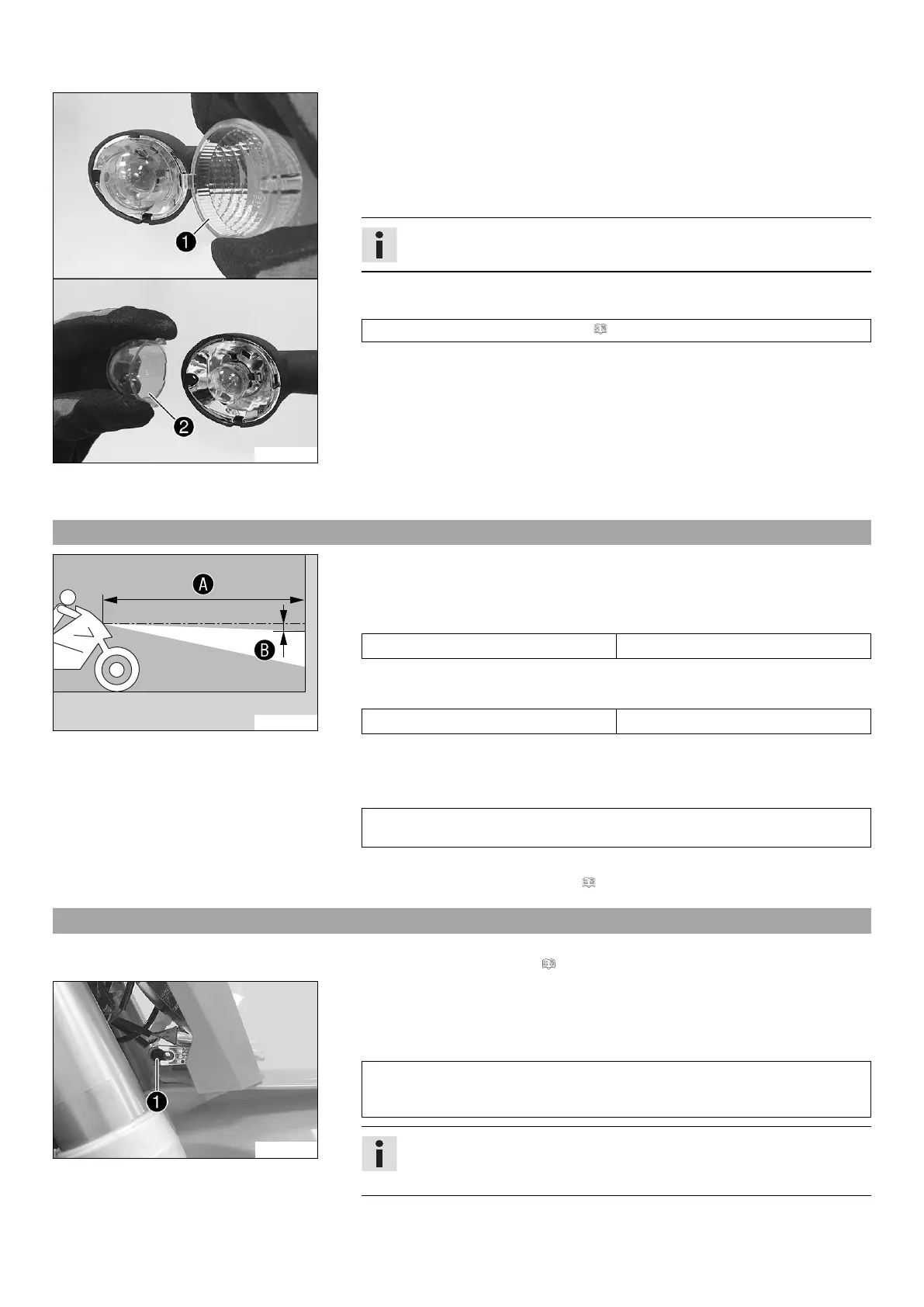

15 ELECTRICAL SYSTEM 99
E00360-10
Main work
– Remove the screw on the rear of the turn signal housing.
–
Carefully remove diffuser
.
–
Lightly squeeze orange cap
in the area of the holding lugs and take it off.
– Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise until
it stops.
Turn signal (R10W / socket BA15s) ( p. 120)
– Mount the orange cap.
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it engages in the thread.
Tighten the screw slightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.10 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of a light wall and make
a mark at the height of the center of the low beam headlight.
–
Make another mark a distance
under the first mark.
Guideline
Distance
5 cm (2 in)
–
Position the vehicle vertically at a distance
away from the wall.
Guideline
Distance
5 m (16 ft)
– The rider now sits down on the motorcycle.
– Switch on the low beam.
– Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.
» If the light-dark border does not meet specifications:
– Adjust the headlight range. ( p. 99)
15.11 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 99)
V00369-10
Main work
–
Loosen screw
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on the lower marking for
a motorcycle with rider (instructions on how to apply the marking: Checking the
headlight setting).
Info
A change in weight on the vehicle may require a correction of the headlight
range.
–
Tighten screw
.
