12 SERVICE WORK ON THE CHASSIS 64

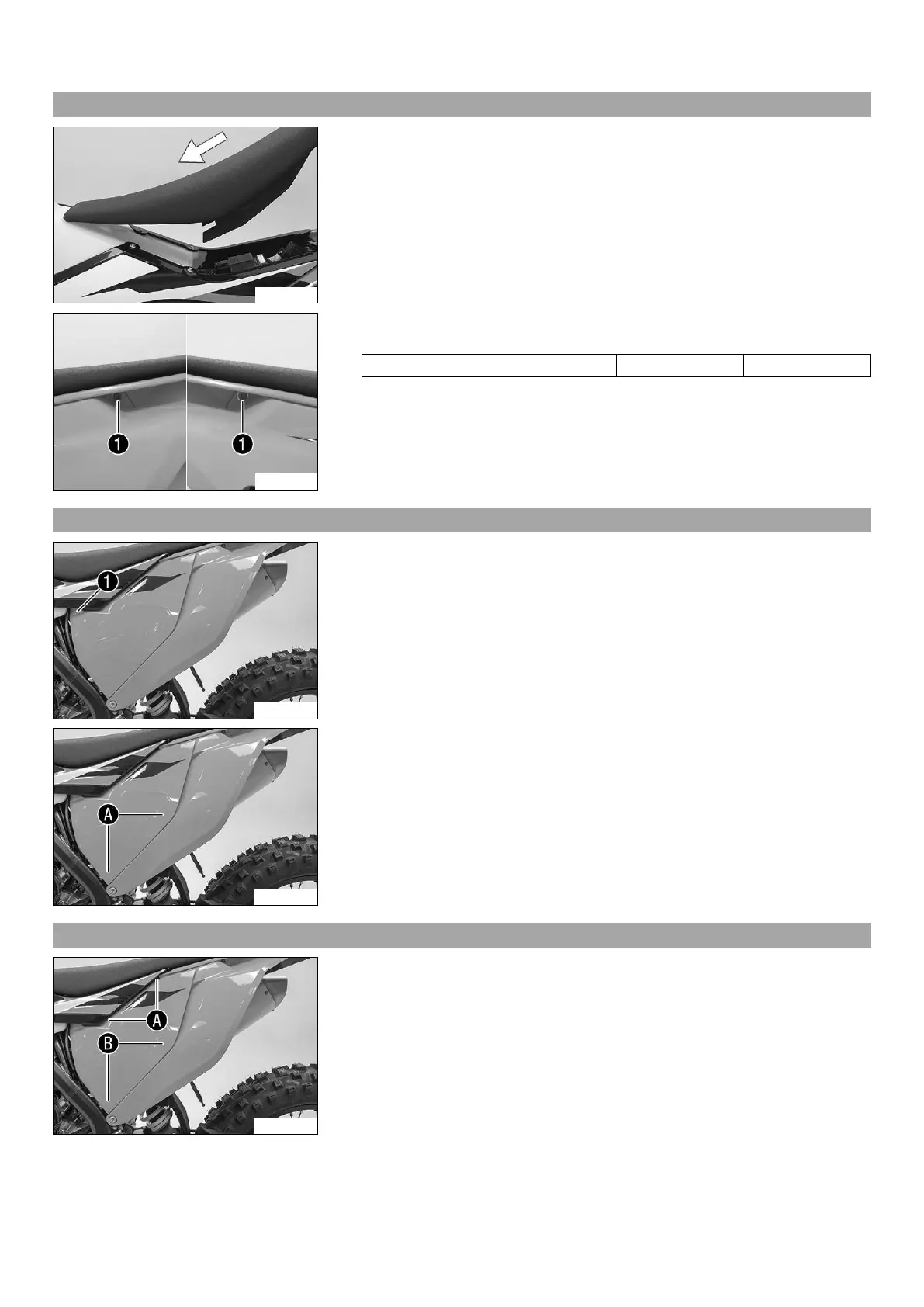

12.22 Mounting the seat
V00343-10
– Mount the front of the seat on the collar bushing of the fuel tank, lower the seat at
the rear, and push the seat forward.
– Make sure that the seat is correctly locked in.
V00342-10
–
Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
12.23 Removing the air filter box cover
K00554-10
Condition
The air filter box cover is secured.
–
Remove screw
.
K00554-11
–
Pull off the air filter box cover in area
sideways and remove it toward the front.
12.24 Installing the air filter box cover
K00554-12
–
Insert the air filter box cover in area
and clip it into area
.
