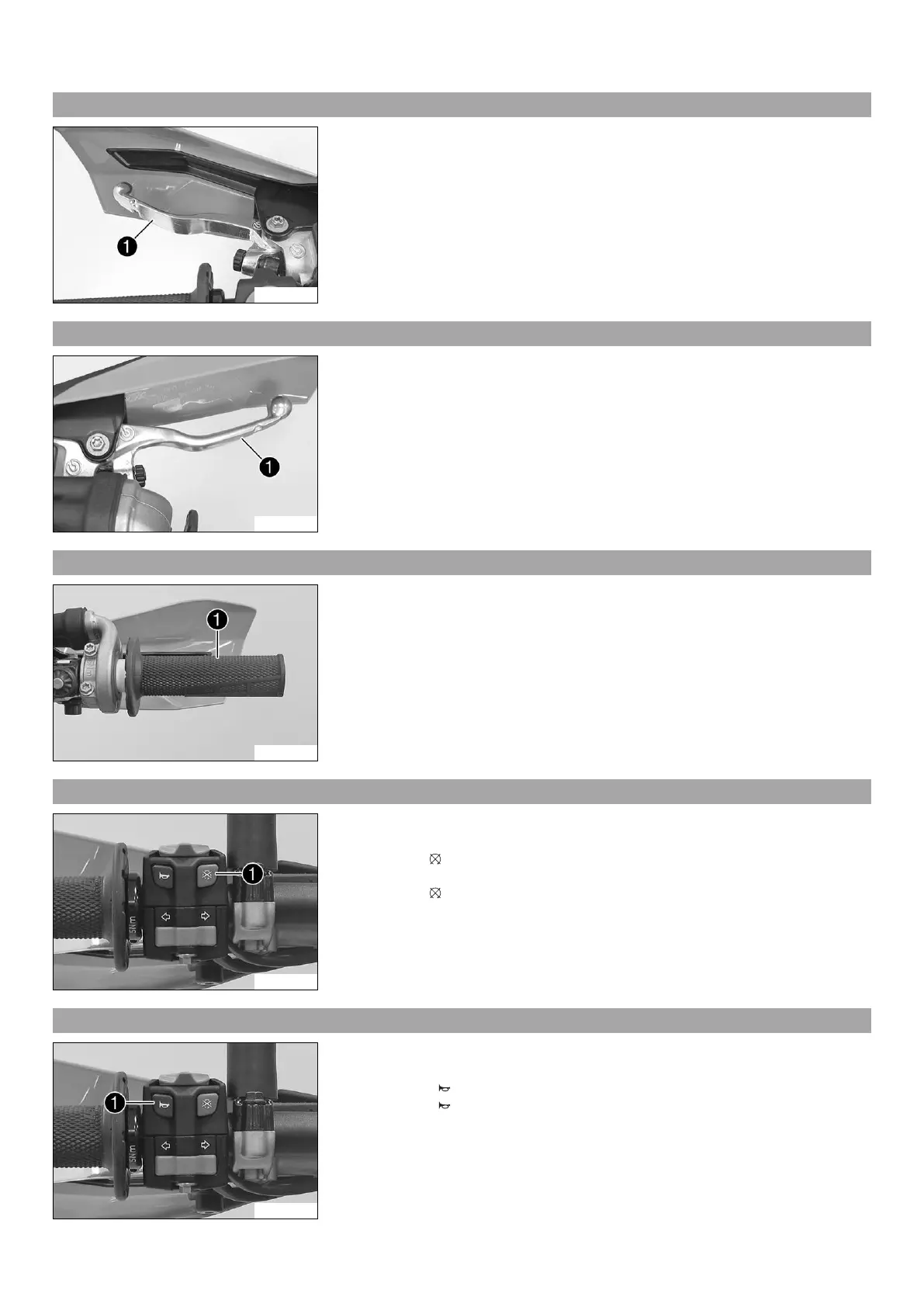

6 CONTROLS 14
6.1 Clutch lever
S01305-10
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
S01306-10
The hand brake lever
is fitted on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
S01308-10
The throttle grip
is fitted on the right side of the handlebar.
6.4 Kill switch
S01302-10
Kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and
the engine can be started.
• Kill switch is pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
6.5 Horn button
S01303-10
The horn button
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
