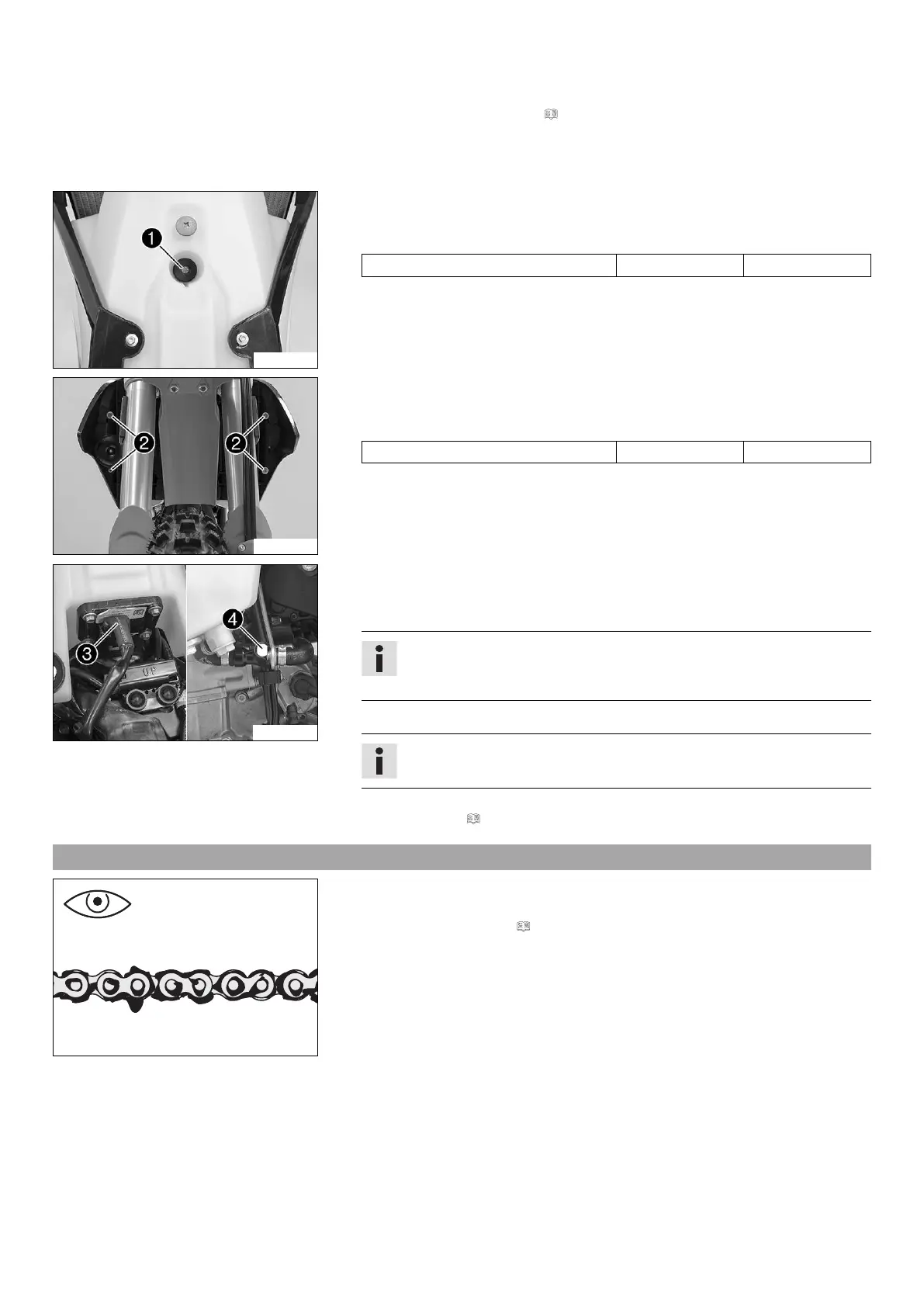

12 SERVICE WORK ON THE CHASSIS 70
Main work
– Check throttle cable routing. ( p. 75)
– Position the fuel tank and fit the two spoilers to the sides in front of the radiator
bracket.
– Make sure that no cables or throttle cables are trapped or damaged.
K00556-10
– Attach the fuel tank breather hose.
–
Mount and tighten screw
with the rubber bushing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
K00558-11
– Position the horn with the horn bracket.
–
Mount and tighten screws
with the collar bushings.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
H01699-10
–
Plug in connector
for the fuel pump.
– Remove the wash cap set.
– Thoroughly clean the plug-in connection of the fuel line using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel
line clogs the injection valve!
–
Lubricate the O-ring and connect plug-in connection
for the fuel line.
Info
Route the cable and fuel line at a safe distance from the exhaust system.
Finishing work
– Mount the seat. ( p. 64)
12.35 Checking for chain dirt accumulation
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 71)
