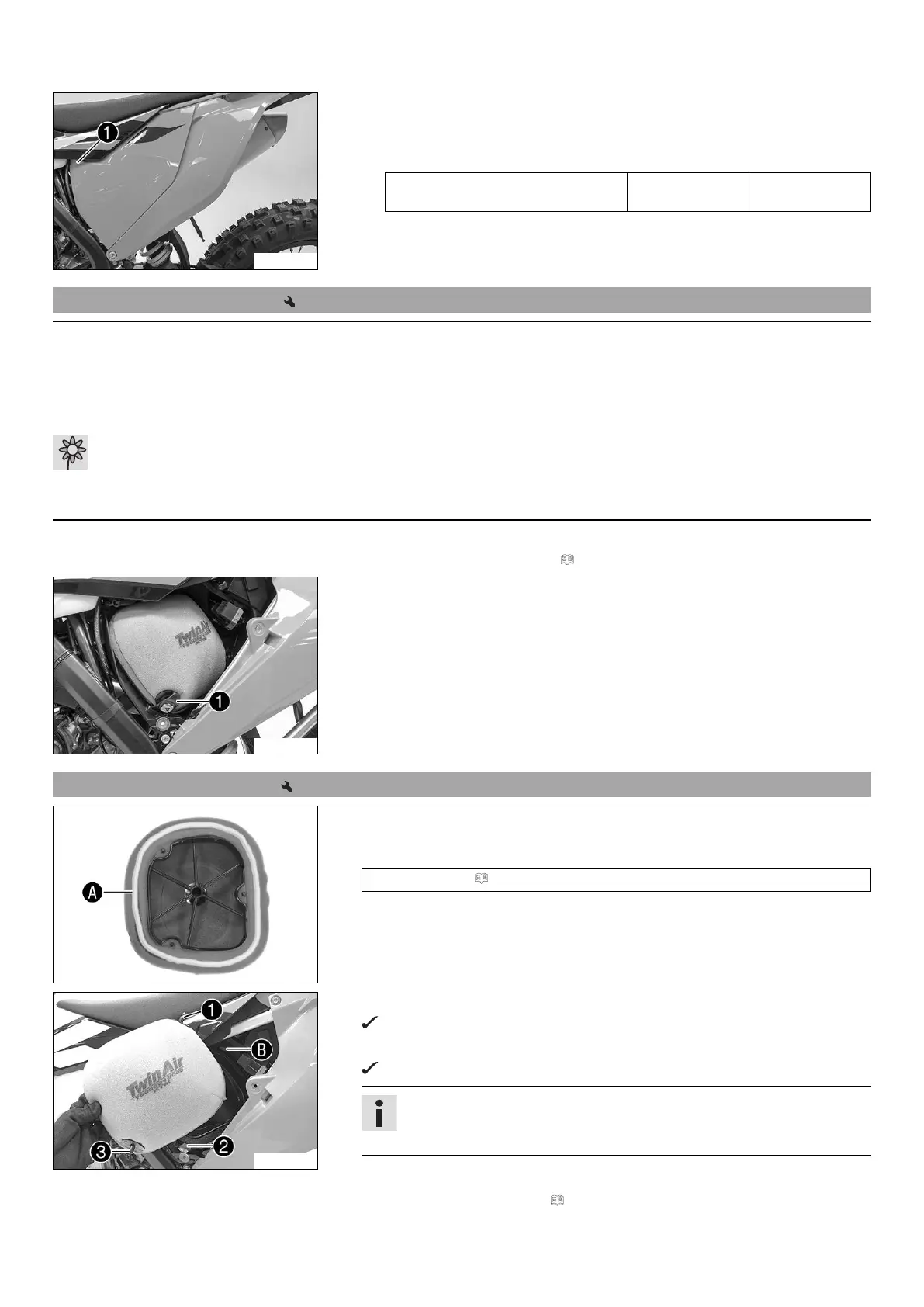

12 SERVICE WORK ON THE CHASSIS 65
K00554-10
Condition
The air filter box cover is secured.
–
Mount and tighten screw
.
Guideline
Screw, air filter box cover EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
12.25 Removing the air filter
Note
Engine damage Unfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
– Never start to use the vehicle without an air filter.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regu-
lations.
Preparatory work
– Remove the air filter box cover. ( p. 64)
K00552-10
Main work
–
Detach retaining tab
. Remove air filter with air filter support.
– Remove air filter from air filter support.
12.26 Installing the air filter
L00943-10
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in area
.
Long-life grease ( p. 125)
E00400-10
–
Insert air filter and position retaining pin
in bushing
.
The air filter is correctly positioned.
–
Insert retaining tab
.
Retaining pin
is secured by retaining tab
.
Info
If the air filter is not mounted correctly, dust and dirt may enter the engine
and result in damage.
Finishing work
– Install the air filter box cover. ( p. 64)
