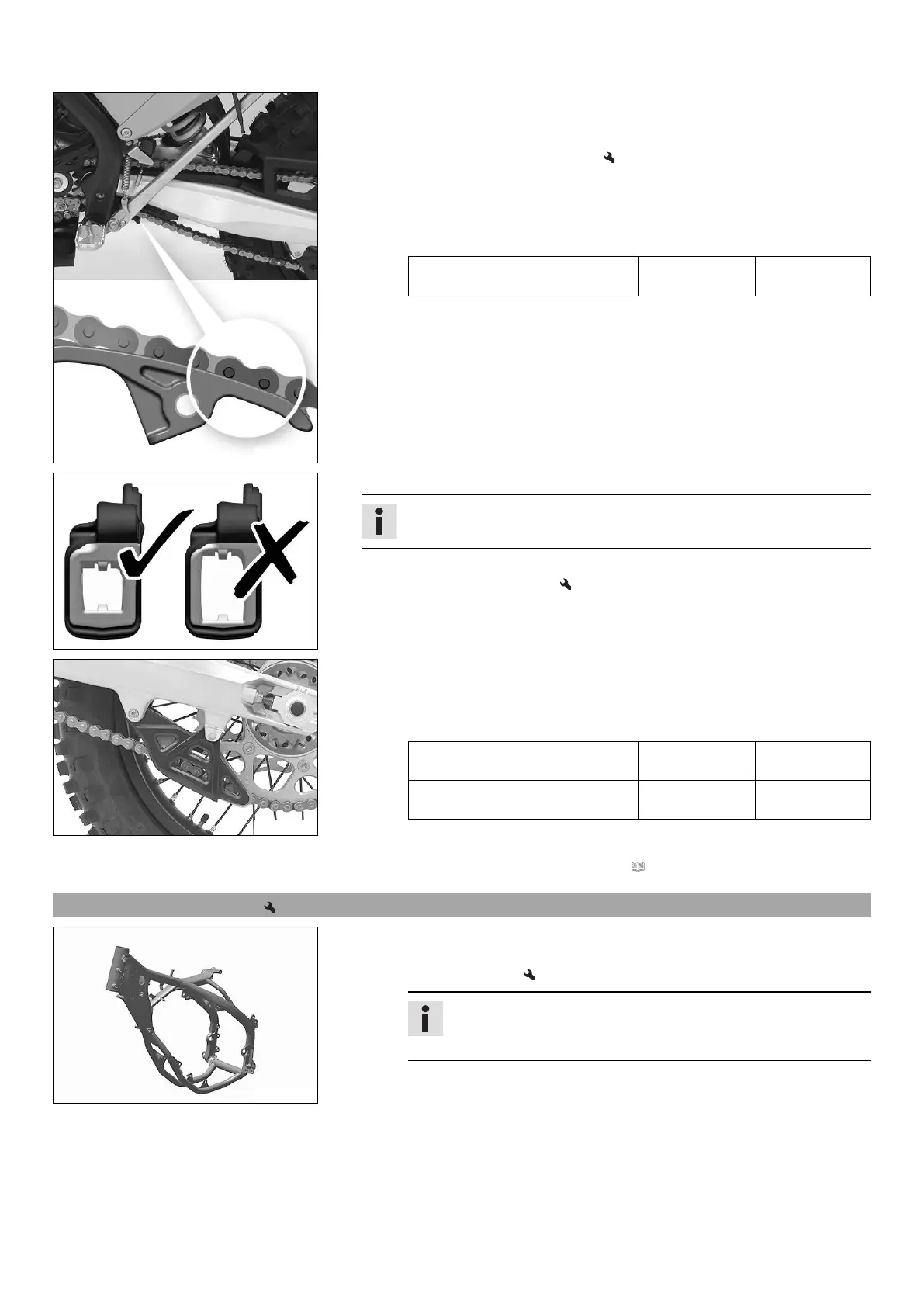

12 SERVICE WORK ON THE CHASSIS 74
E00403-10
– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the screw of the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
401760-01
– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide.
E00333-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 52)
12.40 Checking the frame
S01316-10
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
– Change the frame.
Info
Always replace a frame that has been damaged due to a mechanical
impact. Repair of the frame is not authorized by KTM.
