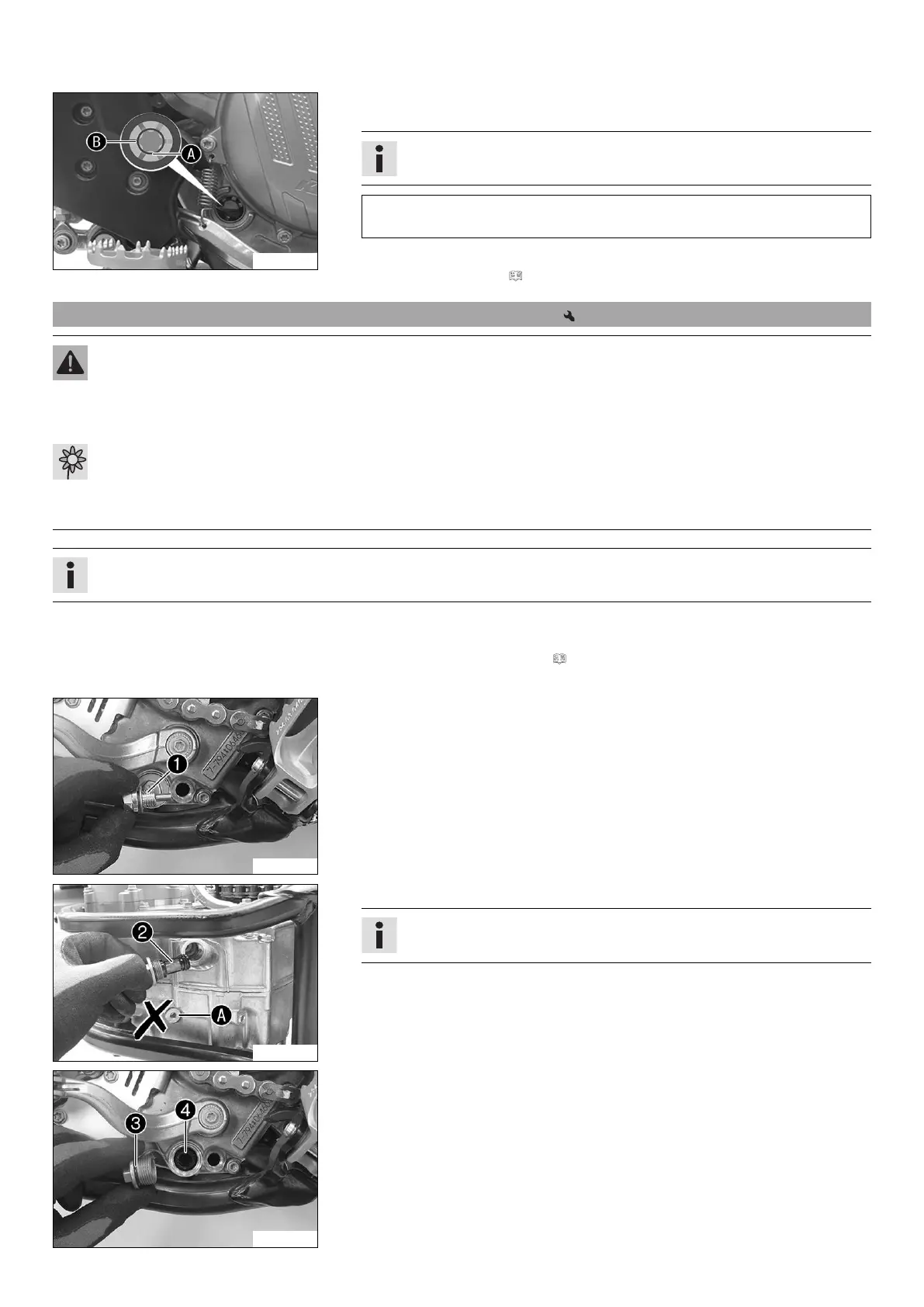

18 SERVICE WORK ON THE ENGINE 109
H01702-10
Main work
– Check the engine oil level.
Info
After switching off the engine, wait one minute before checking the level.
The engine oil is at a level between lower edge
and the middle of level
viewer
.
»
If the engine oil is not up to lower edge
of the level viewer:
– Add engine oil. ( p. 111)
18.3 Changing the engine oil and oil filter, cleaning the oil screens
Warning
Danger of scalding Engine and gear oil get very hot when the motorcycle is ridden.
– Wear suitable protective clothing and safety gloves.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regu-
lations.
Info
Drain engine oil with engine at operating temperature.
Preparatory work
(EXC‑F Six Days, EXC‑F AU)
– Remove the engine guard. ( p. 78)
– Park the motorcycle on a level surface.
H01703-10
Main work
– Place a suitable container under the engine.
–
Remove oil drain plug
with the magnet and seal ring.
H01704-10
–
Remove screw plug
with the short oil screen and the O-rings.
Info
Do not remove screw
.
H01705-10
–
Remove screw plug
with the long oil screen
and the O-rings.
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing surfaces.
