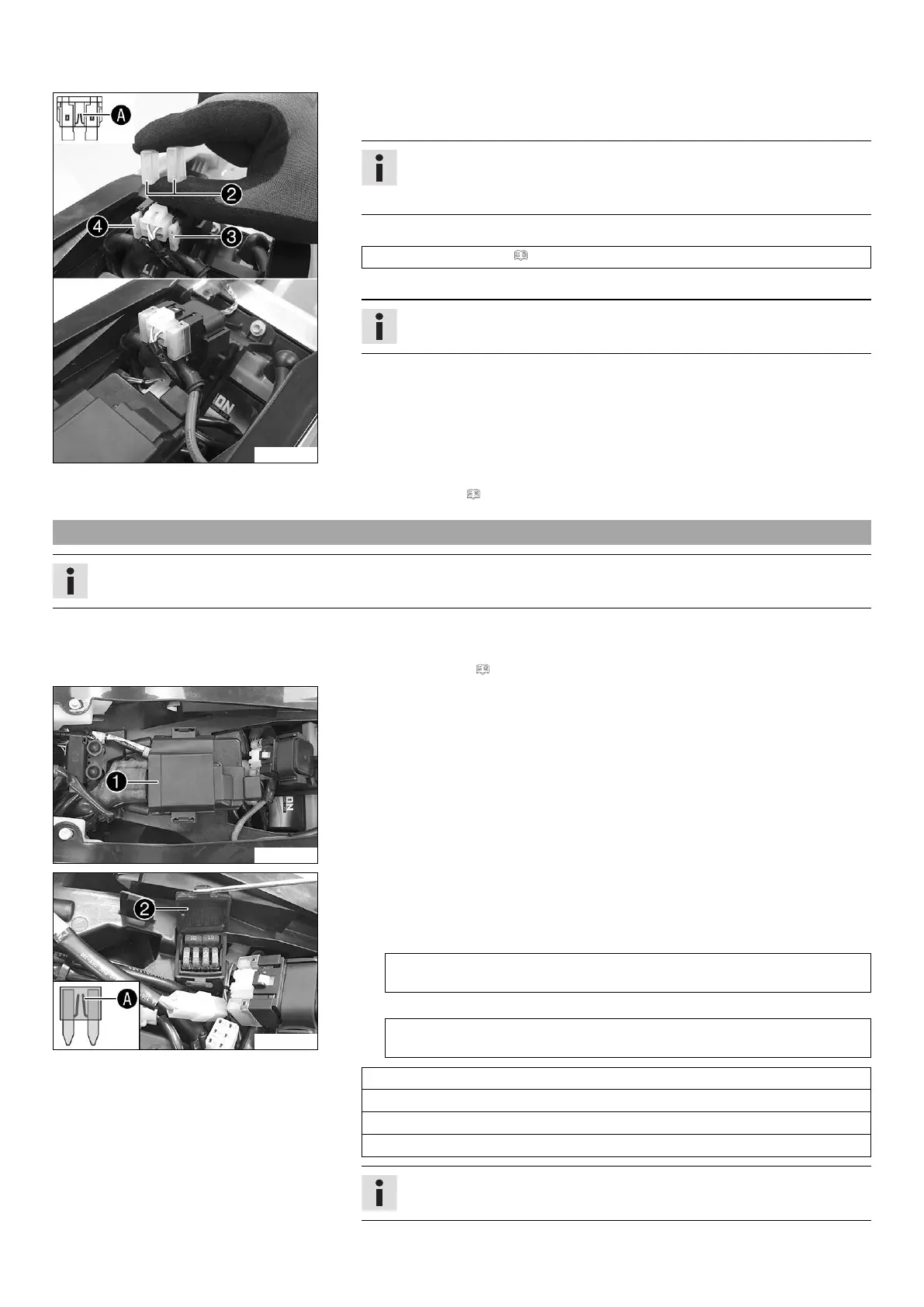

15 ELECTRICAL SYSTEM 96
E00362-10
–
Take off protection caps

.
–
Remove faulty main fuse

.
Info
You can recognize a defective fuse by a burned-out fuse wire

.
A spare fuse

is located in the starter relay.
– Install a new main fuse.
Fuse (58011109120) ( p. 120)
– Check that the electrical equipment is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the starter relay onto the holder and route the cable.
– Mount the protection caps.
Finishing work
– Mount the seat. ( p. 64)
15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 63)
E00394-10
Main work
–
Pull EFI control unit

from the holder and hang it to one side.
E00395-10
–
Open fuse box cover

.
– Remove the defective fuse.
Guideline
(EXC‑F EU, EXC‑F Six Days EU)
Fuse 1 ‑ 10 A - EFI control unit, lambda sensor, speedometer, combination
switch (optional), fuel injection, diagnostics connector, fuse 4
(EXC‑F AU)
Fuse 1 ‑ 10 A - EFI control unit, speedometer, combination switch (optional),
fuel injection, diagnostics connector, fuse 4
Fuse 2 - 10 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 3 - 10 A - radiator fan, horn, brake light, turn signal
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
Info
You can recognize a defective fuse by a burned-out fuse wire

.
