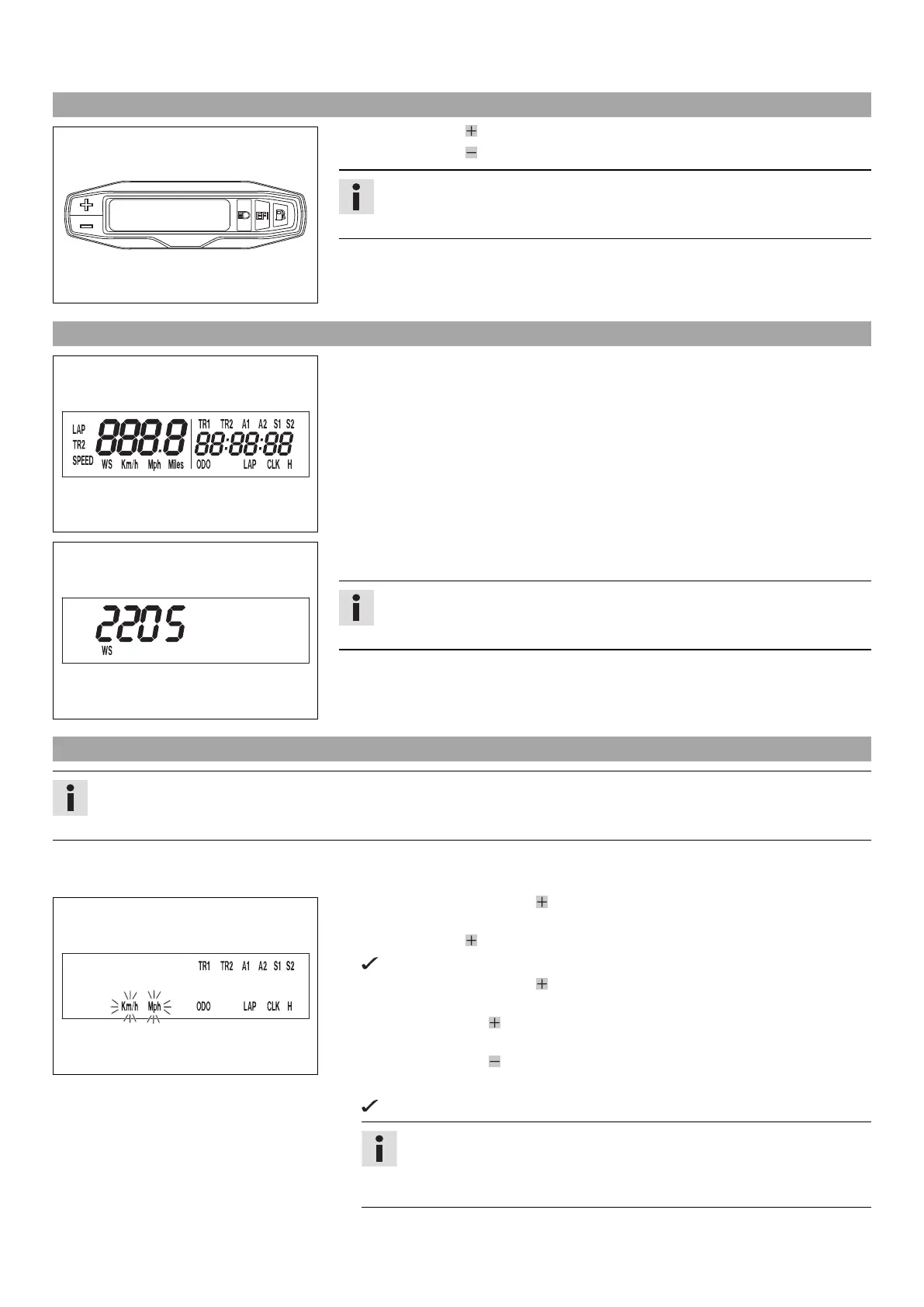

7 SPEEDOMETER 21
7.1 Speedometer overview
401761-01
– Press the button to control different functions.
– Press the button to control different functions.
Info
When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes
are activated.
7.2 Activation and test
400313-01
Activating the speedometer
The speedometer is activated when one of the buttons is pressed or an impulse comes
from the wheel speed sensor.
Display test
To enable you to check that the display is functioning properly, all display segments
light up briefly.
400314-01
WS (wheel size)
After the display function check, the wheel size WS is displayed briefly.
Info
The number 2205 equals the circumference of the 21" front wheel with stan-
dard tires.
The display then changes to the last selected mode.
7.3 Setting kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1 , TR2 , A1 , A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
400329-01
– Repeatedly press the button briefly until H appears at the bottom right of the
display.
– Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are shown.
– Repeatedly press the button briefly until Km/h/Mph flashes.
Setting the Km/h
– Press the button .
Setting the Mph
– Press the button .
– Wait 3–5 seconds
The settings are stored.
Info
If no button is pressed for 10 -12 seconds, or if an impulse comes from
the wheel speed sensor, the settings are automatically saved and the setup
menu is closed.
