15 ELECTRICAL SYSTEM 97
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 120)
Fuse (58011109105) ( p. 120)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
–
Mount EFI control unit
on the holder.
Finishing work
– Mount the seat. ( p. 64)

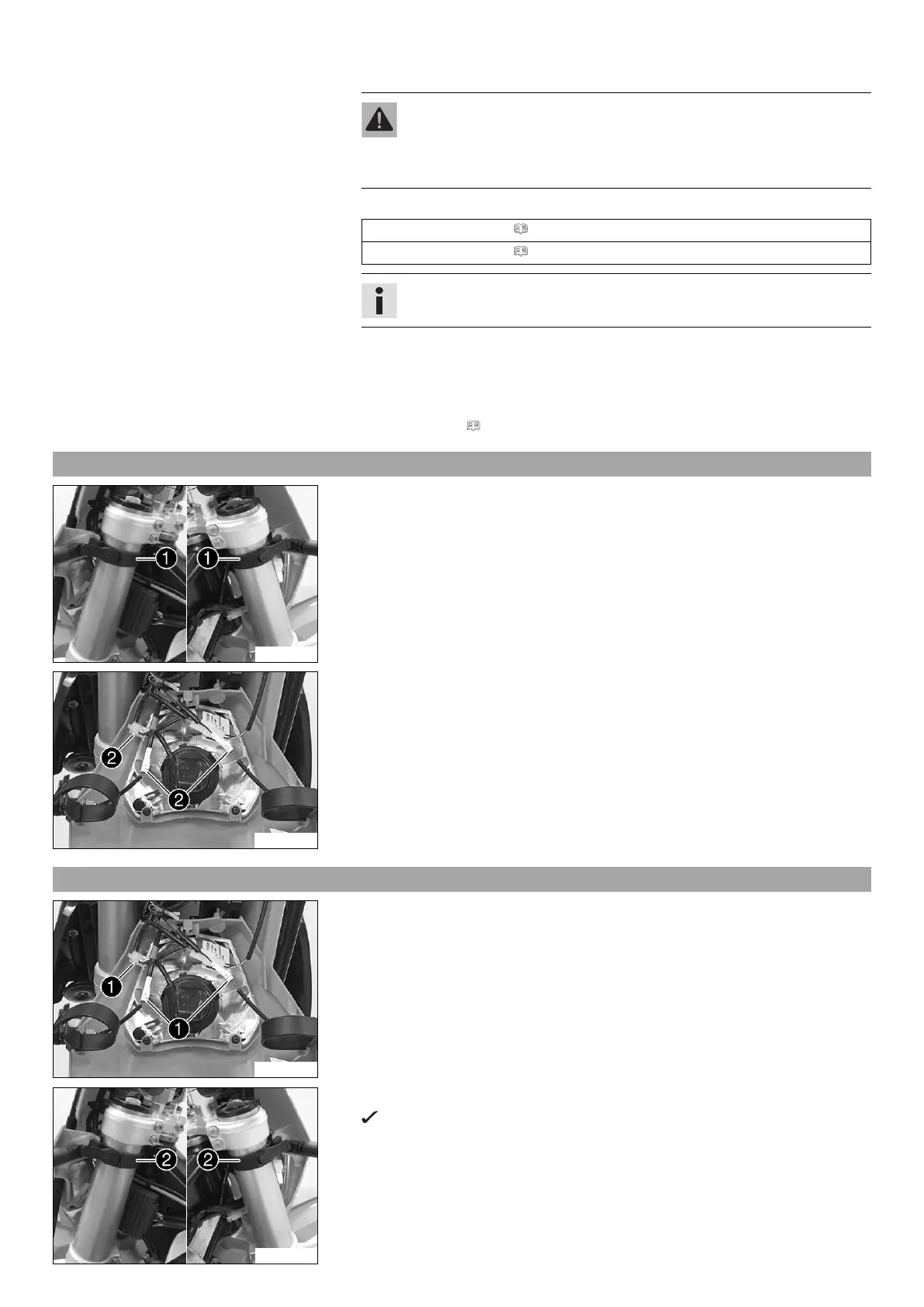

15.6 Removing the headlight mask with the headlight
V00458-10
– Switch off all power consumers and switch off the engine.
– Detach the brake line and wiring harness from the headlight mask.
–
Release rubber bands
. Slide the headlight mask up and swing it forward.
S01328-10
–
Detach plug-in connectors
and take off the headlight mask with the headlight.
15.7 Installing the headlight mask with the headlight
S01328-11
Main work
–
Connect plug-in connectors
.
V00458-11
–
Position the headlight mask and fix it with rubber bands
.
The holding lugs engage in the fender.
– Position the brake line and wiring harness in the brake line guide.
