KTM 500 EXC-F 2023 User Manual

15 ELECTRICAL SYSTEM
114

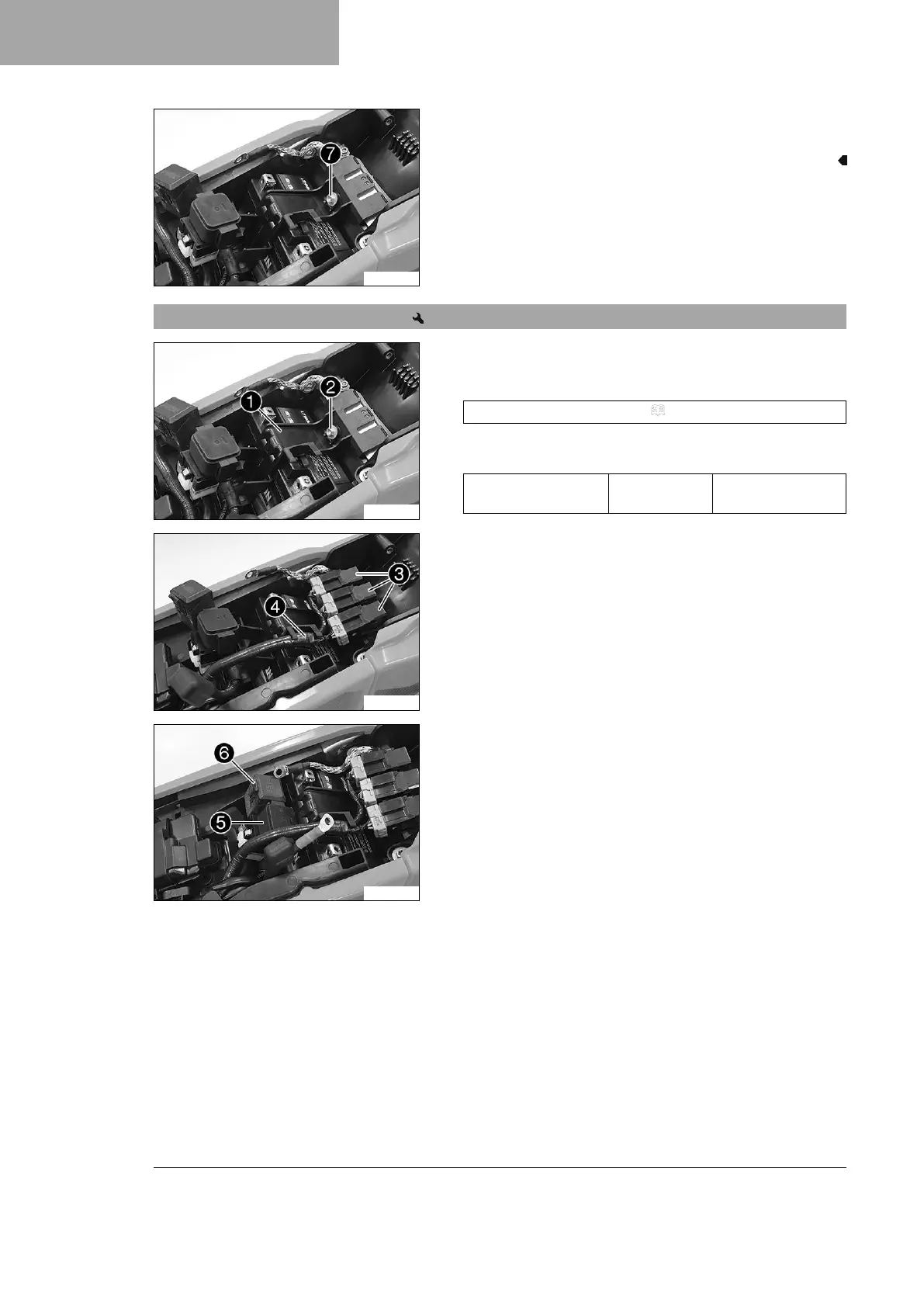

V01779-10
–
Remove screw
7
and detach the battery compartment.
– Lift out the 12-V battery.
15.2 Installing the 12-V battery
V01779-11
Main work
– Insert the 12 V battery into the battery compartment with the
terminals facing forward and secure with holding bracket
1
.
12-V battery (HJTZ5S-FP‑C) ( p. 151)
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V01778-11
–
Mount relays
3
and attach wiring harness
4
.
V01777-11
–
Mount starter relay
5
and fuse box
6
.

KTM 500 EXC-F 2023 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Weight (without fuel)	106.5 kg
Seat Height	960 mm
Ground Clearance	355 mm
ABS	No
Engine Type	Single Cylinder, 4-Stroke
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central double-cradle type 25CrMo4 steel
