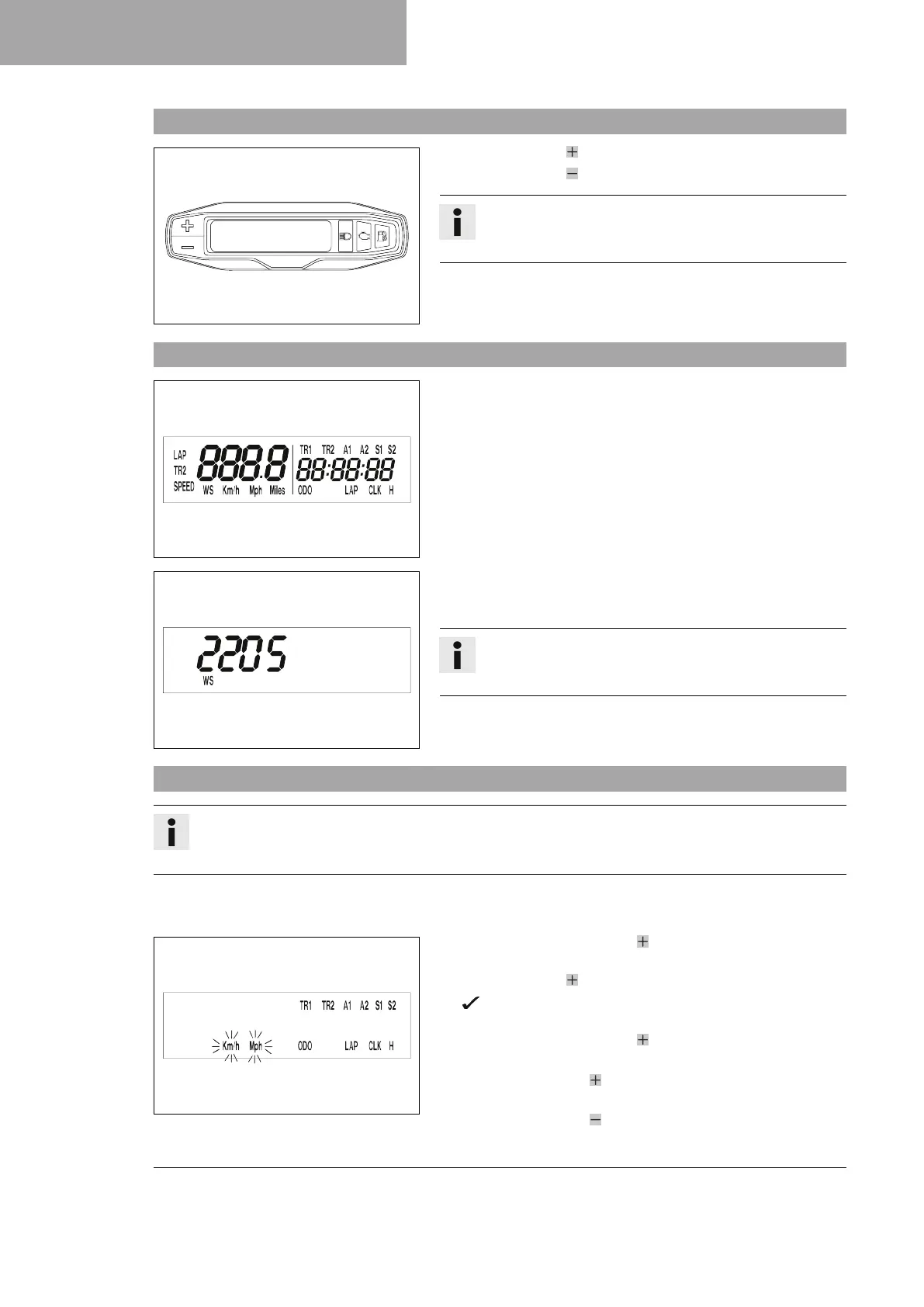

7 COMBINATION INSTRUMENT
26
7.1 Combination instrument overview
V00799-01
– Press the button to control different functions.
– Press the button to control different functions.
Info
When the vehicle is delivered, only the SPEED/H and
SPEED/ODO display modes are activated.
7.2 Activation and test
400313-01
Activating combination instrument
The combination instrument is activated when one of the buttons
is pressed or an impulse comes from the wheel speed sensor.
Display test
To enable you to check that the display is functioning properly, all
display segments light up briefly.
400314-01
WS (wheel size)
After the display function check, the wheel circumference WS is
displayed briefly.
Info
The number 2205 equals the circumference of the 21"
front wheel with standard tires.
The display then changes to the last selected mode.
7.3 Setting kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1, TR2, A1, A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
400329-01
– Repeatedly press the button briefly until H appears at the
bottom right of the display.
– Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are
shown.
– Repeatedly press the button briefly until Km/h/Mph flashes.
Adjusting the Km/h
– Press the button .
Adjusting the Mph
– Press the button .
