KTM 500 EXC-F 2023 User Manual

ELECTRICAL SYSTEM 15
123
V01807-10

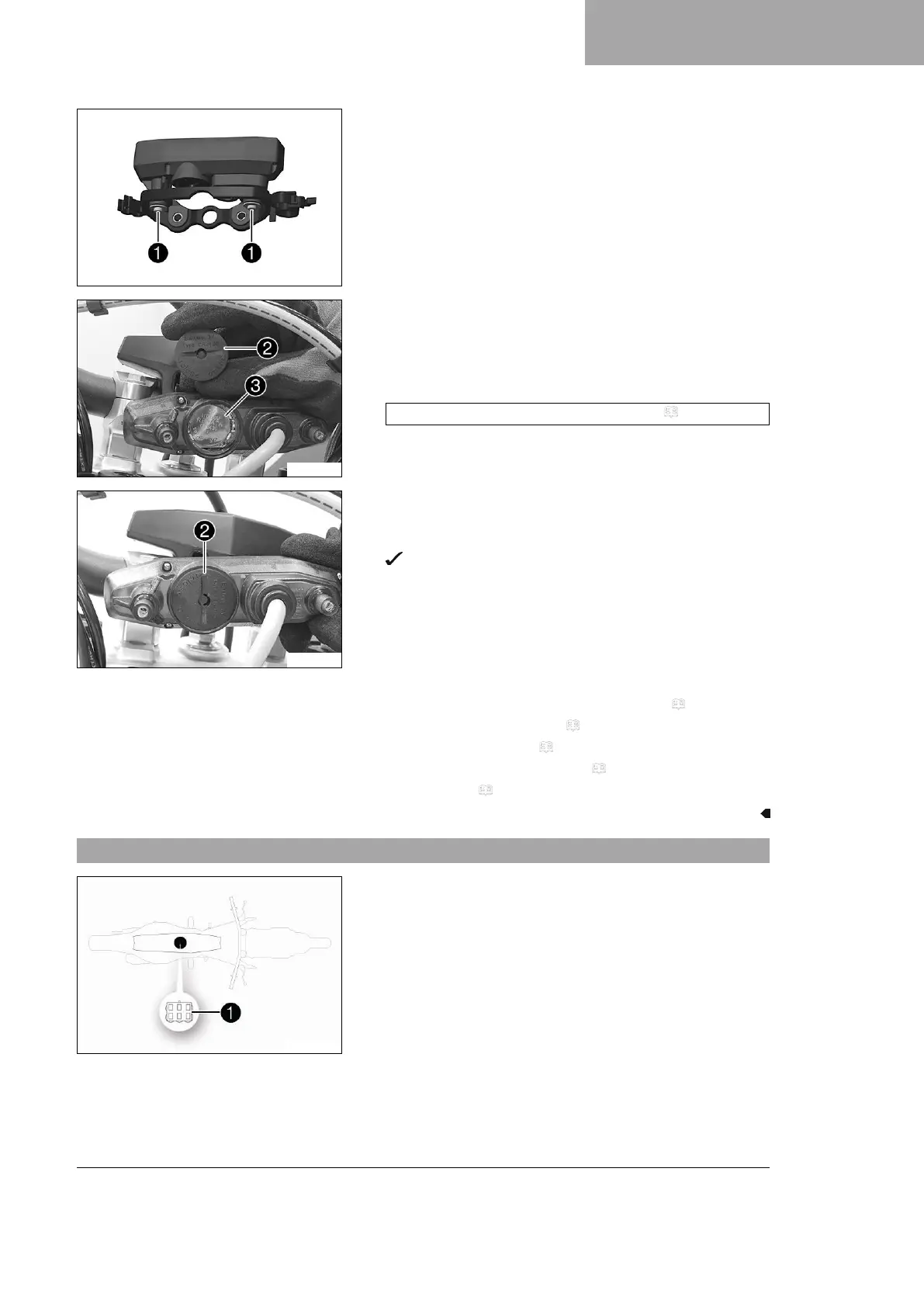

Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
V00371-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and take it off.
–
Remove combination instrument battery
3
.
– Insert the combination instrument with the label facing
upward.
Combination instrument battery (CR 2430) ( p. 151)
– Check the O-ring of the protection cap for correct seating.
V00372-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
Finishing work
– Install the headlight mask with the headlight. ( p. 120)
– Check the headlight setting. ( p. 121)
– Set kilometers or miles. ( p. 26)
– Set the combination instrument. ( p. 27)
– Set the clock. ( p. 27)
15.13 Diagnostics connector
H00933-12
Diagnostics connector
1
is located under the seat.

KTM 500 EXC-F 2023 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Weight (without fuel)	106.5 kg
Seat Height	960 mm
Ground Clearance	355 mm
ABS	No
Engine Type	Single Cylinder, 4-Stroke
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central double-cradle type 25CrMo4 steel
