KTM 500 EXC-F 2023 User Manual

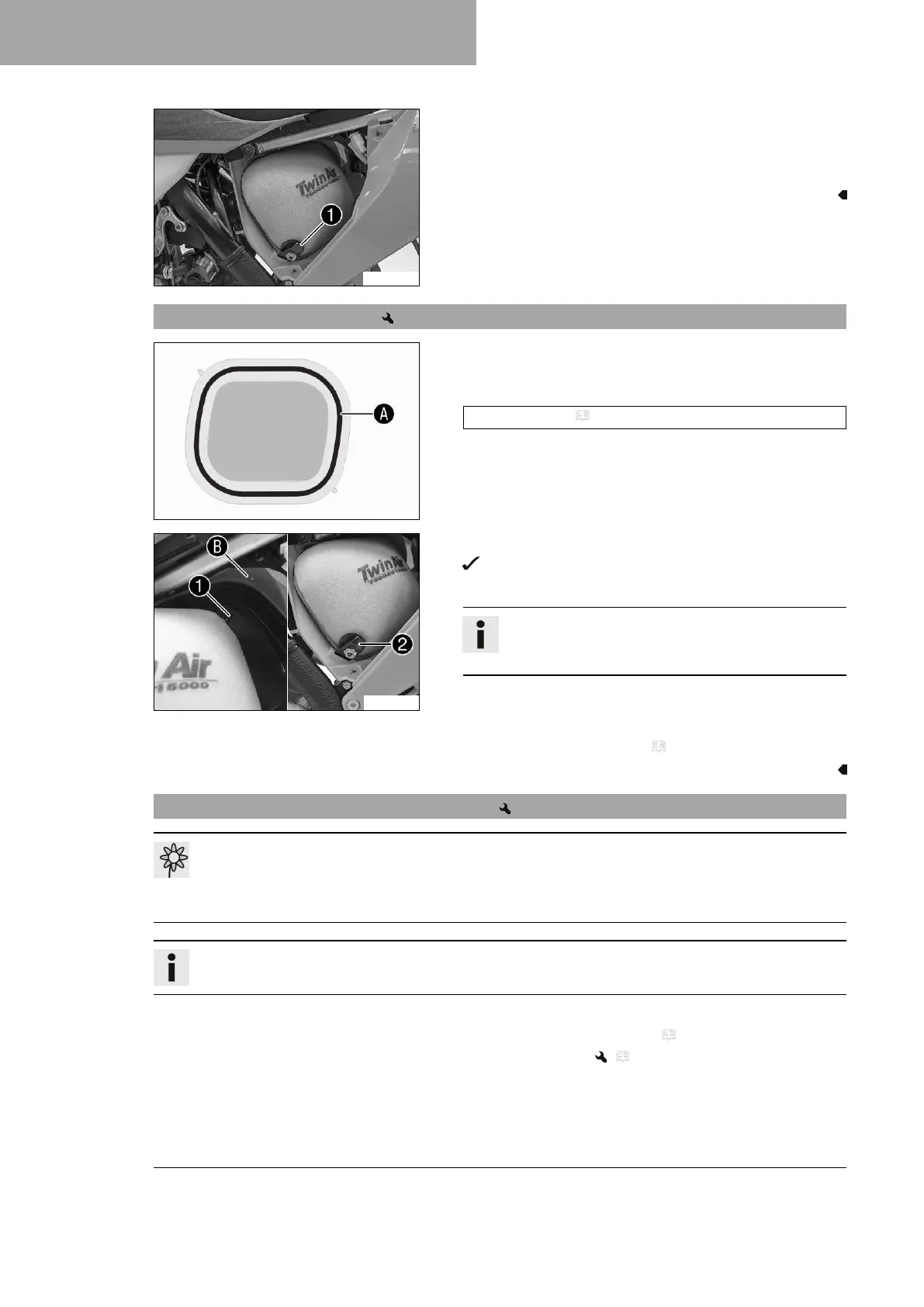

12 SERVICE WORK ON THE CHASSIS
78
K01338-10
Main work
–
Detach retaining tab
1
. Remove air filter with air filter sup-
port.
– Remove air filter from air filter support.
12.26 Installing the air filter
H02459-01
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in area
A
.
Long-life grease ( p. 158)
V01761-10
–
Insert air filter and position retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
–
Secure the bottom retaining pin with holding tab
2
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
– Install the air filter box cover. ( p. 77)
12.27 Cleaning the air filter and air filter box
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box cover. ( p. 76)
– Remove the air filter. ( p. 77)

KTM 500 EXC-F 2023 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Weight (without fuel)	106.5 kg
Seat Height	960 mm
Ground Clearance	355 mm
ABS	No
Engine Type	Single Cylinder, 4-Stroke
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central double-cradle type 25CrMo4 steel
