KTM 500 EXC-F 2023 User Manual

11 TUNING THE CHASSIS
58

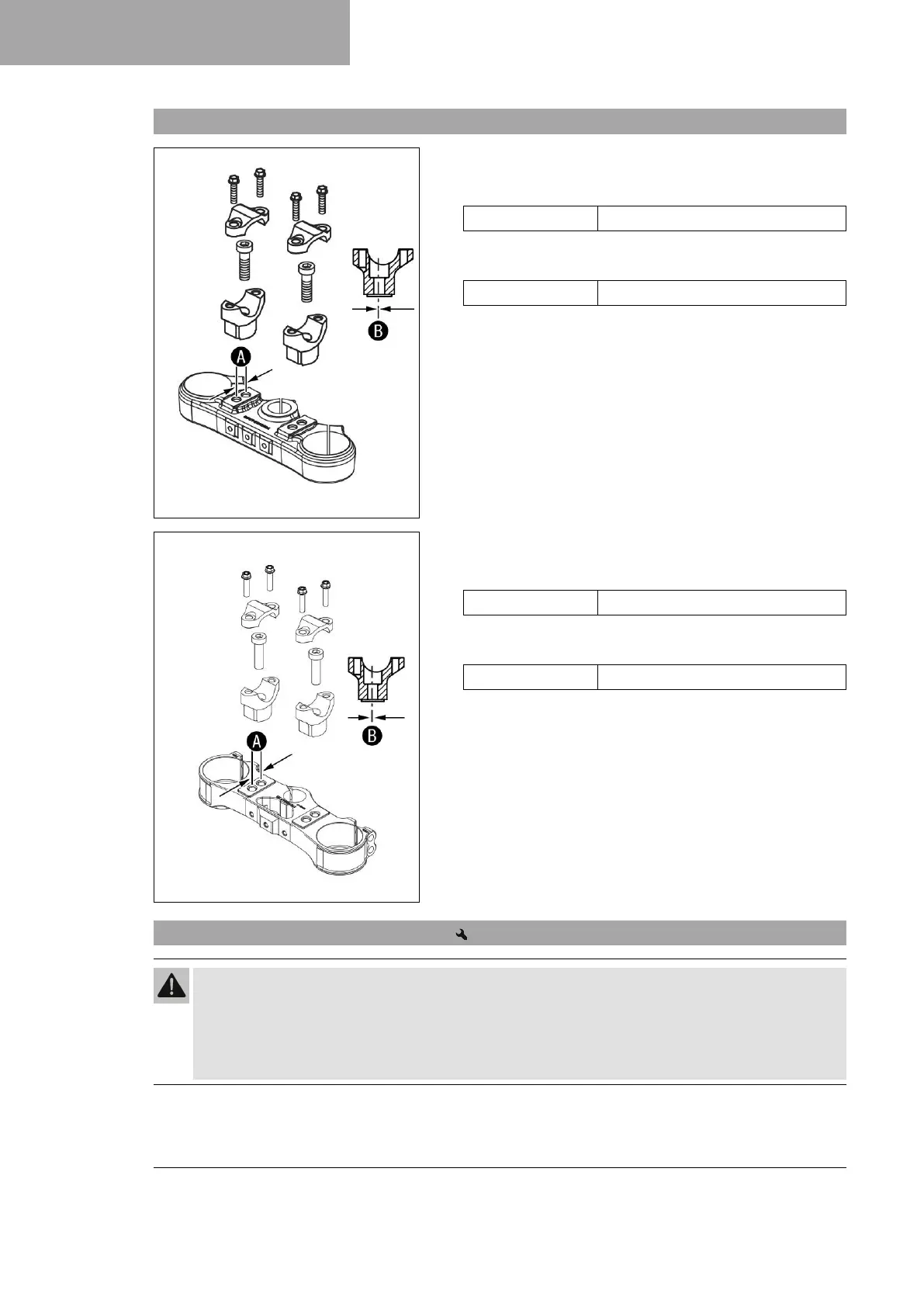

11.15 Handlebar position
M00993-10
(EXC-F US)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar holders can be mounted in four different posi-
tions.
M00987-10
(EXC-F SIX DAYS US)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar holders can be mounted in four different posi-
tions.
11.16 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
–
Change the handlebar if the handlebar is damaged or bent.

KTM 500 EXC-F 2023 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Weight (without fuel)	106.5 kg
Seat Height	960 mm
Ground Clearance	355 mm
ABS	No
Engine Type	Single Cylinder, 4-Stroke
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central double-cradle type 25CrMo4 steel
