KTM 500 EXC-F 2023 User Manual

ELECTRICAL SYSTEM 15
119
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 151)
Fuse (75011088005) ( p. 151)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 75)

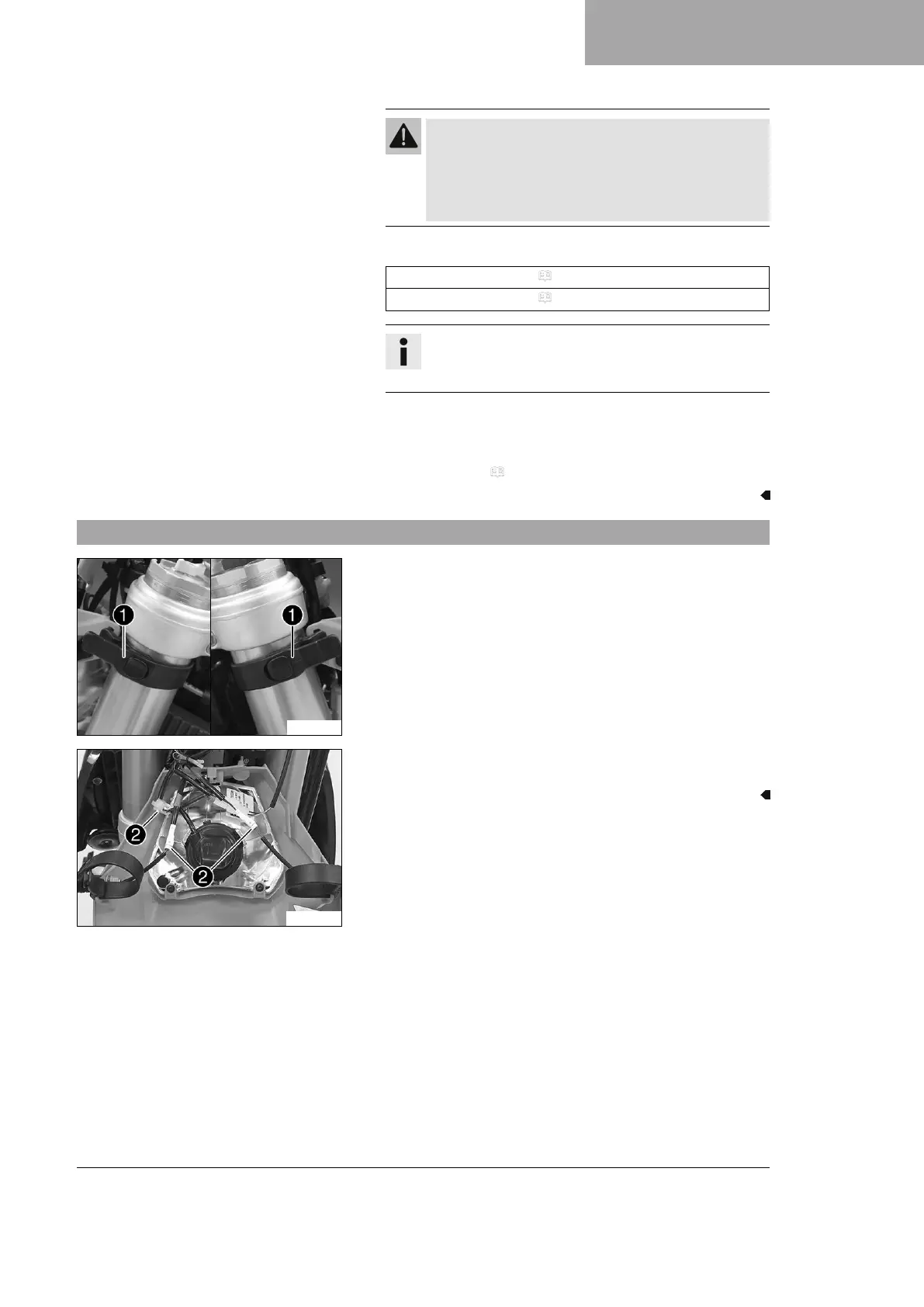

15.6 Removing the headlight mask with the headlight
V01782-10
– Detach the brake line and wiring harness from the headlight
mask.
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.
S01328-10
–
Detach plug-in connectors
2
and take off the headlight mask
with the headlight.

KTM 500 EXC-F 2023 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Weight (without fuel)	106.5 kg
Seat Height	960 mm
Ground Clearance	355 mm
ABS	No
Engine Type	Single Cylinder, 4-Stroke
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central double-cradle type 25CrMo4 steel
