ERGONOMICS 8
123

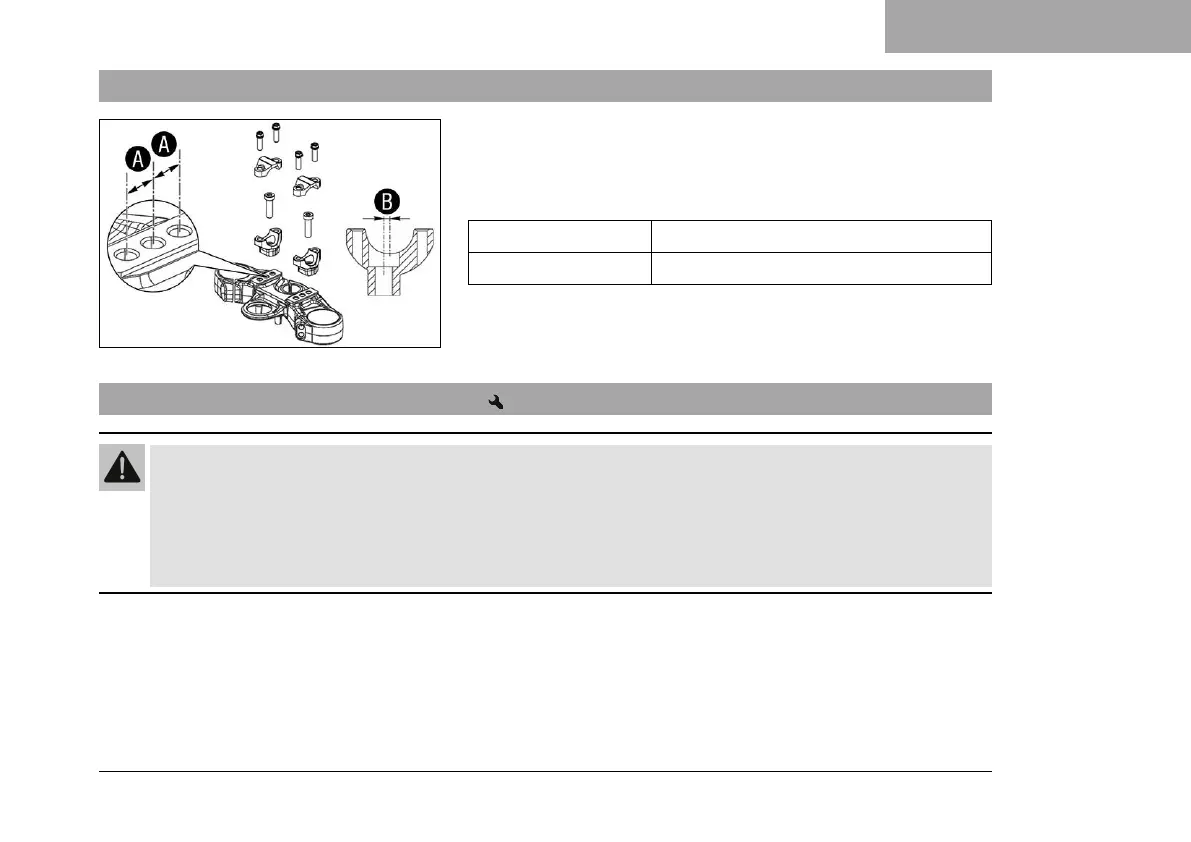

8.1 Handlebar position
F01906-10
On the upper triple clamp, there are three holes at a distance
of
A
to each other.
The holes on the handlebar support are placed at a distance of
B
from the center.
Hole distance
A
15 mm (0.59 in)
Hole distance
B
3.5 mm (0.138 in)
The handlebar can be mounted in six different positions. This
allows the handlebar to be mounted in the most comfortable posi-
tion for the rider.
8.2 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
