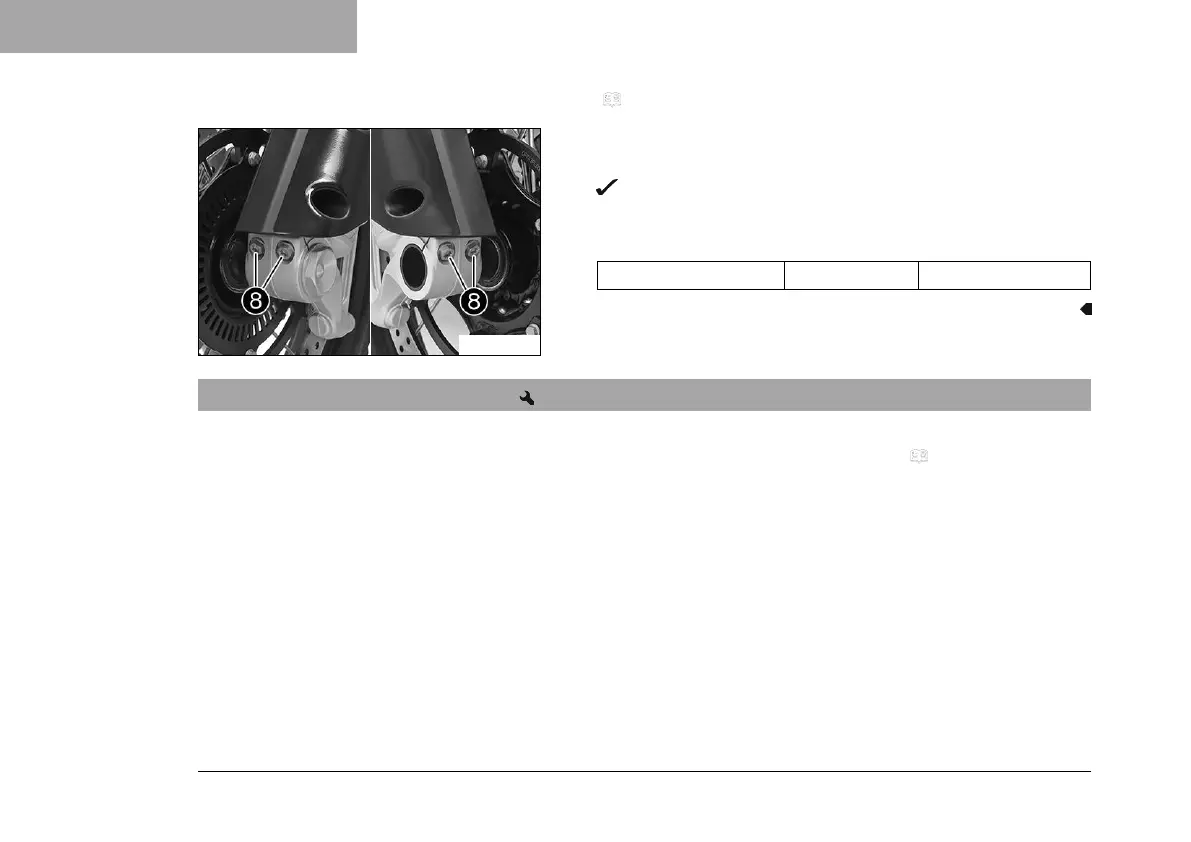

15 WHEELS, TIRES

246

– Remove the rear of the motorcycle from the lifting gear.

( p. 176)

F02067-11

– Operate the front brake and compress the fork a few times

firmly.

The fork legs straighten.

–

Tighten screws

Guideline

Screw, fork stub M8 15 Nm (11.1 lbf ft)

15.3 Removing the rear wheel

Preparatory work

– Raise motorcycle with rear lifting gear. ( p. 176)

Default Chapter5
- Table of Contents5
1 Means of Representation12
- Symbols Used12
- Formats Used13
2 Safety Advice14
- Use Definition - Intended Use14
- Misuse14
- Degrees of Risk and Symbols15
- Tampering Warning16
- Safe Operation16
- Protective Clothing18
- Work Rules18
- Environment19
- Owner's Manual19
3 Important Notes20
- Manufacturer and Implied Warranty20
- Fuel, Auxiliary Substances20
- Spare Parts, Accessories20
- Service21
- Figures21
- Customer Service21
4 View of Vehicle24
- View of Vehicle, Front Left (Example)24
- View of Vehicle, Rear Right (Example)26
5 Serial Numbers28
- Vehicle Identification Number28
- Type Label29
- Key Number30
- Engine Number30
- Fork Part Number31
- Shock Absorber Article Number31
- Steering Damper Article Number32
6 Controls 633
- Clutch Lever33
- Hand Brake Lever33
- Throttle Grip34
- Switches on the Left Side of the Handlebar34
- Combination Switch34
- Light Switch35
- Cruise Control System Tip Switch (Optional)36
- Menu Switch39
- Turn Signal Switch39
- Horn Button40
- Switches on the Right Side of the Handlebar41
- Emergency off Switch/Electric Starter Button41
- Ignition and Steering Lock42
- Locking the Steering42
- Unlocking the Steering43
- Socket for Electrical Accessories44
- Opening the Fuel Tank Filler Cap44
- Closing the Fuel Tank Filler Cap46
- Opening the Storage Compartment on the Left47
- Closing the Storage Compartment on the Left48
- Opening the Storage Compartment on the Right49
- Closing the Storage Compartment on the Right50
- Tool Set51
- Grab Handles51
- Luggage Rack Plate52
- Seat Lock53
- Passenger Foot Pegs53
- Shift Lever54
  - Foot Brake Lever55
  - Side Stand55
7 Combination Instrument 757
- Activation and Test57
- Day-Night Mode59
- Warnings60
- Ice Warning60
- Indicator Lamps62
- Display66
- RALLY Display68
- Speed69
- Shift Warning Light70
- Speedometer71
- Cruise Control Indicator (Optional)72
- Ride Display73
- ABS Display73
- MTC Display74
- Coolant Temperature Indicator74
- Fuel Level Display76
- Ambient Air Temperature Indicator77
- Time77
- Favorites Display78
- Quick Selector 1 Display78
- Quick Selector 2 Display79
- Navigation Display (Optional)79
- Menu80
- KTM MY RIDE (Optional)80
- Audio (Optional)81
- Navigation (Optional)83
- Navigation Setup (Optional)84
- Volume (Optional)85
- Pairing (Optional)87
- Phone (Optional)88
- Headset (Optional)90
- Telephony (Optional)93
- Trips/Data94
- General Info95
- Trip 196
- Trip 297
- Tpms98
- Warning99
- Ride Mode100
- Ride Mode101
- Rally102
- Throttle Response103
- Leave Rally104
- Motorcycle105
- Mtc105
- Abs106
- Quick Shift+ (Optional)107
  - Settings108
  - Favorites108
  - Quick Selector 1109
  - Quick Selector 2110
  - Bluetooth (Optional)111
  - Display Theme112
  - Shift Light113
  - Lights up113
  - Flashes114
  - Shift Light115
  - Setting the Time and Date115
  - Drl118
  - Units120
  - Distance120
  - Temperature121
  - Fuel Cons121
  - Language122
  - Service123
  - Extra Functions124
8 Ergonomics 8125
- Handlebar Position125
- Adjusting the Handlebar Position125
- Adjusting the Windshield128
  - Clutch Lever130
  - Hand Brake Lever131
- Adjusting Foot Brake Lever Stub132
- Adjusting the Basic Position of the 11.2 Foot Brake Lever133
- Checking the Basic Position of the Shift Lever135
- Adjusting the Basic Position of the Shift Lever136
9 Preparing for Use138
- Advice on Preparing for First Use138
- Running in the Engine140
- Loading the Vehicle141
10 Riding Instructions144
- Checks and Maintenance Measures 12.6 When Preparing for Use144
- Starting the Vehicle145
- Starting off146
- Quickshifter + (Optional)147
- Shifting, Riding148
- Applying the Brakes154
- Stopping, Parking157
- Transporting159
- Refueling160
11 Service Schedule 11163
- Additional Information163
  - Required Work163
- Recommended Work166
12 Tuning the Chassis 12167
- Fork/Shock Absorber167
- Adjusting the Compression Damping of the Fork167
- Adjusting the Rebound Damping of the Fork169
- Adjusting the Spring Pretension of the Fork170
- Compression Damping of the Shock Absorber172
  - Adjusting the Low-Speed Compression Damping of the Shock Absorber172
- Adjusting the High-Speed Compression Damping of the Shock Absorber174
- Adjusting the Rebound Damping of the Shock Absorber175
- Adjusting the Spring Preload of the Shock Absorber176
13 Service Work on the Chassis178
- Raising the Motorcycle with Rear Lifting Gear178
- Removing the Rear of the Motorcycle from the Lifting Gear178
- Lifting the Motorcycle with the Front Lifting Gear179
- Taking the Motorcycle off the Front Lifting Gear180
- Removing the Seat181
- Mounting the Seat182
- Checking for Chain Dirt182
- Cleaning the Chain183
- Checking the Chain Tension185
- Adjusting the Chain Tension187
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide189
- Removing the Left Side Cover193
- Installing the Left Side Cover194
- Removing the Right Side Cover195
- Installing the Right Side Cover196
- Removing the Battery Cover197
- Installing the Battery Cover198
- Removing Left Fuel Tank Spoiler199
- Installing the Left Fuel Tank Spoiler202
- Removing Right Fuel Tank Spoiler204
- Installing the Right Fuel Tank Spoiler207
- Removing the Front Fender209
- Installing the Front Fender210
- Removing Fork Protector211
- Installing the Fork Protector211
- Cleaning the Dust Boots of the Fork Legs212
- Removing the Windshield214
- Installing the Windshield215
- Removing Left Fuel Tank Cover216
- Installing the Left Fuel Tank Cover217
- Removing Right Fuel Tank Cover219
- Installing the Right Fuel Tank Cover220
- Removing Engine Guard221
- Installing the Engine Guard223
14 Brake System226
- Anti-Lock Braking System (ABS)226
- Checking Brake Discs229
- Checking the Front Brake Fluid Level230
- Adding the Front Brake Fluid231
- Checking the Front Brake Linings234
- Checking the Free Travel of the Foot Brake Lever235
- Checking the Rear Brake Fluid Level236
- Adding Rear Brake Fluid237
- Checking the Rear Brake Linings239
15 Wheels, Tires 15241
- Removing the Front Wheel241
- Installing the Front Wheel244
- Removing the Rear Wheel248
- Installing the Rear Wheel251
- Checking the Rear Hub Damping Rubber Pieces254
- Checking the Tire Condition256
- Checking Tire Pressure258
- Checking Spoke Tension260
- Tubeless Tire System261
- Using Tire Repair Spray262
16 Electrical System 16263
- Daytime Running Light (DRL)263
- Removing the 12-V Battery264
- Installing the 12-V Battery268
- Charging the 12-V Battery271
- Changing the Main Fuse275
- Changing the ABS Fuses277
- Changing the Fuses of Individual Power Consumers279
- Checking the Headlight Setting282
- Adjusting the Headlight Range283
- Diagnostics Connector286
- Front ACC1 and ACC2286
- ACC1 and ACC2 Rear287
17 Cooling System288
- Checking the Coolant Level in the Compensating Tank289
- Correcting the Coolant Level in the Compensating Tank290
18 Tuning the Engine 18293
- Ride Mode293
- Motorcycle Traction Control (MTC)294
- Slip Adjustment295
- Throttle Response295
19 Maintenance Work on the Engine 19297
- Checking the Engine Oil Level297
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens298
- Adding Engine Oil302
- Checking the Free Travel of the Clutch Lever304
- Setting the Free Travel of the Clutch Lever305
20 Cleaning, Care306
- Cleaning the Motorcycle306
- Checks and Maintenance Steps for Winter Operation309
21 Storage 21311
- Preparing for Use after Storage312
22 Troubleshooting 22313
23 Technical Data 23317
- Engine317
- Engine Tightening Torques319
- Capacities325
- Engine Oil325
- Coolant325
- Fuel325
- Chassis326
- Electrical System328
- Tires329
- Fork329
- Shock Absorber330
- Chassis Tightening Torques332
24 Declarations of Conformity 24339
- Country-Specific Declarations of Conformity340
25 Substances 25341
26 Auxiliary Substances344
27 Standards346
28 Index of Special Terms 28347
29 List of Abbreviations348
30 List of Symbols 30349
- Red Symbols349
- Yellow and Orange Symbols349
- Green and Blue Symbols350
- Index351
