19 MAINTENANCE WORK ON THE ENGINE
302
19.4 Checking the free travel of the clutch lever
Note
Clutch damage If there is no free travel by the clutch lever, the clutch will begin to slip.
– Check the free travel of the clutch lever each time before using the motorcycle.
– Adjust the free travel of the clutch lever when necessary in accordance with the specification.

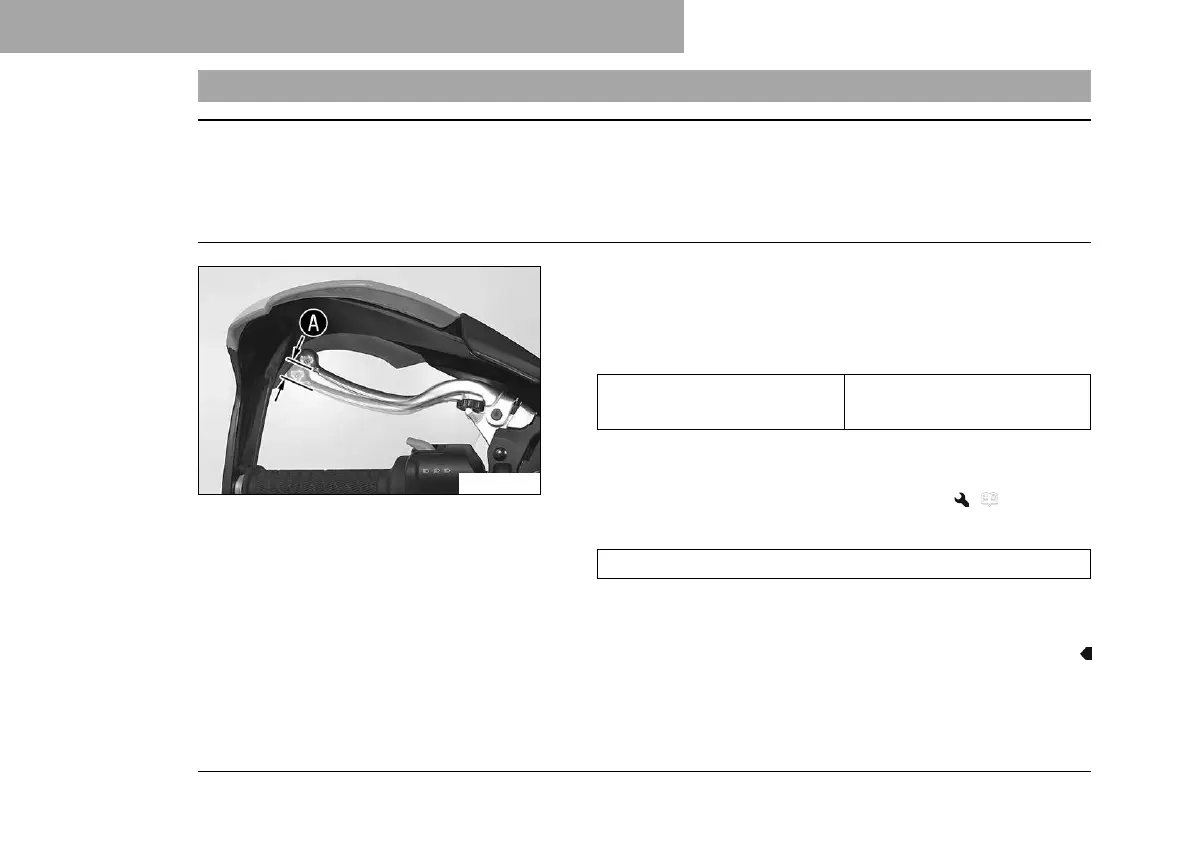

F02090-10
– Check the clutch lever for smooth operation.
– Move the handlebar to the straight-ahead position.
– Pull the clutch lever until resistance is perceptible, and deter-
mine the free travel
A
.
Free travel
A
of clutch
lever
5 mm (0.2 in)
» If the free travel of the clutch lever does not meet specifi-
cations:
– Set the free travel of the clutch lever. ( p. 303)
– Move the handlebar to and fro over the entire steering range.
The free travel of the clutch lever must not change.
» If the free travel of the clutch lever changes:
– Check the routing of the clutch cable.
