8 ERGONOMICS

130

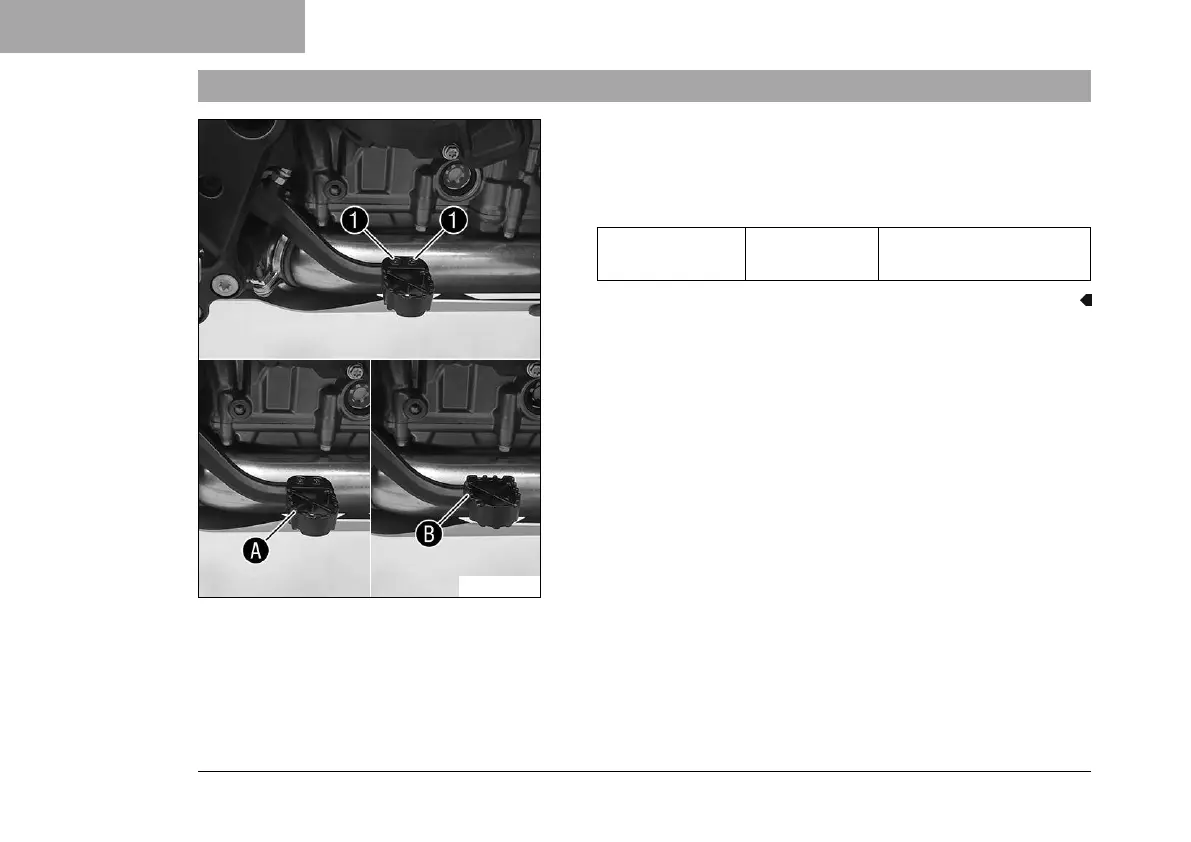

8.6 Adjusting foot brake lever stub

F01946-10

–

Remove screws

with the foot brake lever stub.

–

Move the foot brake lever stub into desired position

Mount and tighten screws

Guideline

Screw, foot

brake lever stub

M5 5 Nm (3.7 lbf ft)

Loctite

243™

Default Chapter5
