CONTROLS 6

45

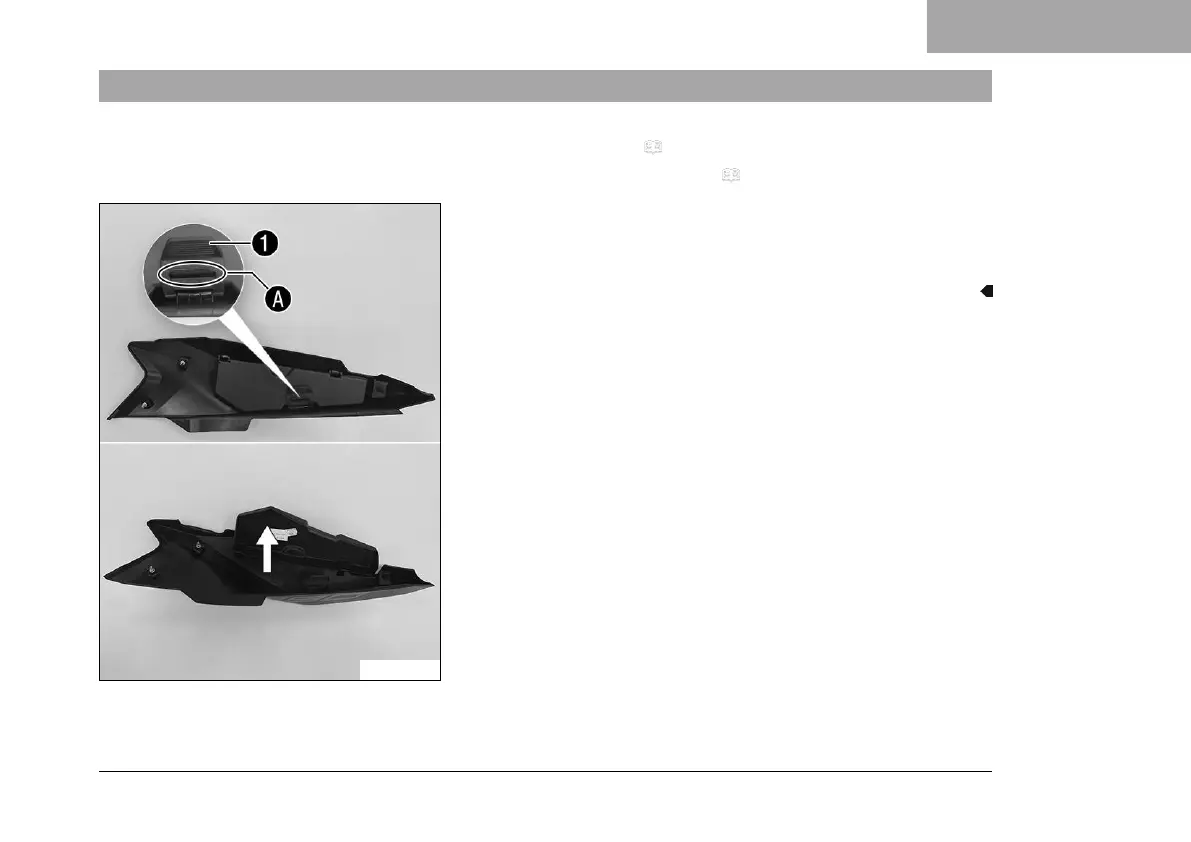

6.12 Opening the storage compartment on the left

Preparatory work

– Remove the seat. ( p. 179)

– Remove the left side cover. ( p. 191)

F02012-10

Main work

–

Lift the elastic fastener

1

and detach in area

A

.

– Open storage compartment.
