SERVICE WORK ON THE CHASSIS 13
209

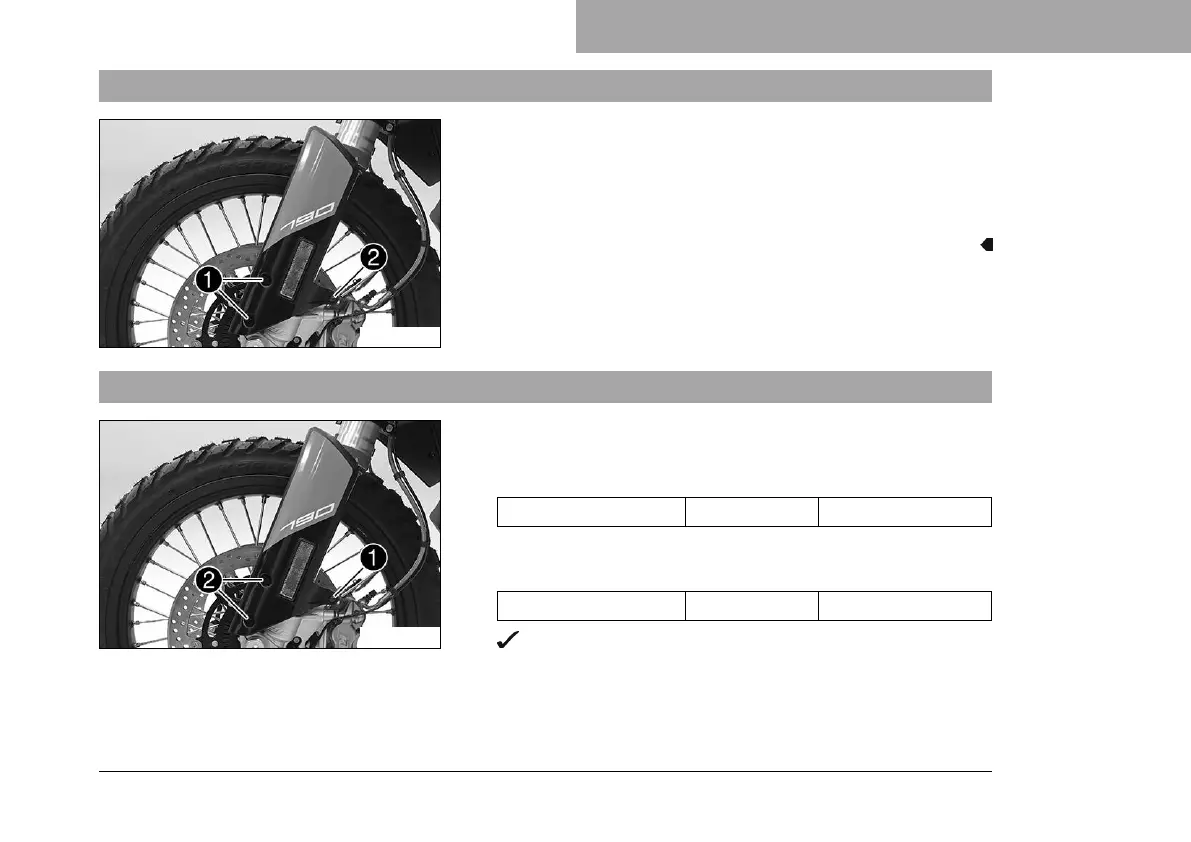

13.24 Removing fork protector
F02051-10
–
Remove screws
1
.
–
Remove screw
2
.
– Take off the fork protector at the front.
– Repeat these steps on the opposite side.
13.25 Installing the fork protector
F02051-11
–
Position the fork protector. Mount screw
1
, but do not
tighten yet.
Guideline
Screw, fork protector M5x12 5 Nm (3.7 lbf ft)
–
Mount screws
2
, but do not tighten yet.
Guideline
Screw, fork protector M5x17 5 Nm (3.7 lbf ft)
The fork protector is evenly aligned to the front.
– Tighten all screws of the fork protector.
