COMBINATION INSTRUMENT 7
77

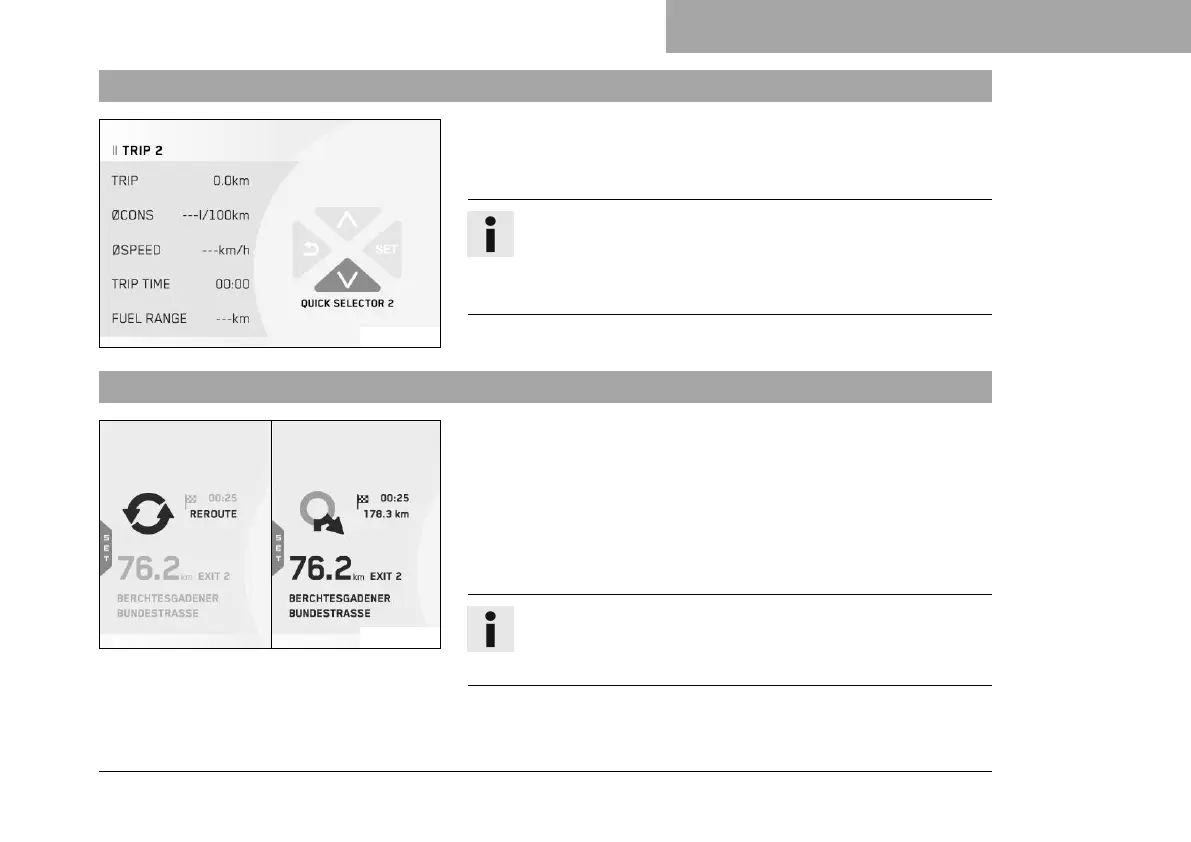

7.22 Quick Selector 2 display
F01782-01
When the menu is closed, the Quick Selector 2 display is opened
by pressing the DOWN button.
Press the BACK button to close the Quick Selector 2 display.
Info
The Quick Selector 2 display can be configured in
the Quick Selector 2 submenu. Any information can be
selected.
7.23 Navigation display (optional)
F01783-01
The Navigation display appears when the navigation function is
active.
In the Navigation display, the direction arrow, the distance from
the destination, the estimated arrival time of the cellphone, the
distance to the next waypoint and the street name are displayed.
The Navigation display can be configured in the Navigation sub-
menu.
Info
If the visual navigation is activated, the Favorites display is
hidden.
