9. FINAL REDUCTION
9-5
GRAND DINK 125/150

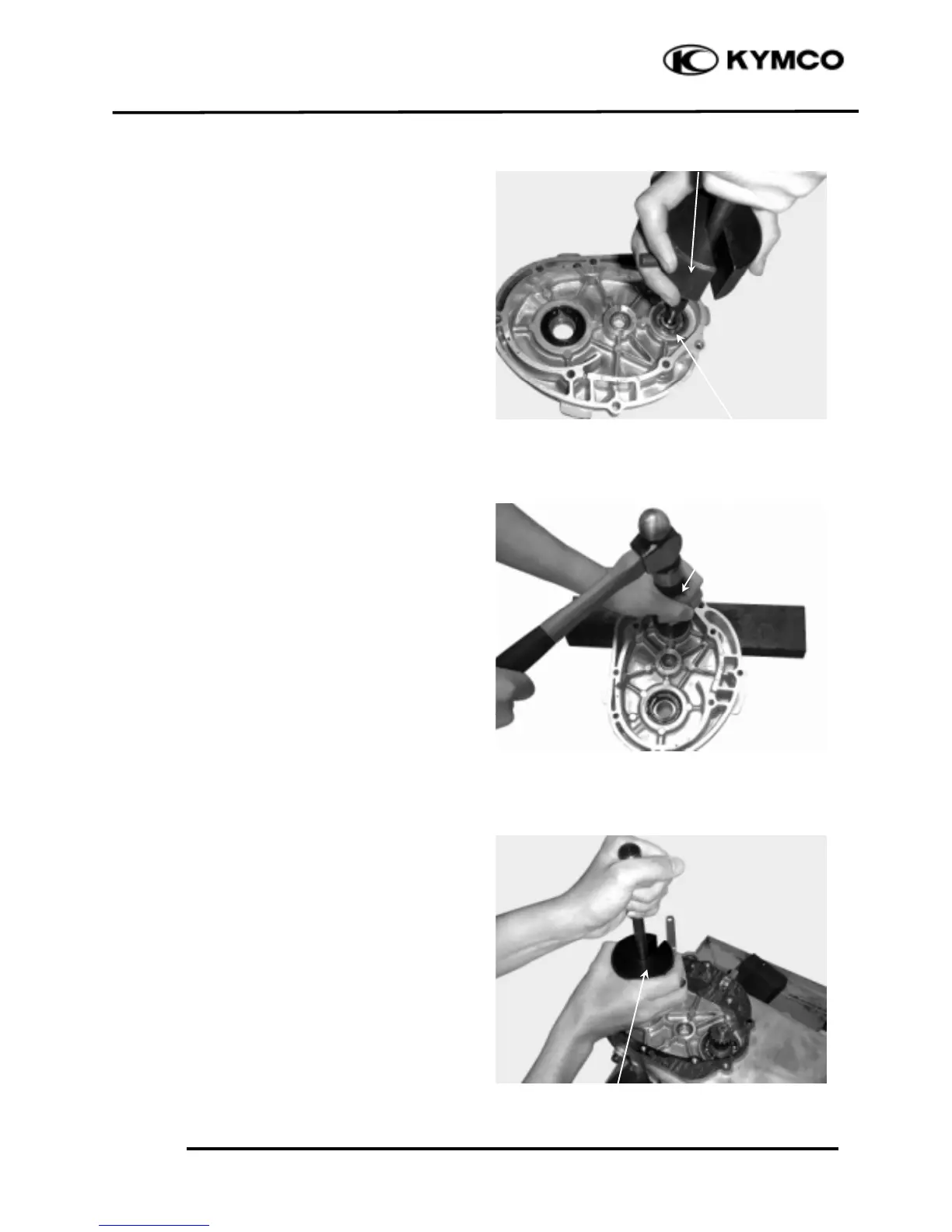

BEARING REPLACEMENT
(TRANSMISSION CASE COVER)
Remove the transmission case cover
bearings using the bearing remover.
Remove the final shaft oil seal.
Drive new bearings into the transmission
case cover.
BEARING REPLACEMENT (LEFT
CRANKCASE COVER)
Remove the drive shaft.
Remove the drive shaft oil seal.
Remove the left crankcase bearings using
the bearing remover.
Drive Shaft Bearing
Bearing Remover, 12mm
Pilot, 12mm
Bearing Remover, 15mm
