2PX/2PY
1-5-40
(3) Detaching and refitting the paper feed drive unit
Procedure
1. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
2. Remove the left rear cover, left cover
and left lower cover (see page 1-5-9).
3. Remove connector (YC3) from engine
PWB.

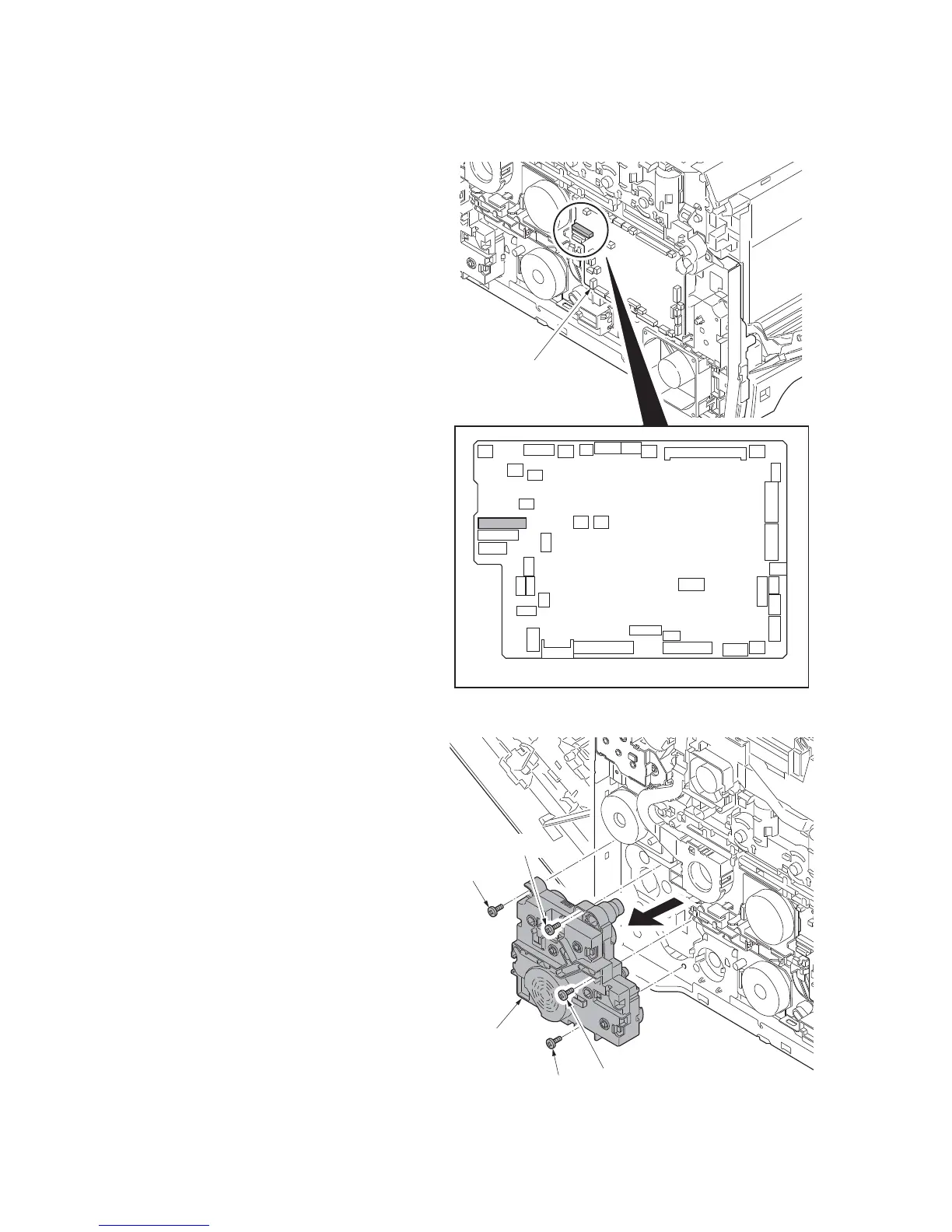

Figure 1-5-60
4. Remove four screws and then remove
the paper feed drive unit.
5. Check or replace the paper feed drive
unit and refit all the removed parts.
Figure 1-5-61
YC3
Engine PWB
Engine PWB
Screw
Screw
Screw
Screw
Paper feed
drive unit
