Kyocera ECOSYS M6026cidn User Manual

2PX/2PY
2-1-21
2-1-7 Eject/Feedshift section
The paper eject/feedshift section consists of the conveying path which sends the paper that has passed the
fuser section to the inner tray or the duplex conveying section.

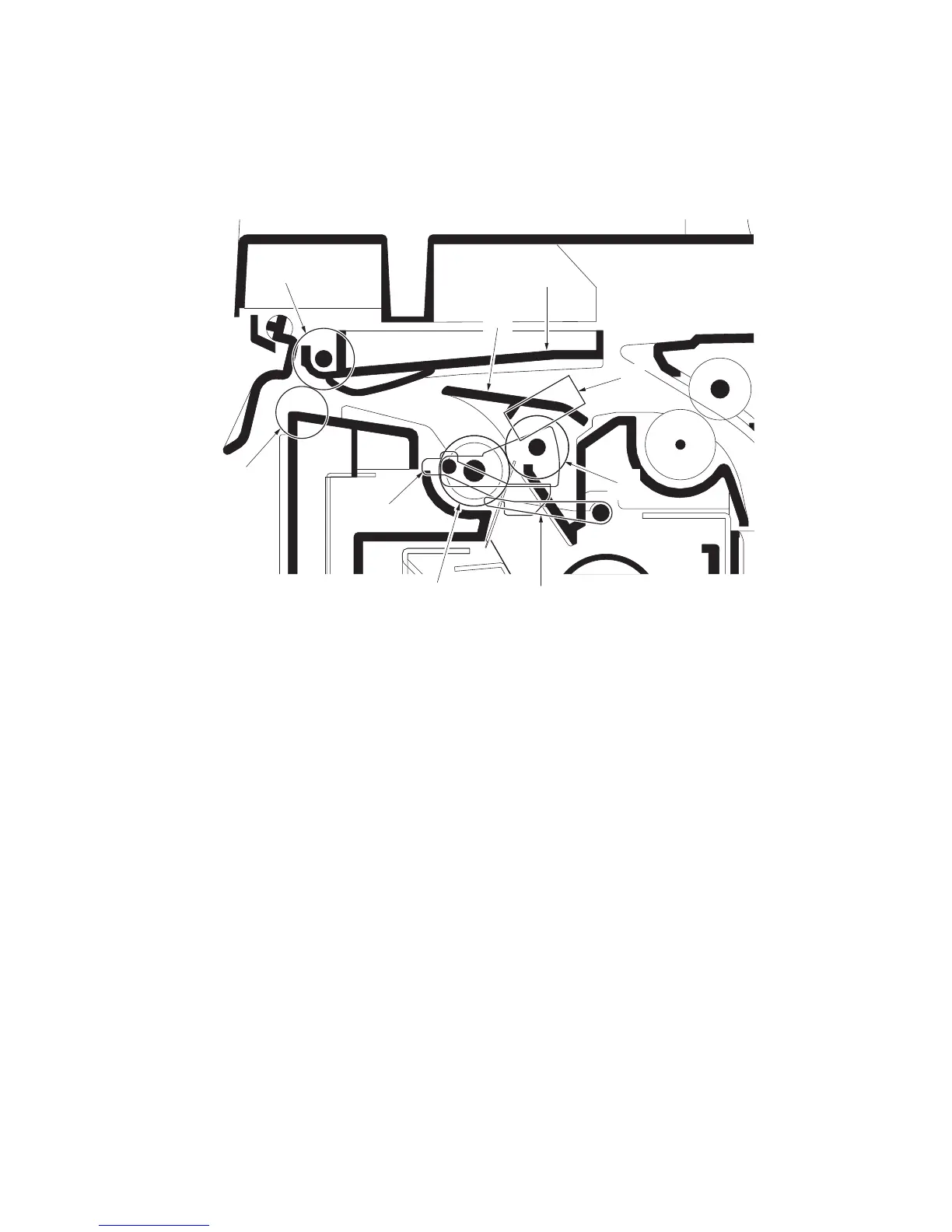

Figure 2-1-22 Eject/Feed shift section
2
1
7
8
3
4
6
5
9
1. Eject roller
2. Eject pulley
3. Eject roller
4. Eject pulley
5. Upper eject guide
6. Change guide
7. Eject sensor (ES)
8. Actuator (eject sensor)
9. Actuator (eject sensor)
