Kyocera ECOSYS M6026cidn User Manual

2PX/2PY
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP
tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed
paper to the transfer/separation section.
(1) Cassette paper feed section
The cassette can contain 250 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.

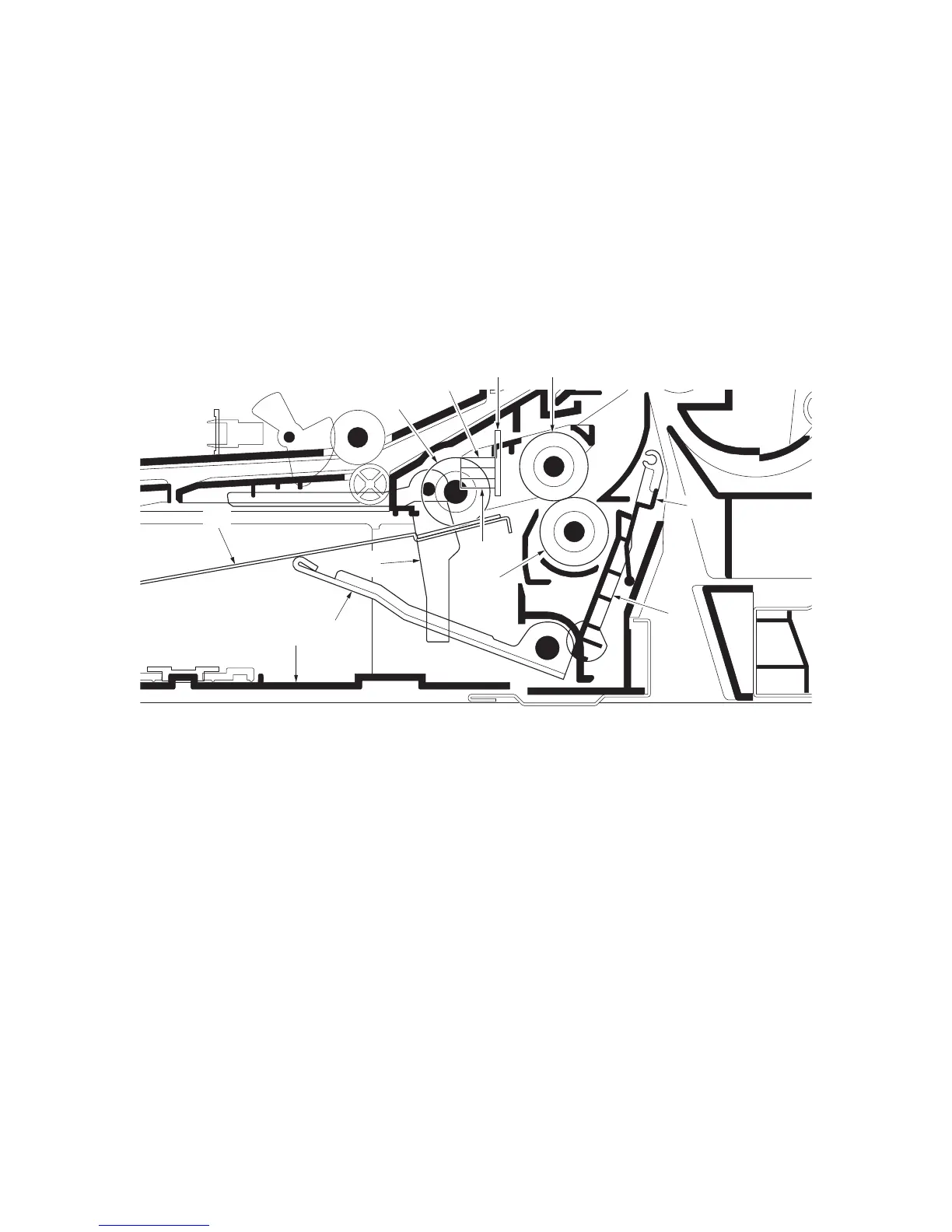

Figure 2-1-1 Cassette paper feed section
1
10
7
11
3
5
4
9
12
2
8
6
1. Pickup roller
2. Paper feed roller
3. Retard roller
4. Retard cover
5. Retard lever
6. Cassette base
7. Bottom plate
8. Lift work plate
9. Paper sensor (PS)
10. Actuator (paper sensor)
11. Lift sensor (LS)
12. Cassette PWB (CPWB)
